Hot-selling and scarce 74LVT2244MTCX Low Voltage Octal Buffer/Line Driver IC 20-TSSOP spot stock

Product Descriptions

The  LVT2244 and  LVTH2244 are  octal  buffers and  linedrivers designed to be employed as memory address drivers, clock drivers and bus oriented transmitters or receiverswhich provides improved PC board density. The equivalent25Ω-Series  resistors  helps  reduce output overshoot andundershoot .

The LVTH2244 data inputs include bushold, eliminating theneed for external pull-up resistors to hold unused inputs .

These octal buffers and line drivers are designed for lowvoltage (3.3V) _V CC applications, but with the capability toprovide a TTL interface to a 5V environment . The LVT2244and LVTH2244 are fabricated with an advanced BiCMOStechnology to achieve high speed operation similar to 5VABT while maintaining low power dissipation .

Product Features

■ Input and output interface capability to systems at5V V CC

■ Equivalent 25:-Series resistors on outputs

■ Bushold data inputs eliminate the need for external pull-up resistors to hold unused inputs (74LVTH2244), also available without bushold feature (74LVT2244).

■ Live insertion/extraction permitted

■ Power  Up/Down  high  impedance  provides  glitch-free bus loading

■ Outputs source/sink  12 mA/ 12 mA

■ Latch-up performance exceeds 500 mA

■ ESD performance:

Human-body model ＞2000V

Machine model ＞200V

Charged-device model ＞1000V

Product Specifications

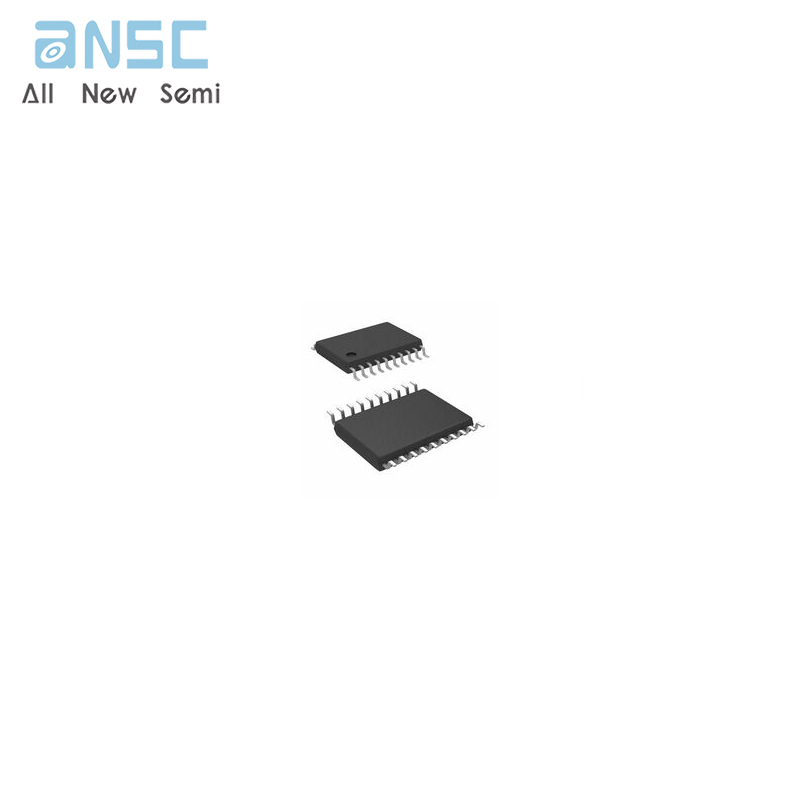

Product Photos

For more product information, please download the PDF
