Hot sale original MC10H210L Logic IC GATE OR 2CH 3-INP 16CDIP OR Gate IC 2 Channel 3 Outputs 16-CDIP Through Hole
Manufacturer Product Number
MC10H210L
Description
MC10H210L Logic IC GATE OR 2CH 3-INP 16CDIP OR Gate IC 2 Channel 3 Outputs 16-CDIP Through Hole
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| The MC10H210 is designed to drive up to six transmission lines simultan– eously. The multiple outputs of this device also allow the wire “OR”–ing of several levels of gating for minimization of gate and package count. The ability to control three parallel lines with minimum propagation delay from a single point makes the MC10H210 particularly useful in clock distribution applications where minimum clock skew is desired. • Propagation Delay Average, 1.0 ns Typical • Power Dissipation, 160 mW Typical • Improved Noise Margin 150 mV (Over Operating Voltage and Temperature Range) • Voltage Compensated • MECL 10K–Compatible |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC - MC10H210L |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | Original |
| Series | 10H |
| Packaging | Tube |
| Part Status | Obsolete |
| Logic Type | OR Gate |
| Number of Circuits | 2 |
| Number of Inputs | 3 |
| Features | 3 Outputs |
| Voltage - Supply | -4.94V ~ -5.46V |
| Current - Output High, Low | 50mA, 50mA |
| Input Logic Level - Low | -1.48V |
| Input Logic Level - High | -1.13V |
| Max Propagation Delay @ V, Max CL | 1.55ns @ -5.2V, - |
| Operating Temperature | 0°C ~ 75°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 16-CDIP |
| Package / Case | 16-CDIP (0.300", 7.62mm) |
| Base Product Number | MC10H210 |

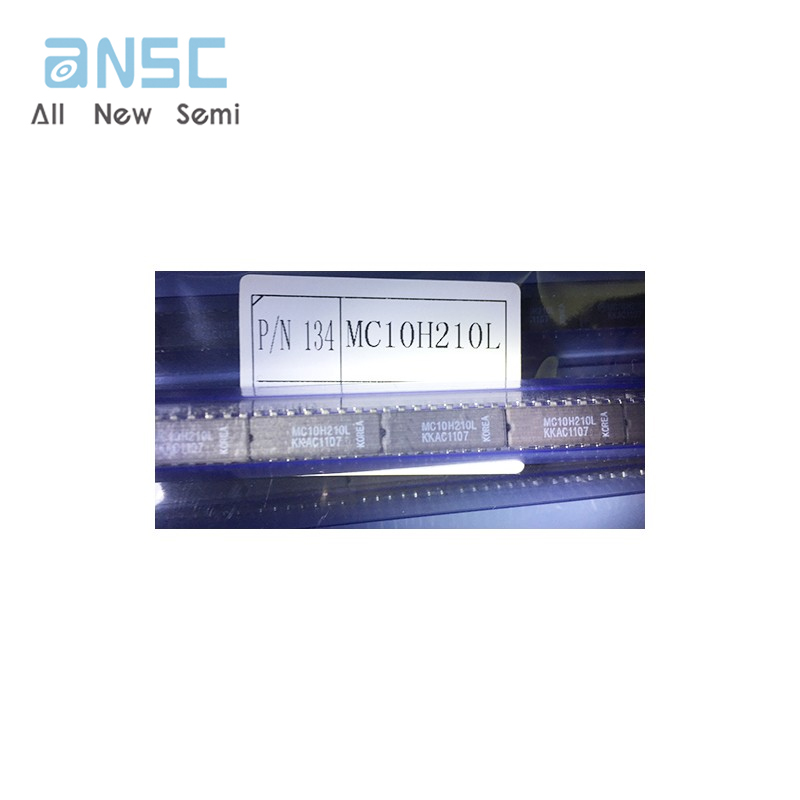

Actual image of the product

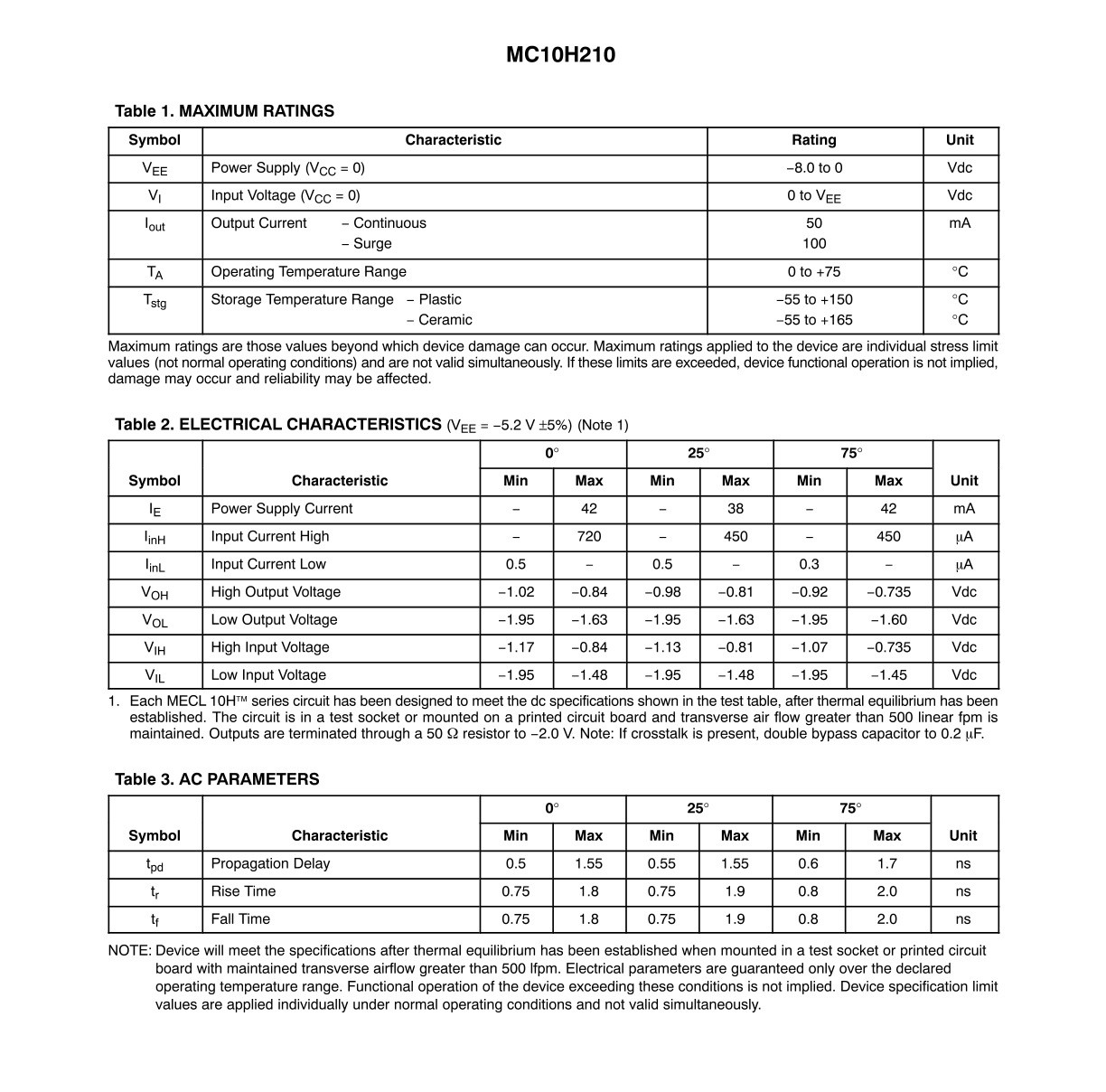

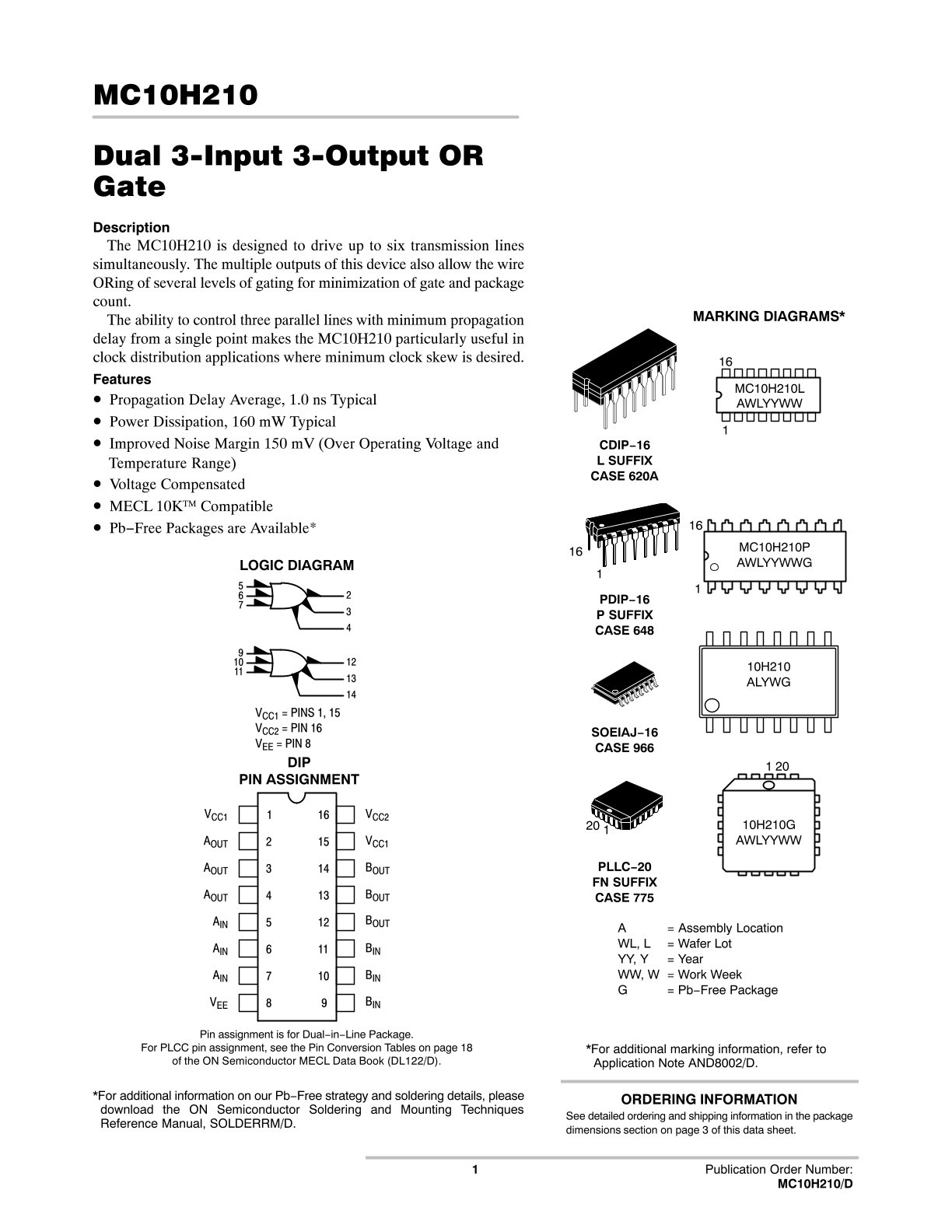

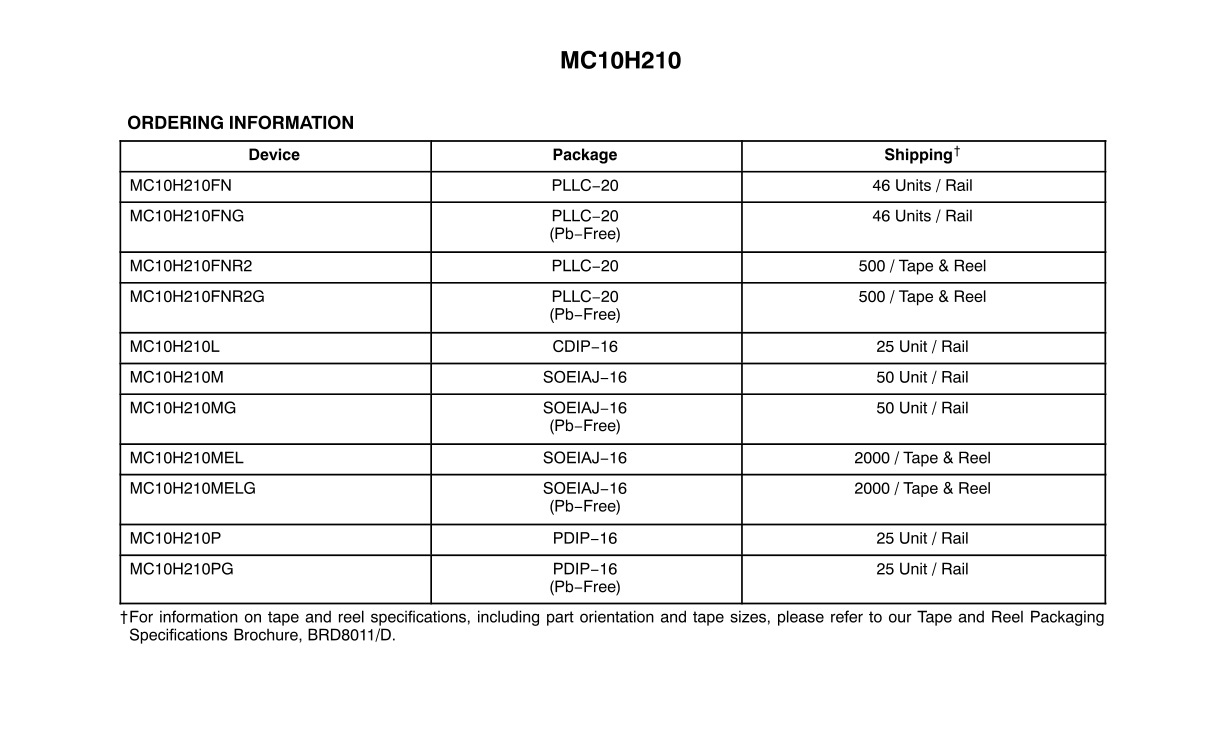

Product datasheet
