Hot-selling and scarce PAL20R4ANC Progammable Array Logic IC DIP24 spot stock

Product Descriptions

These programmable array logic devices feature high speed and functional equivalency when compared with currently available devices. These IMPACT™ circuits combine the latest Advanced Low-Power Schottky technology with proven titanium-tungsten fuses to provide reliable, high-performance substitutes for conventional TTL logic. Their easy programmability allows for quick design of custom functions and typically results in a more compact circuit board. In addition, chip carriers are available for futher reduction in board space.

Extra circuitry has been provided to allow loading of each register asynchronously to either a high or low state. This feature simplifies testing because the registers can be set to an initial state prior to executing the test sequence.

The TIBPAL20’ C series is characterized from 0°C to 75°C. The TIBPAL20’ M series is characterized for operation over the full military temperature range of −55°C to 125°C.

Product Features

• High-Performance: fmax (w/o feedback)

TIBPAL20R’ -15C Series . . . 45 MHz

TIBPAL20R’ -20M Series . . . 41.6 MHz

• High-Performance . . . 45 MHz Min

• Reduced ICC of 180 mA Max

• Functionally Equivalent, but Faster Than

PAL20L8, PAL20R4, PAL20R6, PAL20R8

• Power-Up Clear on Registered Devices (All Register Outputs are Set Low, but Voltage

Levels at the Output Pins Go High)

• Preload Capability on Output Registers Simplifies Testing

• Package Options Include Both Plastic and Ceramic Chip Carriers in Addition to Plastic

and Ceramic DIPs

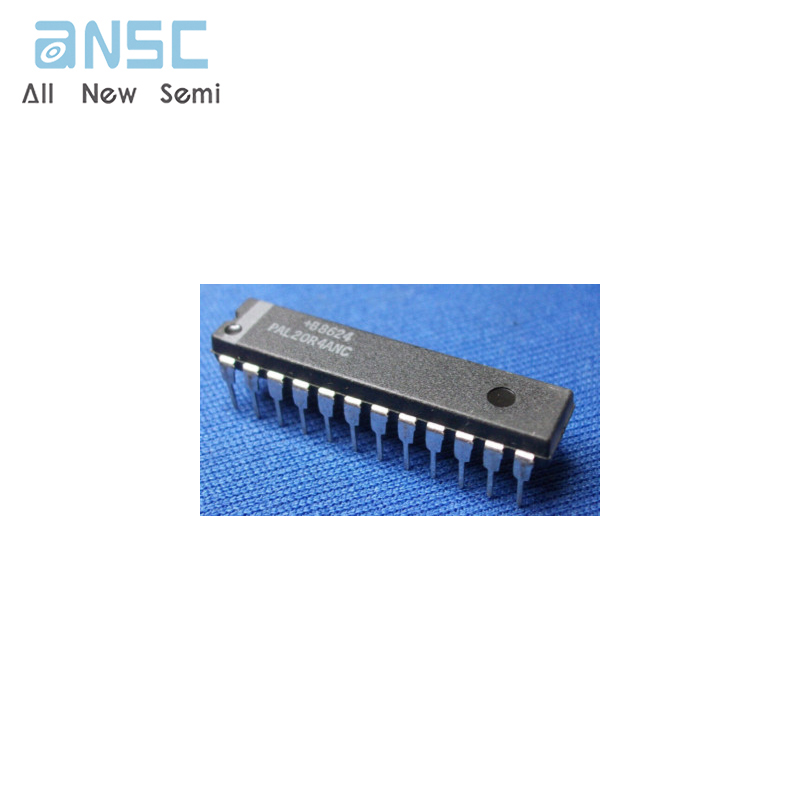

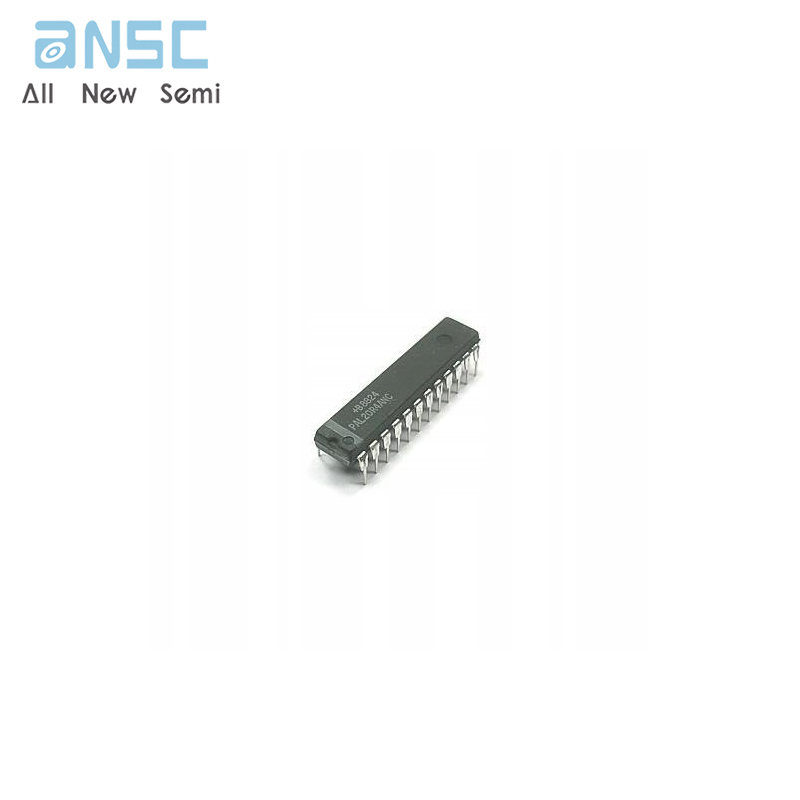

Product Photos

​

For more product information, please download the PDF
