Hot-selling and scarce MM74HC04N Hex Inverter DIP14 spot stock

Product Descriptions

The MM74HC04 inverters utilize advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits.

The MM74HC04 is a triple buffered inverter. It has high noise immunity and the ability to drive 10 LS-TTL loads. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.

Product Features

■ Typical propagation delay: 8ns

■ Fan out of 10 LS-TTL loads

■ Quiescent power consumption: 10µW maximum at room temperature

■ Low input current: 1µA maximum

Product Specification

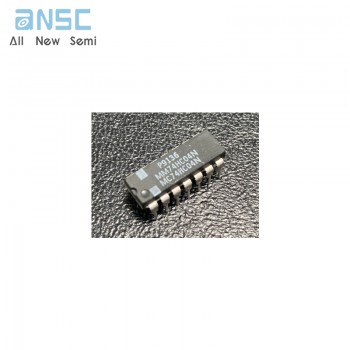

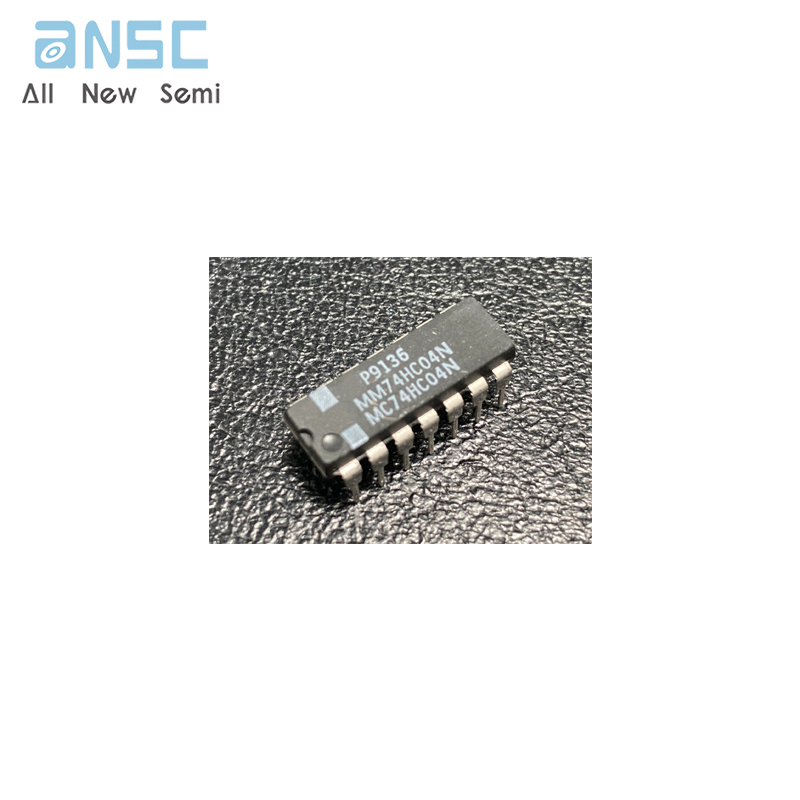

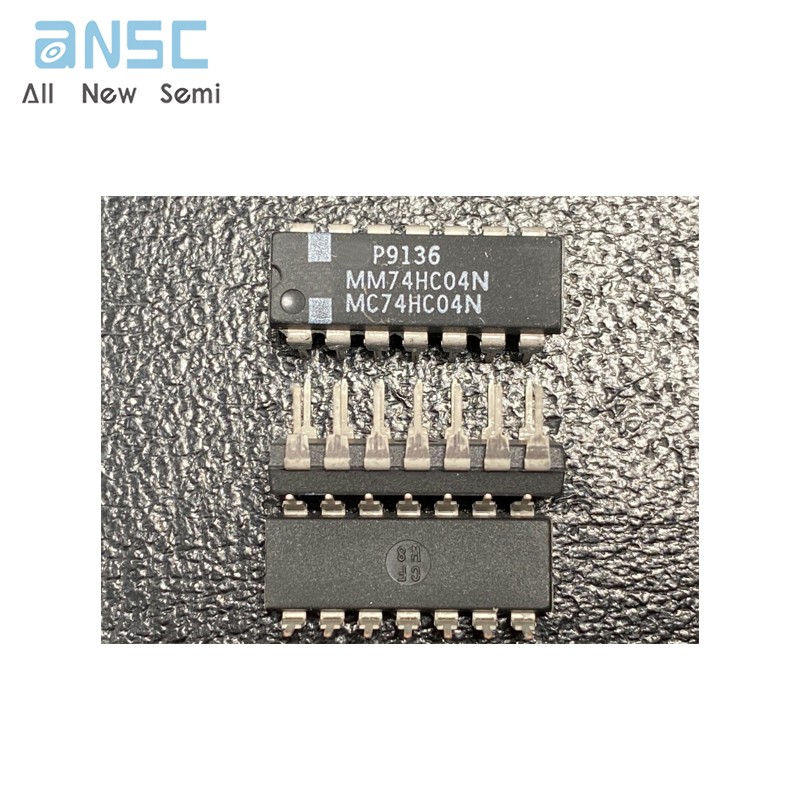

Product Photos

For more product information, please download the PDF
