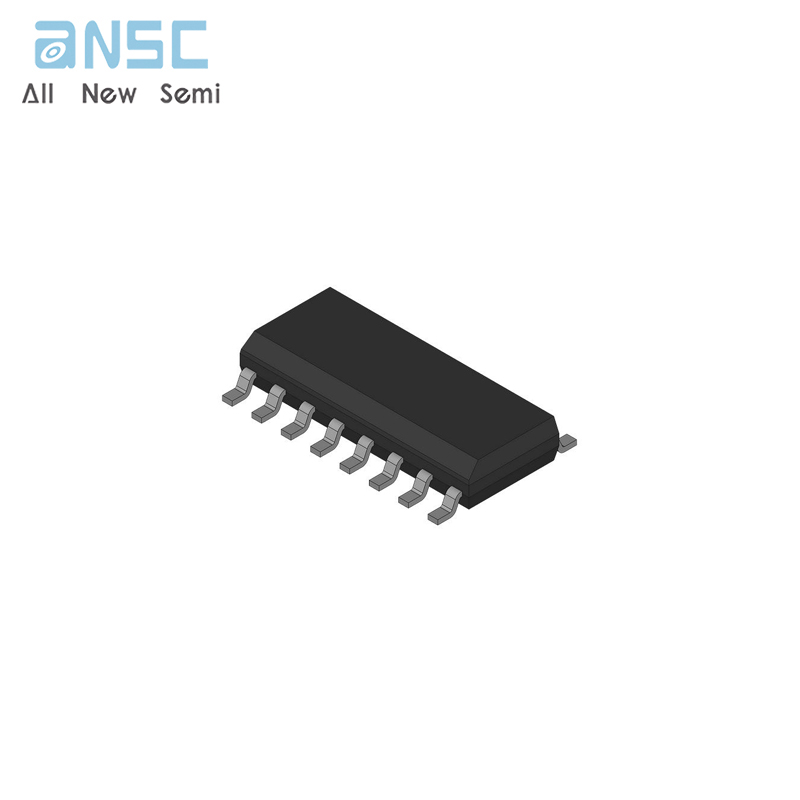

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
CD74AC193M Presettable Synchronous 4-Bit Binary Up/Down Counter with Reset SOP16 spot stock
Manufacturer Product Number
CD74AC193M
Description
CD74AC193M Up/Down Counter with Reset SOP16 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
Exceeds 2-kV ESD Protection MIL-STD-883,Method 3015
SCR-Latchup-resistant CMOS process and circuit design
Speed of bipolar FASTe/AS/S with significantly reduced power consumption
Balanced propagation delays
AC types feature 1.5-V to 5.5-V operation and balanced noise immunity at 30% of the supply
± 24-mA output drive current
- Fanout to 15 FASTe ICs
- Drives 50-ohm transmission lines
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-CD74AC193M |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Counters, Dividers | |
| Manufacturer | - |
| Series | 74AC |
| Packaging | Bulk |
| Part Status | Active |
| Logic Type | Binary Counter |
| Direction | Up, Down |
| Number of Elements | 1 |
| Number of Bits per Element | 4 |
| Reset | Asynchronous |
| Timing | Synchronous |
| Count Rate | 85 MHz |
| Trigger Type | Positive Edge |
| Voltage - Supply | 1.5 V ~ 5.5 V |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | 74AC193 |
