Hot sale Original SNJ54LS02J IC GATE NOR 4CH 2-INP 14CDIP NOR Gate IC 4 Channel 14-CDIP
Manufacturer Product Number
SNJ54LS02J
Description
SNJ54LS02J IC GATE NOR 4CH 2-INP 14CDIP NOR Gate IC 4 Channel 14-CDIP
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| description The SN54ACT16244 and 74ACT16244 are 16-bit buffers/line drivers designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. They can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. The devices provide true outputs and symmetrical OE (active-low) output-enable inputs. The 74ACT16244 is packaged in TI’s shrink small-outline package, which provides twice the I/O pin count and functionality of standard small-outline packages in the same printed-circuit-board area. The SN54ACT16244 is characterized for operation over the full military temperature range of –55°C to 125°C. The 74ACT16244 is characterized for operation from –40°C to 85°C. ● Members of the Texas Instruments Widebus™ Family ● Inputs Are TTL-Voltage Compatible ● 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers ● Flow-Through Architecture Optimizes PCB Layout ● Distributed VCC and GND Pin Configurations Minimize High-Speed Switching Noise ● EPIC™ (Enhanced-Performance Implanted CMOS) 1-μm Process ● 500-mA Typical Latch-Up Immunity at 125°C ● Package Options Include Plastic Shrink Small-Outline (DL) and Thin Shrink Small-Outline (DGG) Packages, and 380-mil Fine-Pitch Ceramic Flat (WD) Packages Using 25-mil Center-to-Center Pin Spacings |
Product Description
|
Type |
Description |
|---|---|
| ANSC PART# | ANSC - SNJ54LS02J |
|
Category |
Integrated Circuits (ICs) Logic Gates and Inverters |
|
Mfr |
/ |
|
Series |
54LS |
|
Packaging |
Tube |
|
Part Status |
Active |
|
Logic Type |
NOR Gate |
|
Number of Circuits |
4 |
|
Number of Inputs |
2 |
|
Features |
- |
|
Voltage - Supply |
4.5V ~ 5.5V |
|
Current - Quiescent (Max) |
5.4 mA |
|
Current - Output High, Low |
400µA, 4mA |
|
Input Logic Level - Low |
0.7V |
|
Input Logic Level - High |
2V |
|
Max Propagation Delay @ V, Max CL |
15ns @ 5V, 15pF |
|
Operating Temperature |
-55°C ~ 125°C |
|
Mounting Type |
Through Hole |
|
Supplier Device Package |
14-CDIP |
|
Package / Case |
14-CDIP (0.300", 7.62mm) |

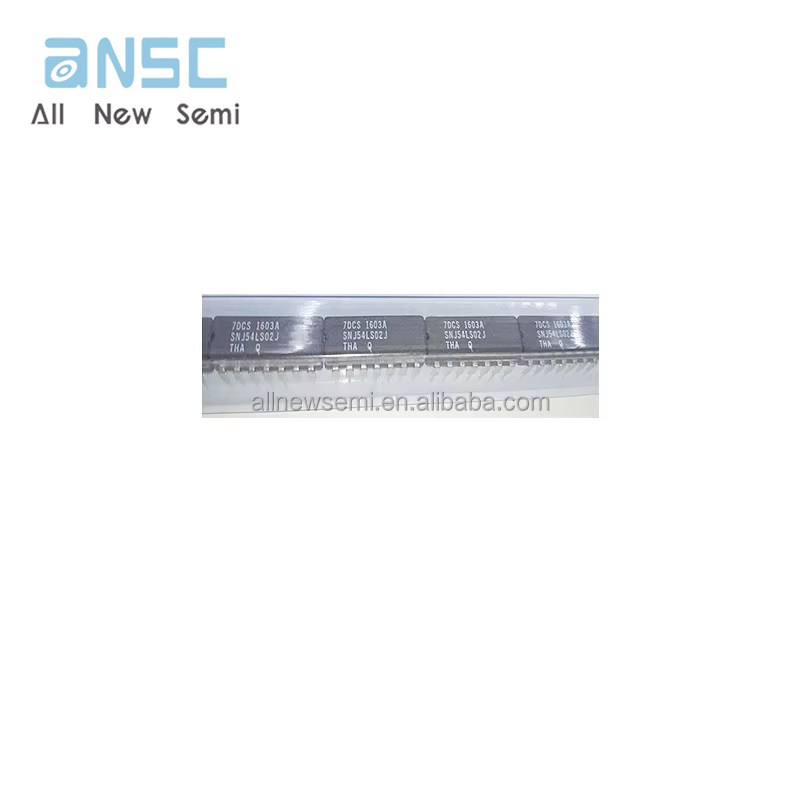

Actual image of the product

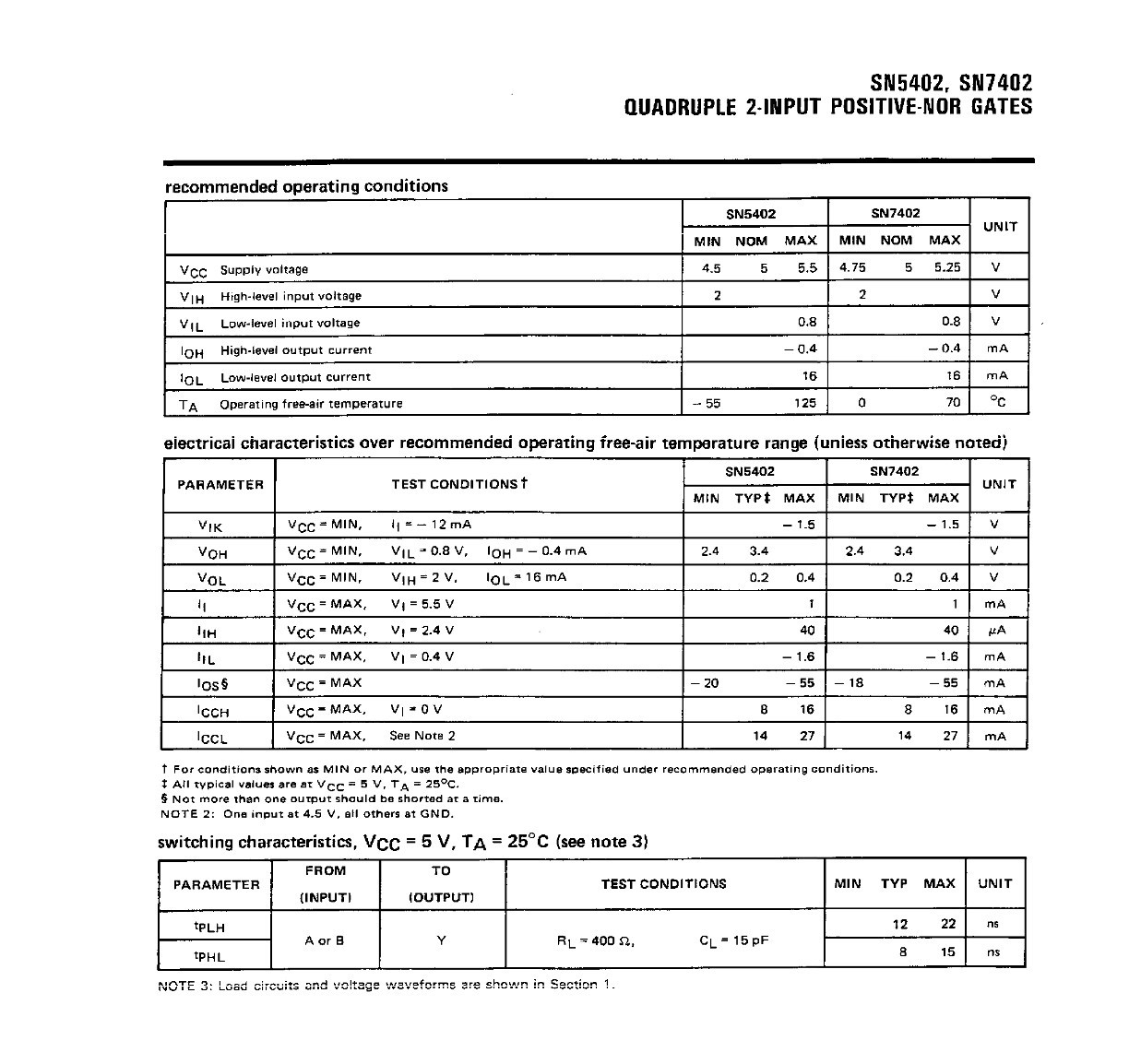

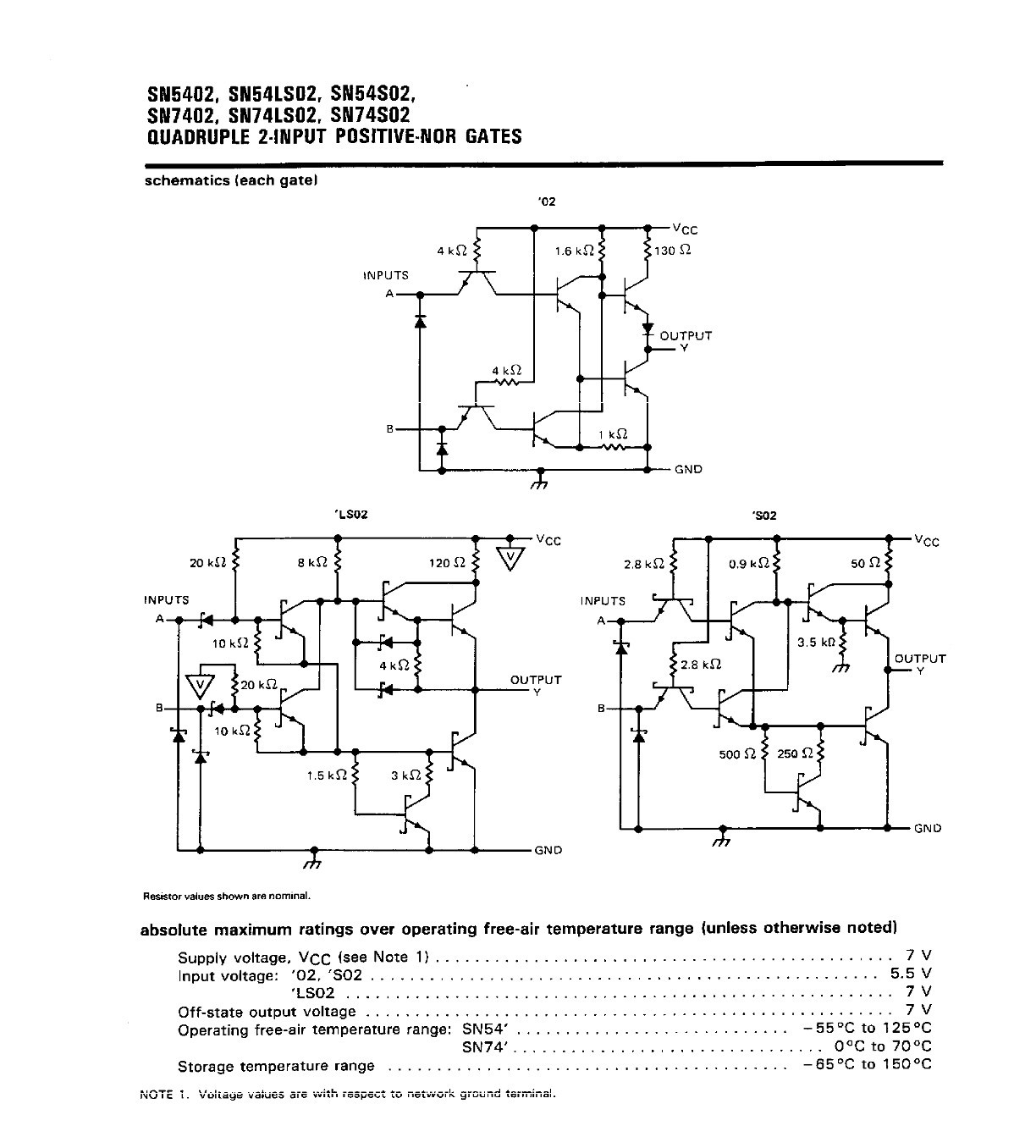

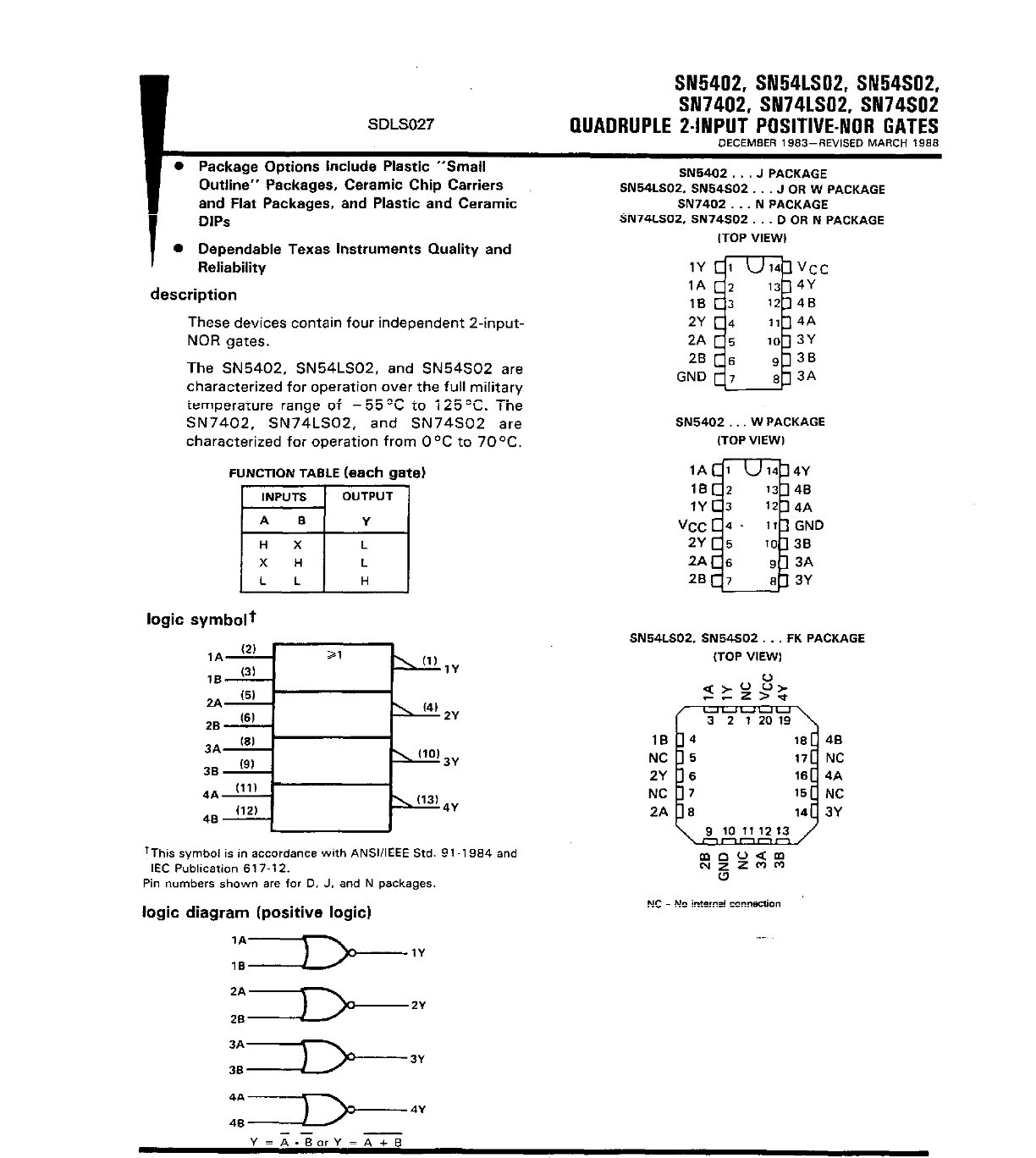

Product datasheet
For more information, please download
