Hot sale Original SN74LVC08APW Logic IC GATE AND 4CH 2-INP 14TSSOP AND Gate IC 4 Channel 14-TSSOP
Manufacturer Product Number
SN74LVC08APW
Description
SN74LVC08APW Logic IC GATE AND 4CH 2-INP 14TSSOP AND Gate IC 4 Channel 14-TSSOP
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Description: The SN74LVC08APW is a 14-pin Surface Mount (SMD/SMT) Logic AND Gate, part of the 74LVC series. This active, lead-free, and RoHS3 compliant IC is designed to operate within a wide temperature range of -40°C to 125°C. The device features a Schmitt trigger input, making it suitable for applications where noise immunity is crucial. Features: Logic Function: The SN74LVC08APW is a 2-input AND gate with a single output, providing a logical AND operation between the two input signals. Logic Level: The device operates with a logic level-high range of 1.7V to 2V and a logic level-low range of 0.7V to 0.8V. Power Dissipation: The IC has a maximum power dissipation of 500mW, making it suitable for applications with moderate power requirements. Propagation Delay: The device has a maximum propagation delay of 3.9ns at 3.3V and 50pF load capacitance. Operating Voltage: The SN74LVC08APW operates within a supply voltage range of 1.65V to 3.6V. Applications: Primary Applications: The SN74LVC08APW is commonly used in digital logic circuits, such as data processing, data transmission, and data storage systems. Secondary Applications: The device can also be used in applications like industrial control systems, medical devices, and automotive electronics. |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC- SN74LVC08APW |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | Original |
| Series | 74LVC |
| Packaging | Tube |
| Part Status | Active |
| Logic Type | AND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 1.65V ~ 3.6V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 24mA, 24mA |
| Input Logic Level - Low | 0.7V ~ 0.8V |
| Input Logic Level - High | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | 3.9ns @ 3.3V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-TSSOP |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Base Product Number | 74LVC08 |

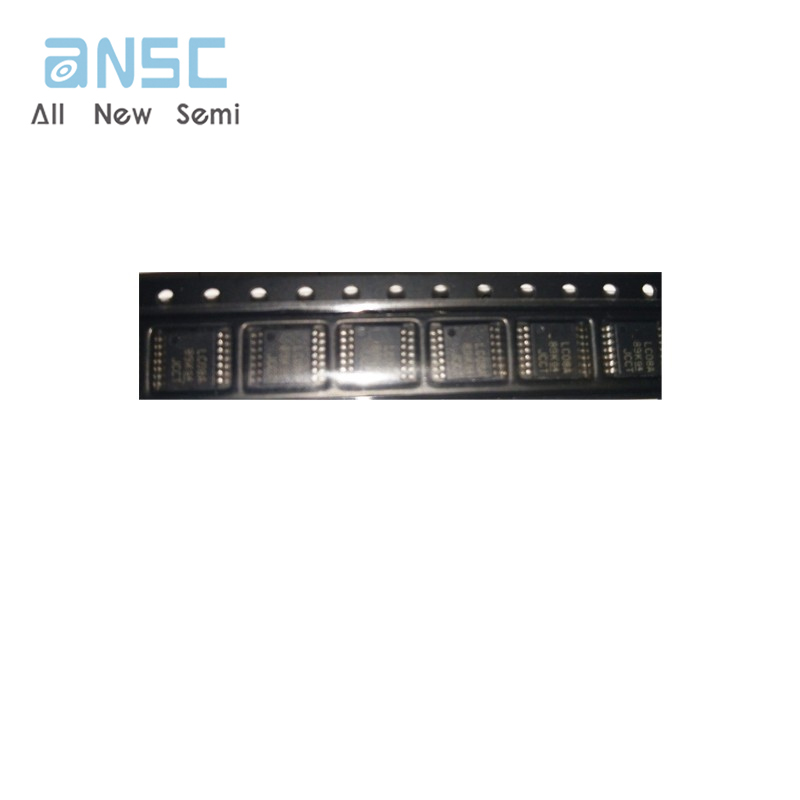

Actual image of the product

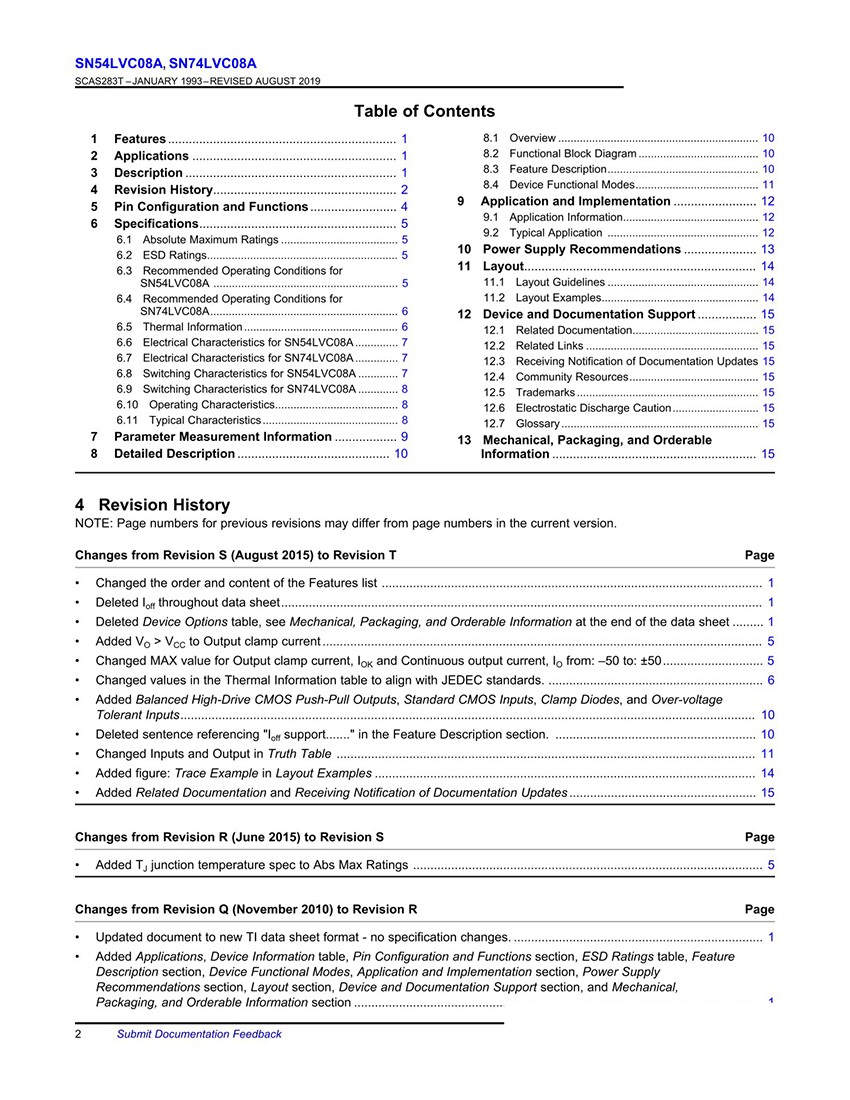

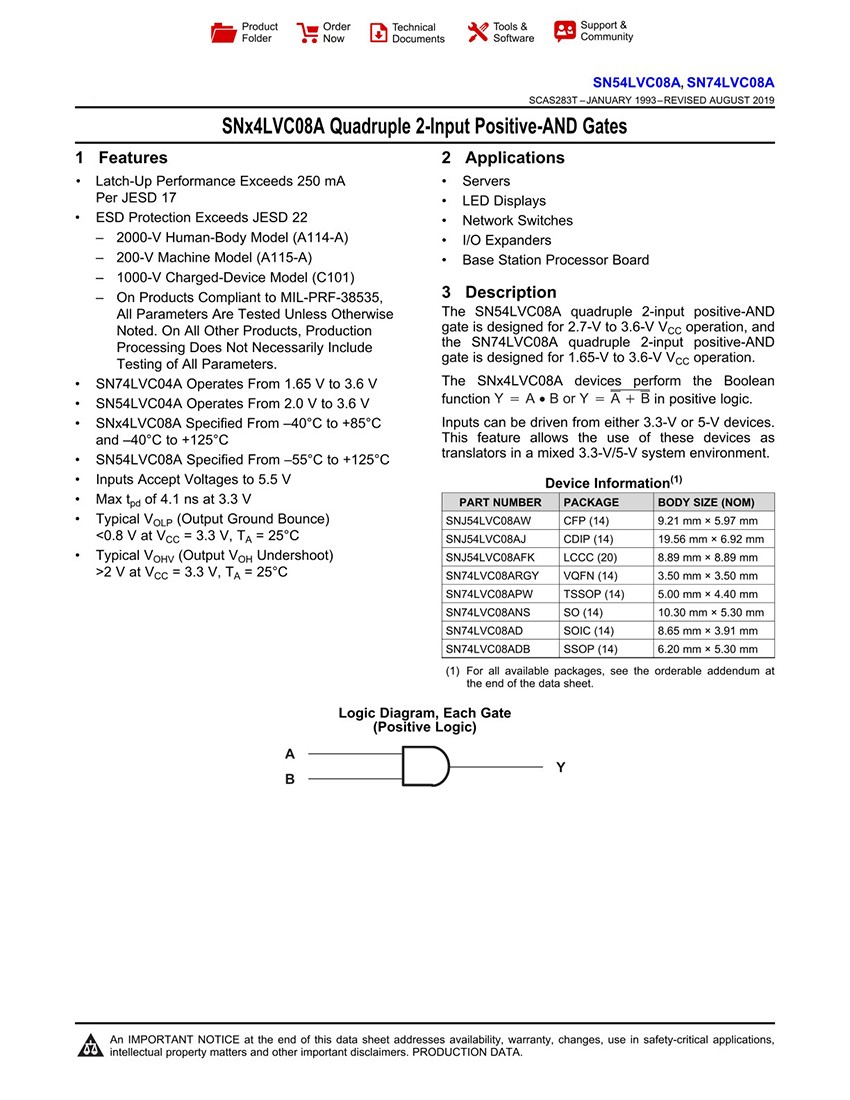

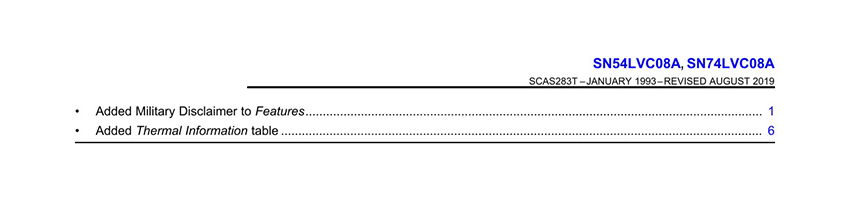

Product datasheet
