Hot-selling and scarce 74ACT573PC Octal Latch with 3-STATE Outputs DIP20 spot stock
Manufacturer Product Number
74ACT573PC
Description
74ACT573PC Octal Latch with 3-STATE Outputs DIP20 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The 74AC573 and 74ACT573 are high-speed octal latches with buffered common Latch Enable (LE) and buffered common Output Enable (OE) inputs.
The 74AC573 and 74ACT573 are functionally identical to the 74AC373 and 74ACT373 but with inputs and outputs on opposite sides.
Product Features
■ ICC and IOZ reduced by 50%
■ Inputs and outputs on opposite sides of package allowing easy interface with microprocessors
■ Useful as input or output port for microprocessors
■ Functionally identical to 74AC373 and 74ACT373
■ 3-STATE outputs for bus interfacing
■ Outputs source/sink 24mA
■ 74ACT573 has TTL-compatible inputs
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-74ACT573PC |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Latches | |
| Mfr | - |
| Series | 74ACT |
| Packaging | Tube |
| Part Status | Obsolete |
| Logic Type | D-Type Transparent Latch |
| Circuit | 8:8 |
| Output Type | Tri-State |
| Voltage - Supply | 4.5V ~ 5.5V |
| Independent Circuits | 1 |
| Delay Time - Propagation | 6ns |
| Current - Output High, Low | 24mA, 24mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP |
| Base Product Number | 74ACT573 |

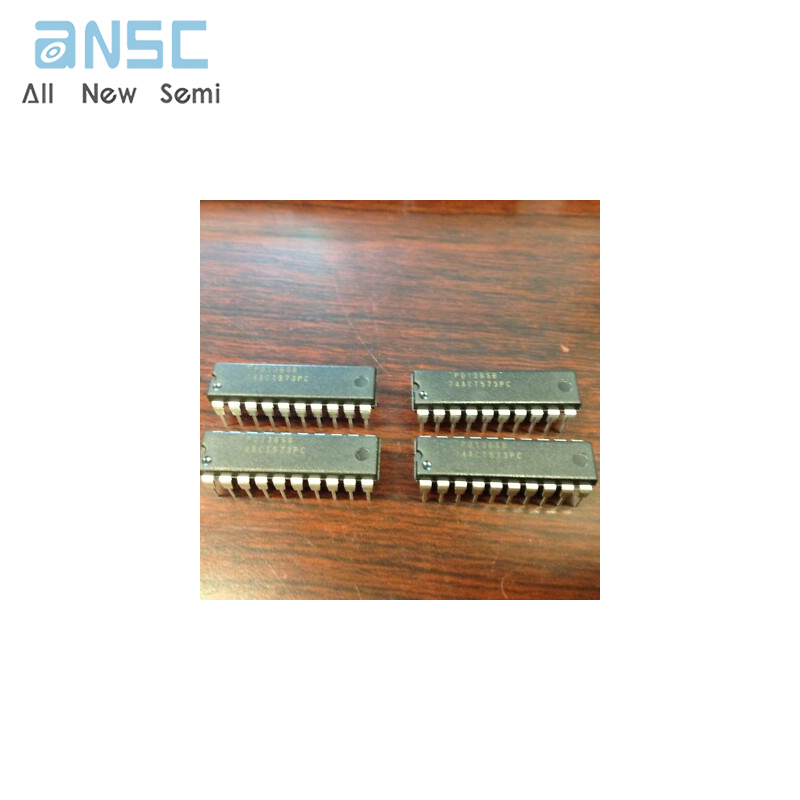

Product Photos
For more product information, please download the PDF
