Quad 2-input OR gate Electronic components BOM Integrated circuit IC 74HC32D

Product Descriptions

• Quad 2-Input OR Gate

The 74HC32D is a high speed CMOS 2-INPUT OR GATE fabricated with silicon gate C 2MOS technology.

It achieves the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation.

The internal circuit is composed of 2 stages including buffer output, which provide high noise immunity and stable output.

All inputs are equipped with protection circuits against static discharge or transient excess voltage.

Product Features

(1) High speed: tpd = 6 ns (typ.) at VCC = 5 V

(2) Low power dissipation: ICC = 1.0µA (max) at Ta = 25℃

(3) Balanced propagation delays: tPLH≈ tPHL

(4) Wide operating voltage range: VCC(opr) = 2.0 to 6.0 V

Specifications

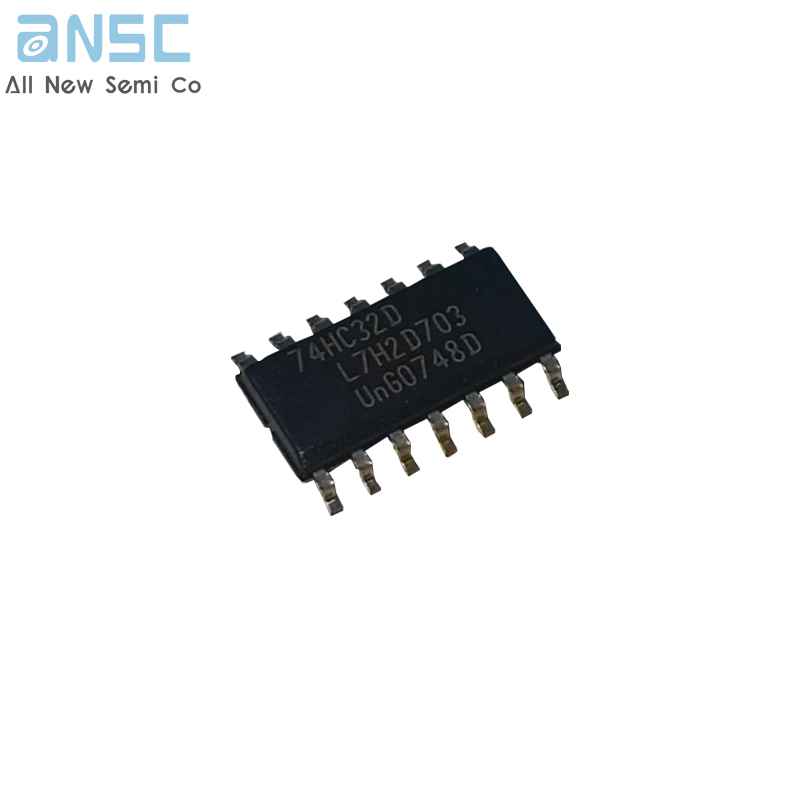

Actual product photos

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
