Single 2-input Positive or negative gate Electronic components BOM Integrated circuit IC SN74AHC1G02DBVR

Product Descriptions

This device contains a single 2-input NOR gate that performs the Boolean function Y = A × B or Y = A + B in positive logic.

Product Features

• Operating Range of 2 V to 5.5 V

• Max tpd of 6.5 ns at 5 V

• Low Power Consumption, 10-µA Max ICC

• ±8-mA Output Drive at 5 V

• Schmitt Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time

Product Applications

• Infotainment

• Printers

• Cameras

• PCs, Notebooks

• E-Meters

• Body Control Modules

Specifications

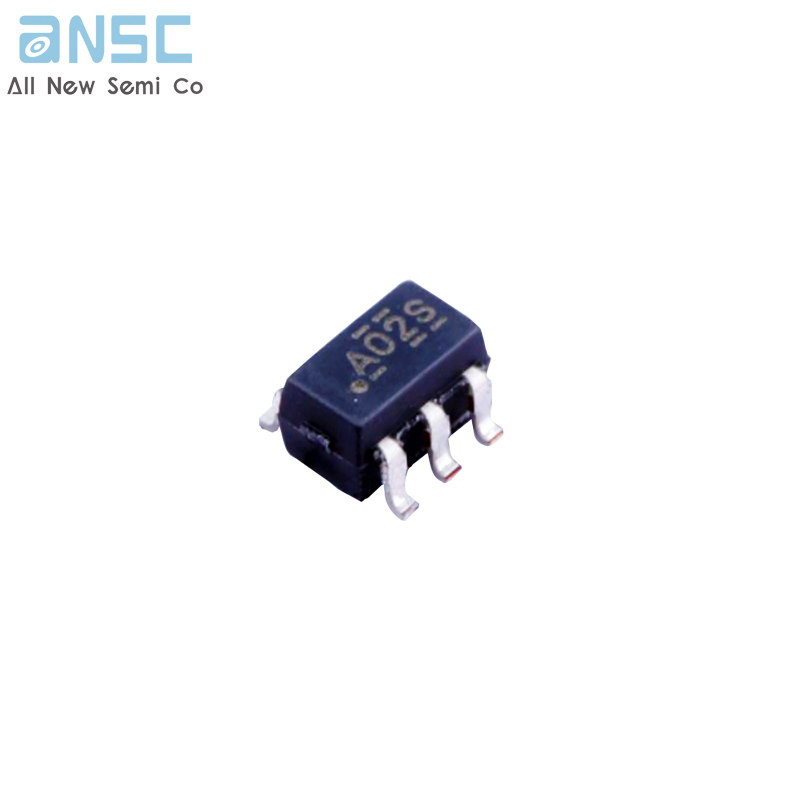

Actual product photos

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
