Hot sale original SN54S08J IC QUADRUPLE 2-INPUT POSITIVE-AND Logic gates Military, 4-ch 2-input 4.5-V to 5.5-V AND gate
Manufacturer Product Number
SN54S08J
Description
SN54S08J IC QUADRUPLE 2-INPUT POSITIVE-AND Logic gates Military, 4-ch 2-input 4.5-V to 5.5-V AND gate
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| SN54S08J Overview The series * contains it. SN54S08J Applications SN54S08J Gates and Inverters applications. Sewing machine DVD VCD Computer Television Washing machine Range hood Refrigerator VCR Massager |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - SN54S08J |
| Part Package Code | DIP |
| Pin Count | 14 |
| Family | S |
| JESD-30 Code | R-GDIP-T14 |
| JESD-609 Code | e0 |
| Length | 19.56 Mm |
| Load Capacitance (CL) | 15 Pf |
| Logic IC Type | And Gate |
| Max I(ol) | 0.016 A |
| Number of Functions | 4 |
| Number of Inputs | 2 |
| Number of Terminals | 14 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Package Body Material | Ceramic, Glass-Sealed |
| Package Code | DIP |
| Package Equivalence Code | DIP14,.3 |
| Package Shape | Rectangular |
| Package Style | In-Line |
| Packing Method | Tube |
| Power Supply Current-Max (ICC) | 57 Ma |
| Prop. Delay@Nom-Sup | 7.5 Ns |
| Propagation Delay (tpd) | 7.5 Ns |
| Qualification Status | Not Qualified |
| Schmitt Trigger | No |
| Seated Height-Max | 5.08 Mm |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | No |
| Technology | Ttl |
| Temperature Grade | Military |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | Through-Hole |
| Terminal Pitch | 2.54 Mm |
| Terminal Position | Dual |
| Width | 7.62 Mm |

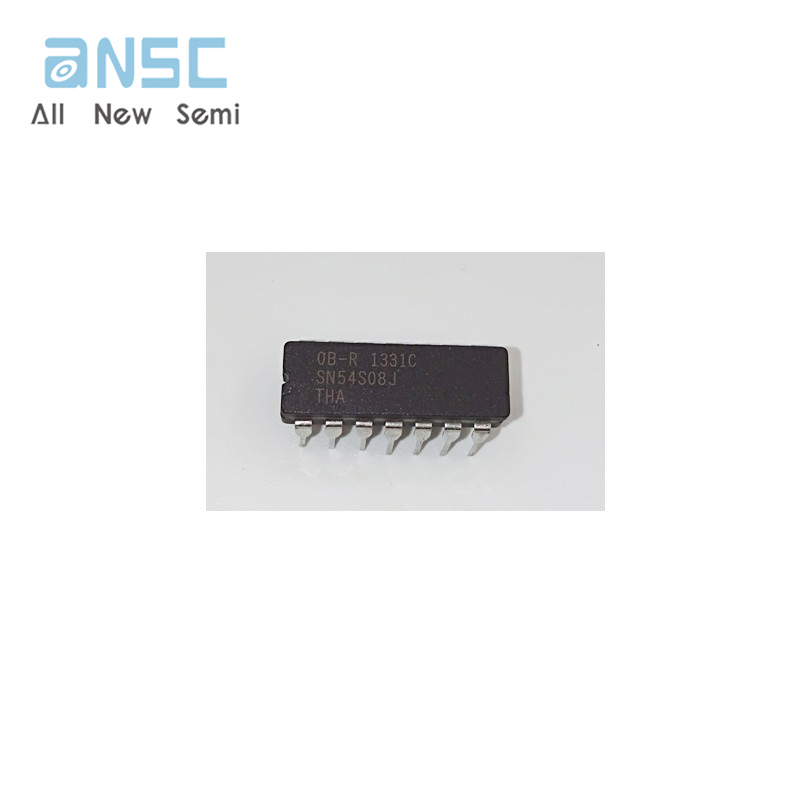

Actual image of the product

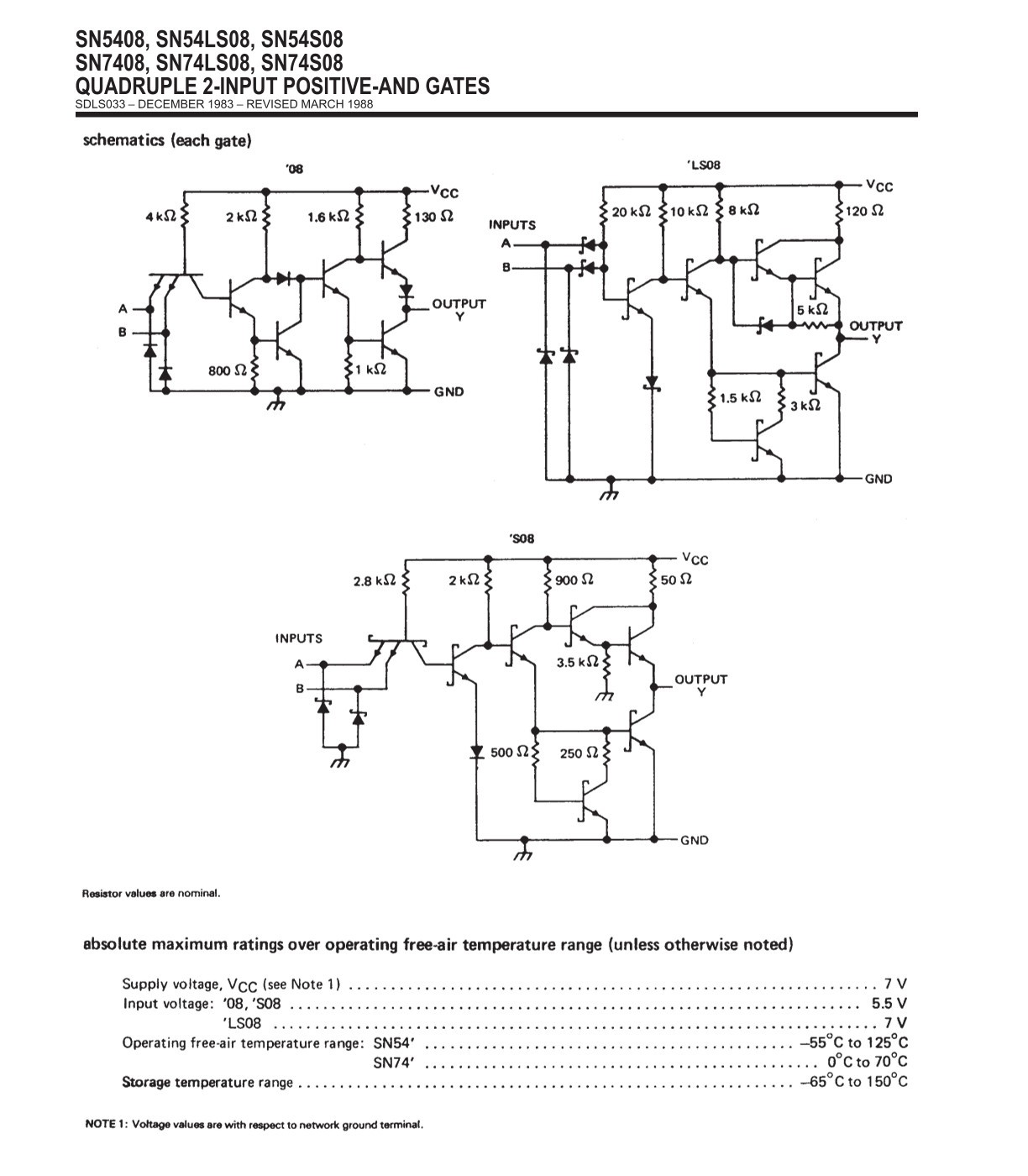

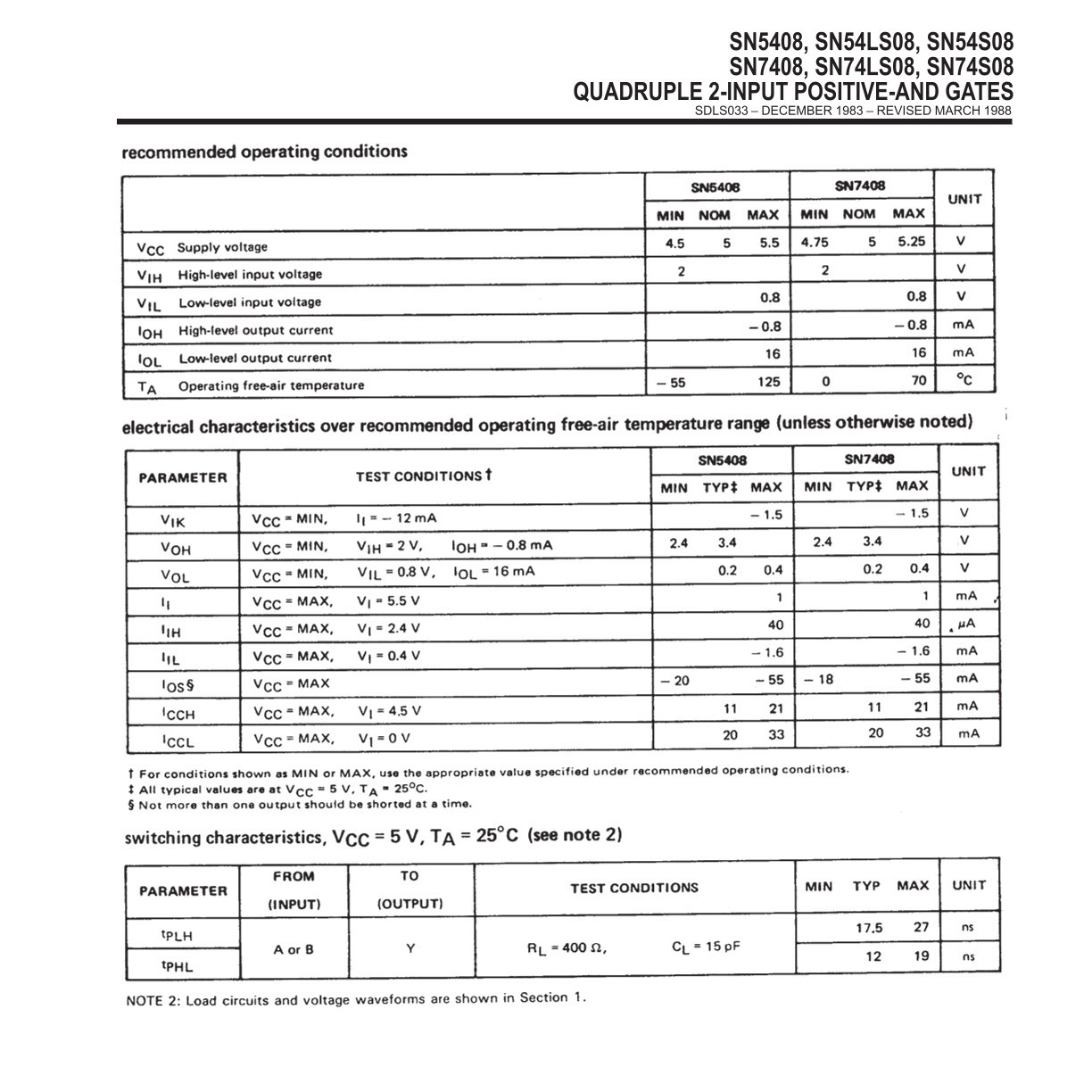

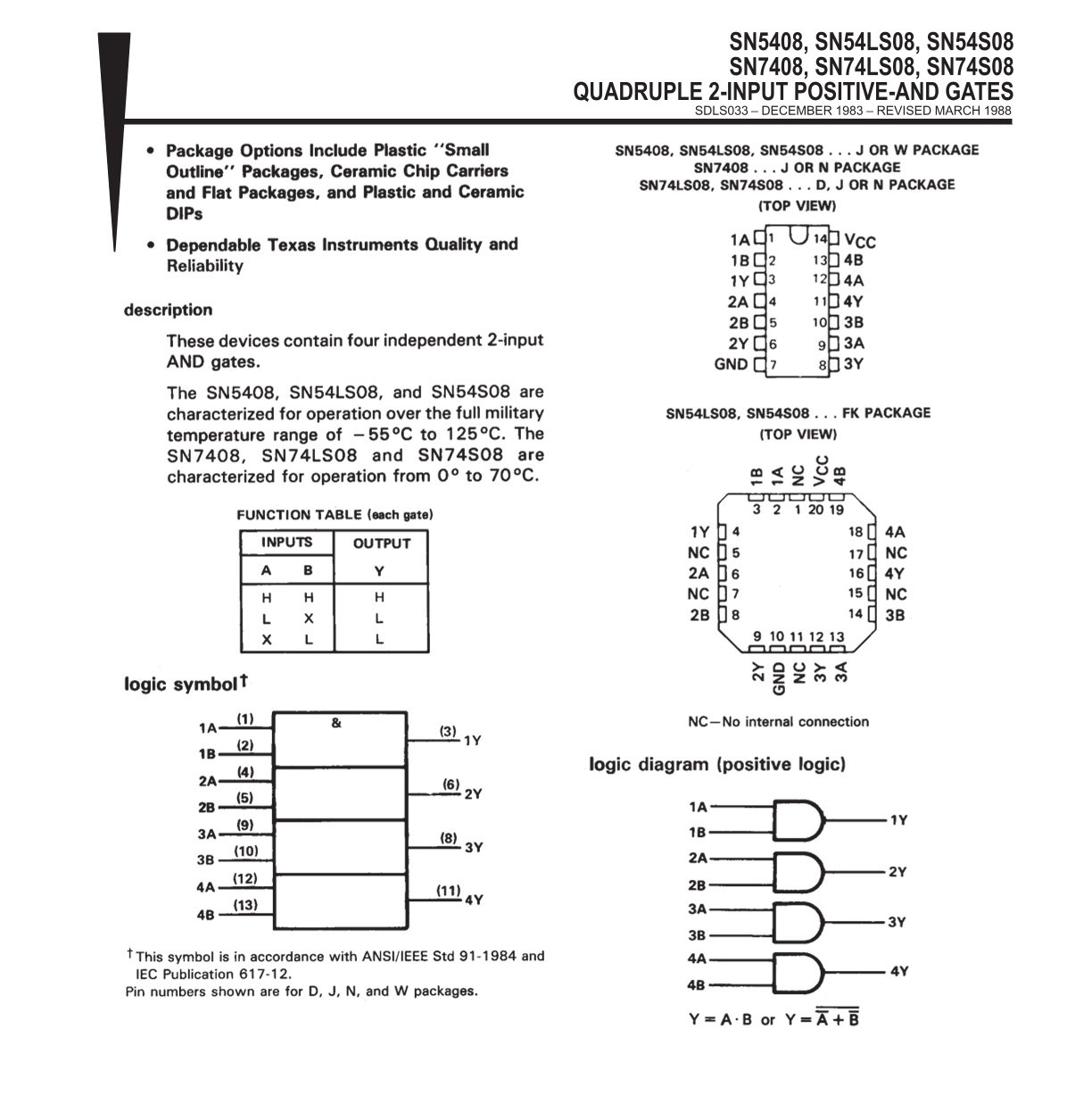

Product datasheet
For more information, please download
