Hot-selling and scarce MC100EPT22DR2 Dual LVTTL/LVCMOS to Differential LVPECL Translator SOP8 spot stock
Manufacturer Product Number
MC100EPT22DR2
Description

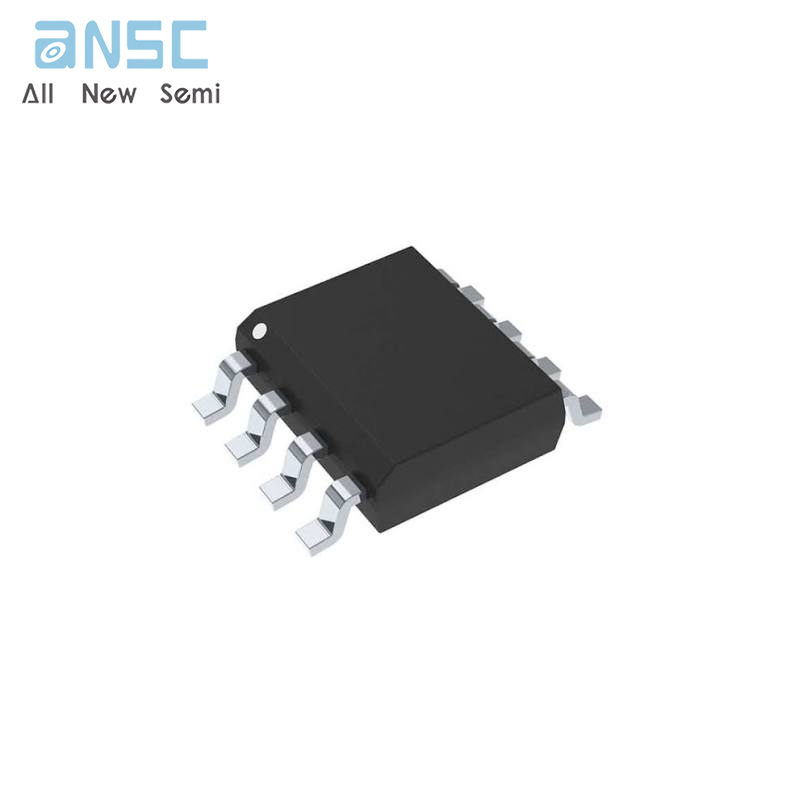

MC100EPT22DR2 Dual LVTTL/LVCMOS to Differential LVPECL Translator SOP8 spot stock
Package Condition
Bulk
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The MC100EPT22 is a dual LVTTL/LVCMOS to differential LVPECL translator. Because LVPECL (Positive ECL) levels are used only +3.3V and ground are required. The small outline 8–lead SOIC package and the single gate of the EPT22 makes it ideal for those applications where space, performance, and low power are at a premium. Because the mature MOSAIC 5 process is used, low cost and high speed can be added to the list of features.
Product Features
• 420ps Typical Propagation Delay
• Differential LVPECL Outputs
• Small Outline SOIC Package
• PNP LVTTL Inputs for Minimal Loading
• Flow Through Pinouts
• Q Output will default HIGH with inputs open
• ESD Protection: 4.0 KV HBM, 200 V MM
• Maximum Frequency > 1.1 GHz
• Moisture Sensitivity Level 1, Indefinite Time Out of Drypack.
For Additional Information, See Application Note AND8003/D
• Flammability Rating:UL–94 code V–0 @ 1/8”,
Oxygen Index 28 to 34
• Transistor Count = 164 devices
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MC100EPT22DR2 |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Translators, Level Shifters | |
| Manufacturer | - |
| Series | 100EPT |
| Packaging | Bulk |
| Part Status | Active |
| Translator Type | Mixed Signal |
| Channel Type | Unidirectional |
| Number of Circuits | 1 |
| Channels per Circuit | 2 |
| Input Signal | LVCMOS, LVTTL |
| Output Signal | LVPECL |
| Output Type | Differential |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | 100EPT22 |
