Hot sale Original MC10162P Logic IC DECODER/DEMUX SINGLE 3-TO-8 Bulk Binary to 1-8 Decoder (High)
Manufacturer Product Number
MC10162P
Description
MC10162P Logic IC DECODER/DEMUX SINGLE 3-TO-8 Bulk Binary to 1-8 Decoder (High)
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Binary to 1-8 Decoder (High) The MC10162 is designed to convert three lines of input data to a one–of–eight output. The selected output will be high while all other outputs are low. The enable inputs, when either or both are high, force all outputs low. The MC10162 is a true parallel decoder. No series gating is used internally, eliminating unequal delay times found in other decoders. This device is ideally suited for demultiplexer applications. One of the two enable inputs is used as the data input, while the other is used as a data enable input. A complete mux/demux operation on 16 bits for data distribution is illustrated in Figure 1 of the MC10161 data sheet. • PD = 315 ns typ/pkg (No Load) • tpd = 4.0 ns typ • tr, tf = 2.0 ns typ (20%–80%) |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - MC10162P |
| Part Package Code | DIP |
| Package Description | Dip, Dip16,.3 |
| Pin Count | 16 |
| Factory Lead Time | 4 Weeks |
| Family | 10k |
| Input Conditioning | Standard |
| Length | 19.175 Mm |
| Logic IC Type | 3-Line To 8-Line Decoder |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -30 °C |
| Output Characteristics | Open-Emitter |
| Output Polarity | Inverted |
| Package Body Material | Plastic/Epoxy |
| Package Code | DIP |
| Package Equivalence Code | DIP16,.3 |
| Package Shape | Rectangular |
| Package Style | In-Line |
| Packing Method | Rail |
| Peak Reflow Temperature (Cel) | 235 |
| Power Supply Current-Max (ICC) | 84 Ma |
| Prop. Delay@Nom-Sup | 6.4 Ns |
| Propagation Delay (tpd) | 6.4 Ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.44 Mm |
| Supply Voltage-Nom (Vsup) | -5.2 V |
| Surface Mount | No |
| Technology | Ecl |
| Temperature Grade | Other |
| Terminal Finish | Tin Lead |
| Terminal Form | Through-Hole |
| Terminal Pitch | 2.54 Mm |
| Terminal Position | Dual |
| Width | 7.62 Mm |

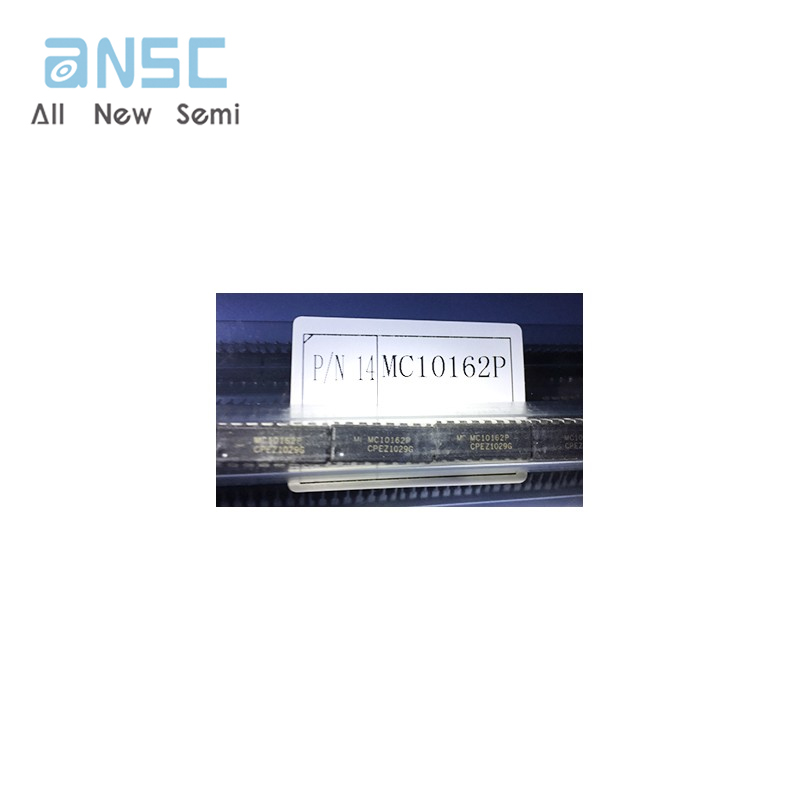

Actual image of the product
