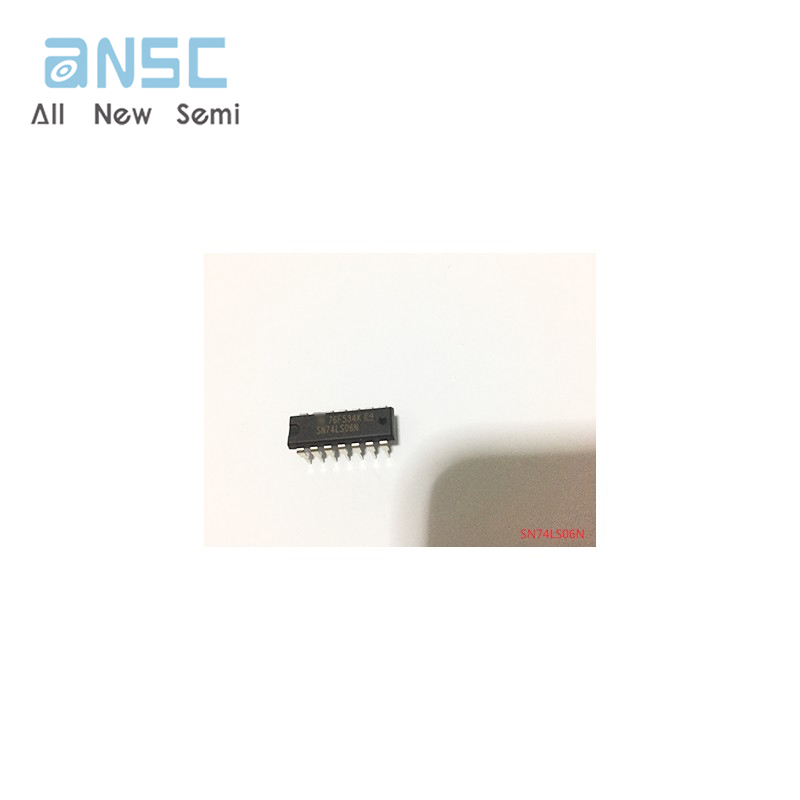

Hot sale Original SN74LS06N IC INVERTER 6CH 1-INP 14DIP Inverter IC 6 Channel Open Collector 14-PDIP

Product Description:

The SN74LS06N is a 14-pin DIP (Dual In-Line Package) logic inverter IC, part of the 74LS family. This active, lead-free, and RoHS3 compliant IC is designed to provide a high-speed, low-power inverter function with a maximum propagation delay of 20ns at 5V and 15pF load capacitance.

Features:

Open Collector Output: The SN74LS06N features an open collector output, which allows the output to be connected to an external pull-up resistor.
Inverter Logic Function: The IC provides a logic inverter function, which can be used to invert digital signals.
Buffer Function: The IC also acts as a buffer, allowing it to amplify weak digital signals.
Inverting Function: The IC can be used as an inverter, inverting the input signal to produce an output signal of the opposite logic level.
Schmitt Trigger Input: The IC does not have Schmitt trigger input, which means it does not have hysteresis and can be sensitive to noise.
Operating Temperature: The IC operates within a temperature range of 0°C to 70°C.
Applications:

Primary Applications: The SN74LS06N is commonly used in digital logic circuits, such as digital clocks, counters, and flip-flops.
Secondary Applications: It can also be used in other applications where a high-speed, low-power inverter function is required, such as in data acquisition systems, medical devices, and industrial control systems.
