Hot-selling and scarce MM74HC00N Quad 2-Input NAND Gate DIP20 spot stock

Product Descriptions

The MM74HC00 NAND gates utilize advanced silicongate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits. All gates have buffered outputs. All devices have high noise immunity and the ability to drive 10 LS-TTL loads. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.

Product Features

■ Typical propagation delay: 8ns

■ Wide power supply range: 2V–6V

■ Low quiescent current: 20µA maximum (74HC Series)

■ Low input current: 1µA maximum

■ Fanout of 10 LS-TTL loads

​

Product Specification

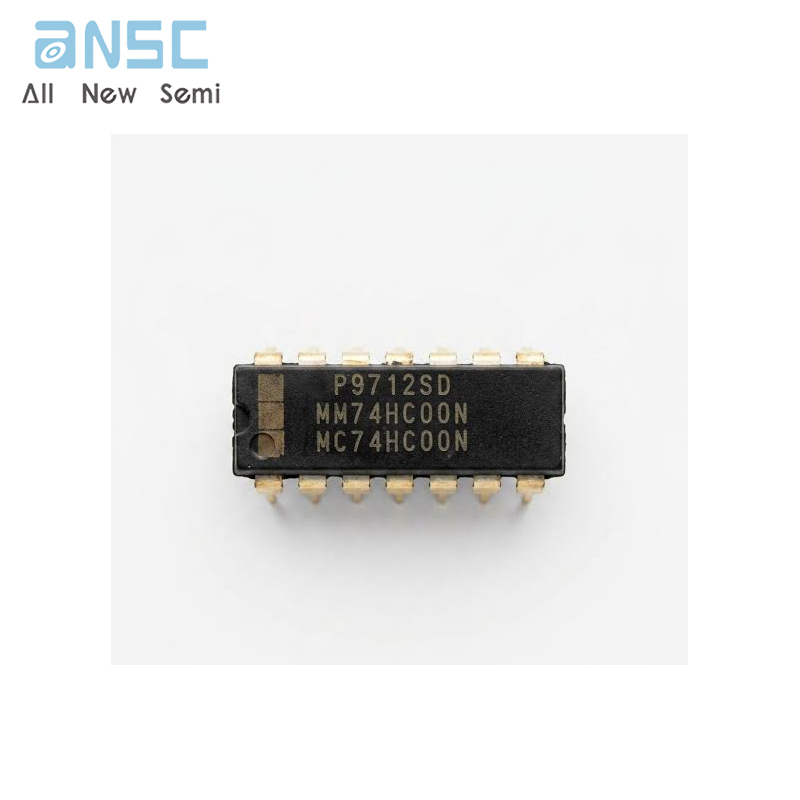

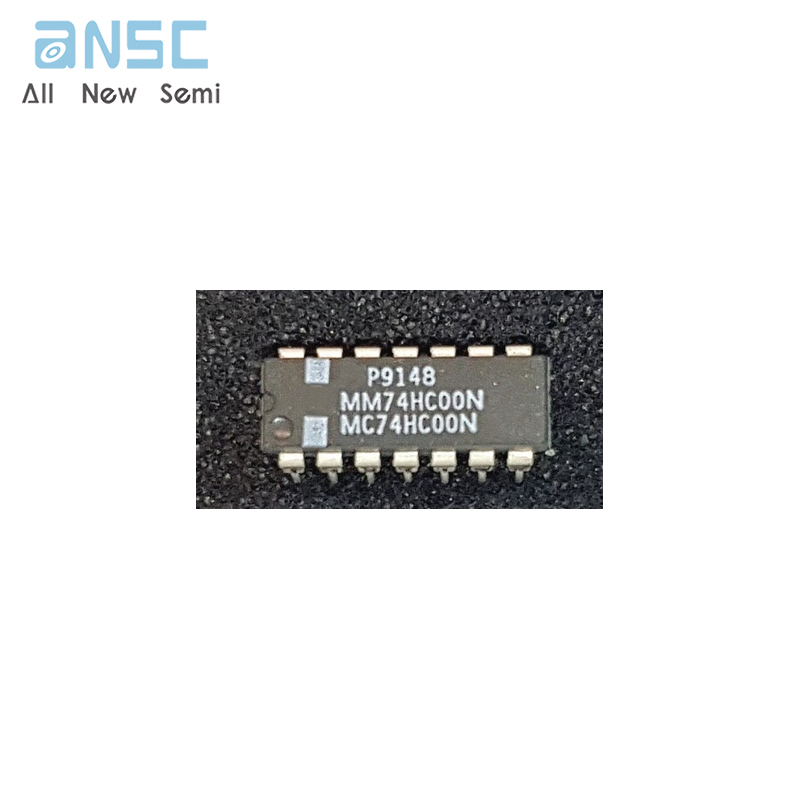

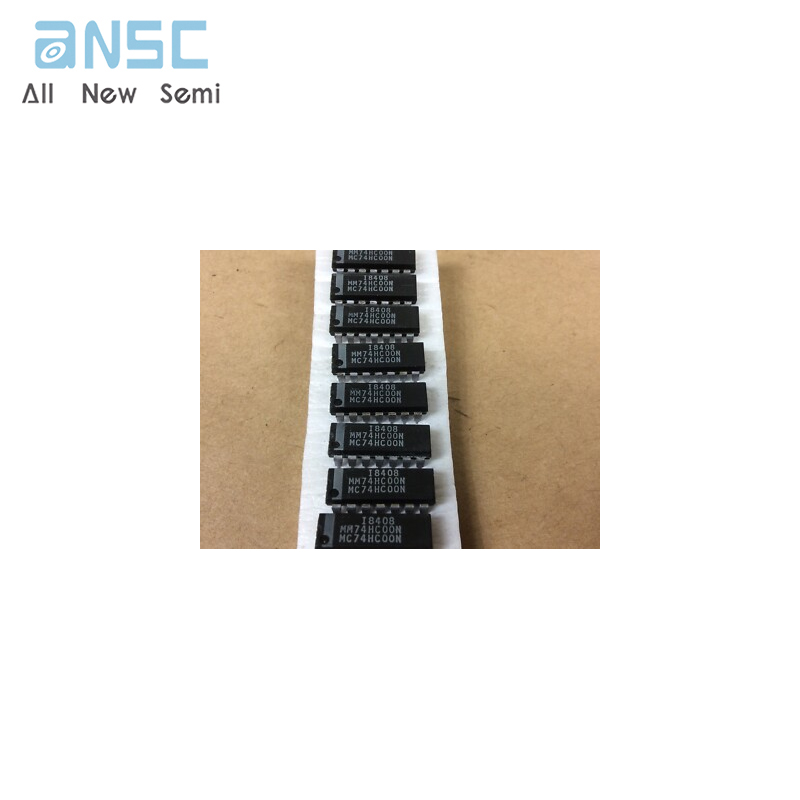

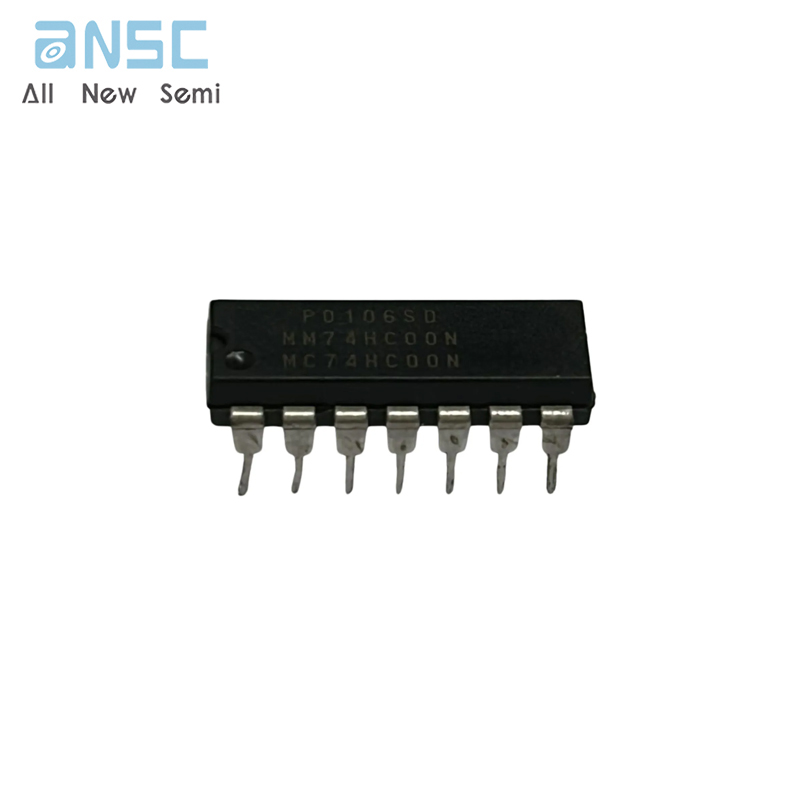

Product Photos

For more product information, please download the PDF
