You can contact me for the best price SN74LV595APWR 8-BIT SHIFT REGISTERS WITH 3-STATE OUTPUT REGISTERS

Manufacturer Product Number
SN74LV595APWR
Description

SN74LV595APWR 8-BIT SHIFT REGISTERS WITH 3-STATE OUTPUT REGISTERS Hot sale Original

Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

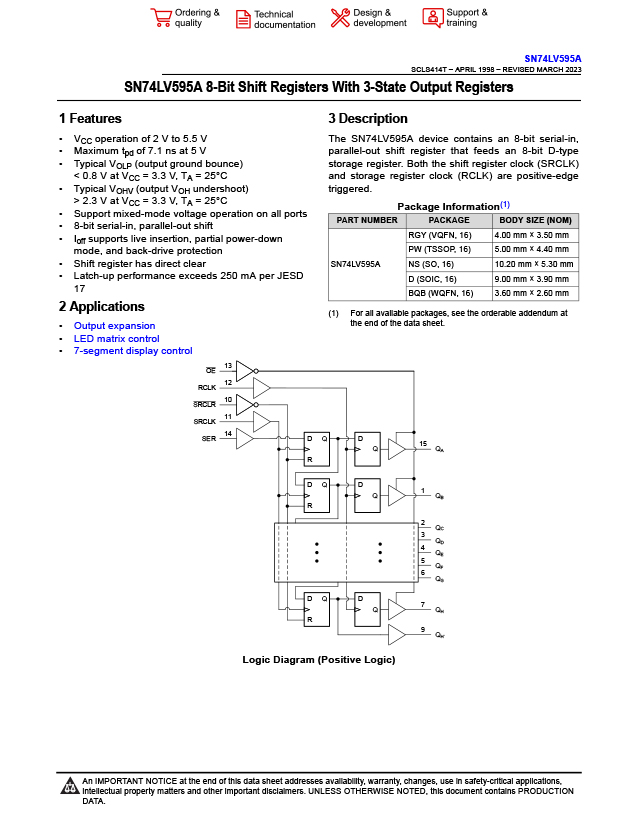

1 Features
• 2-V to 5.5-V VCC operation
• Maximum tpd of 7.1 ns at 5 V
• Typical VOLP (output ground bounce)
< 0.8 V at VCC = 3.3 V, TA = 25°C
• Typical VOHV (output VOH undershoot)
> 2.3 V at VCC = 3.3 V, TA = 25°C
• Support mixed-mode voltage operation on all ports
• 8-bit serial-in, parallel-out shift
• Ioff supports live insertion, partial power-down
mode, and back-drive protection
• Shift register has direct clear
• Latch-up performance exceeds 250 mA per JESD
17

2 Applications
• Output expansion
• LED matrix control
• 7-segment display control

3 Description
The SN74LV595A device contains an 8-bit serial-in,
parallel-out shift register that feeds an 8-bit D-type
storage register. Both the shift register clock (SRCLK)
and storage register clock (RCLK) are positive-edge
triggered.

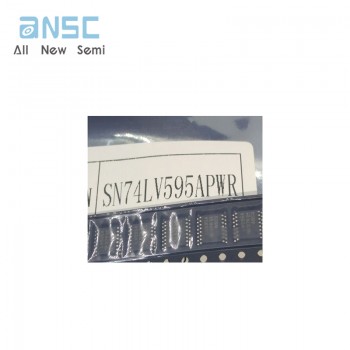

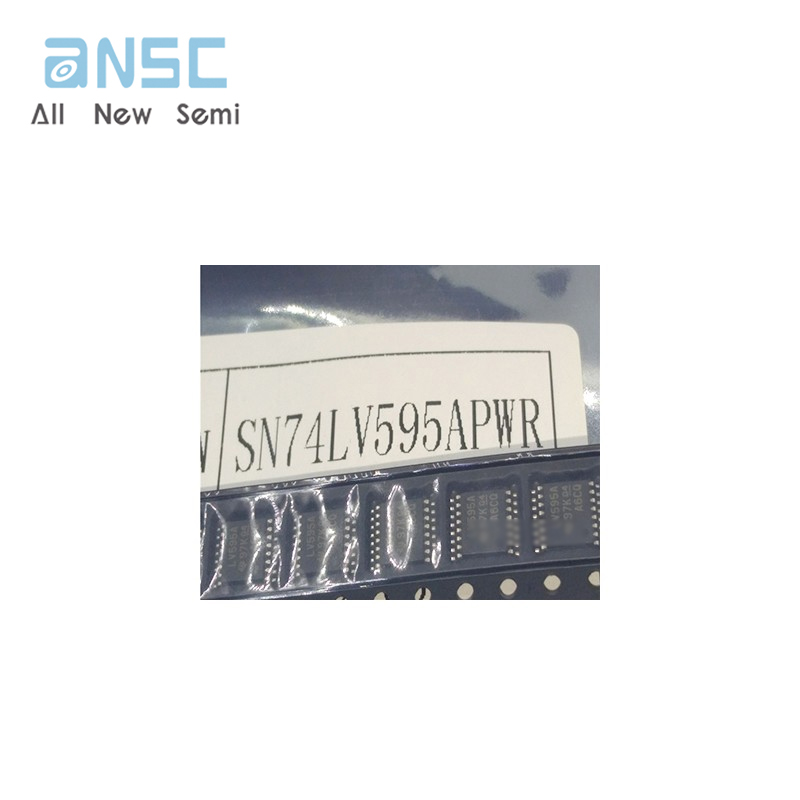

Actual image of the product

SN74LV595APWR

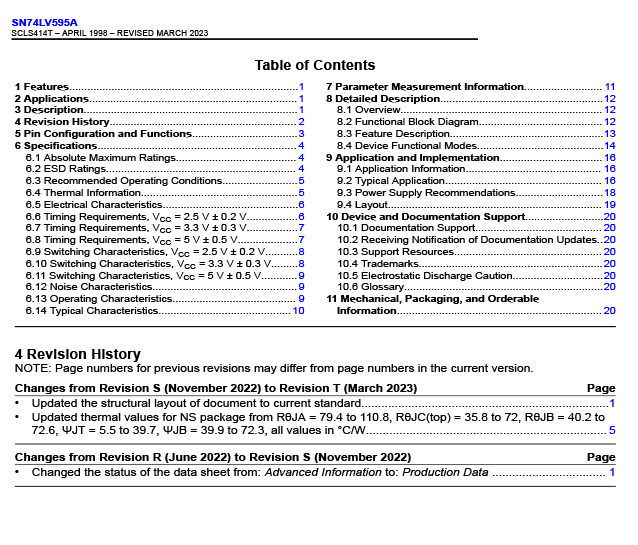

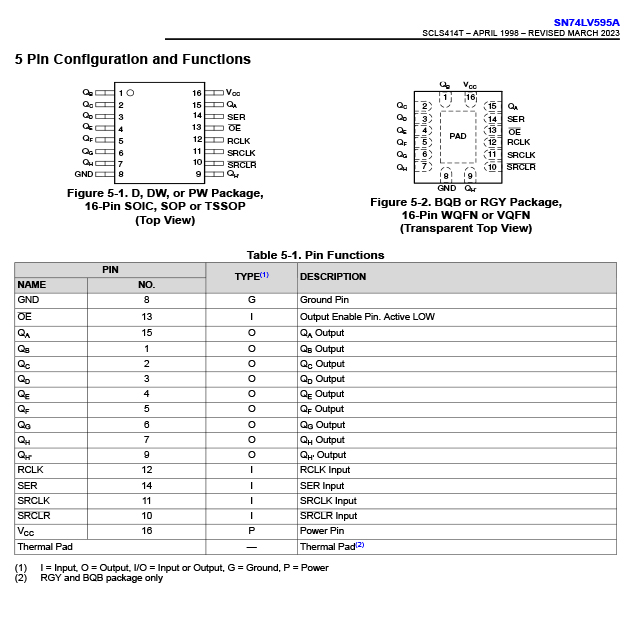

Product datasheet

For more information, please download
