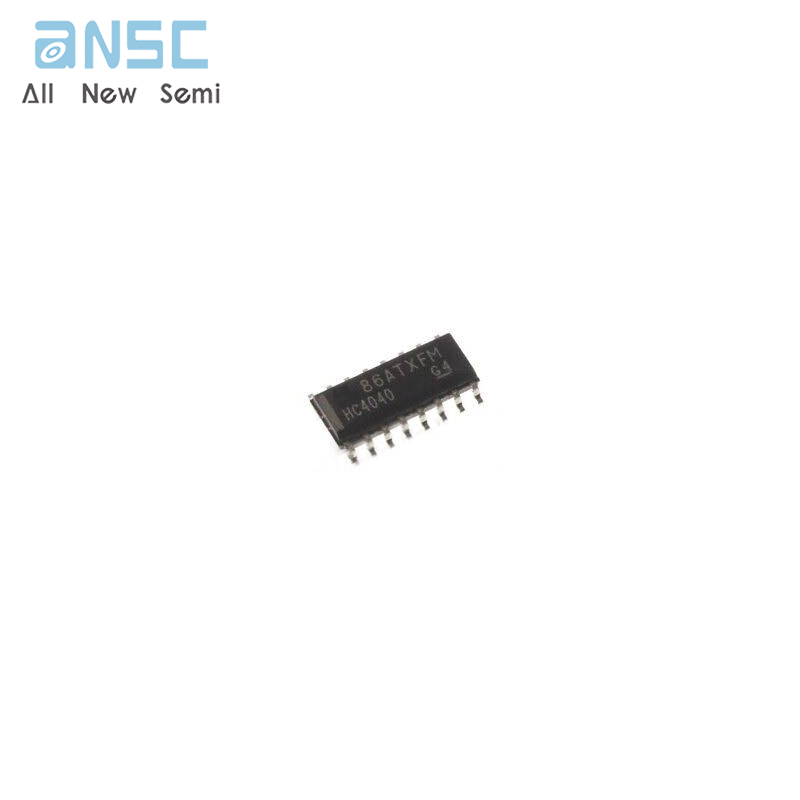

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce SN74HC4040D 12-BIT ASYNCHRONOUS BINARY COUNTERS SOP16 spot stock
Manufacturer Product Number
SN74HC4040D
Description
SN74HC4040D 12-BIT ASYNCHRONOUS BINARY COUNTERS SOP16 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The ’HC4040 devices are 12-stage asynchronous binary counters, with the outputs of all stages available externally. A high level at the clear (CLR) input asynchronously clears the counter and resets all outputs low. The count is advanced on a high-tolow transition at the clock (CLK) input. Applications include time-delay circuits, counter controls, and frequency-dividing circuits.
Product Features
• Wide operating voltage range of 2 V to 6 V
• Outputs can drive up to 10 LSTTL loads
• Low power consumption, 80-µA max ICC
• Typical tpd = 12 ns
• ±4-mA output drive at 5 V
• Low input current of 1 µA max
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN74HC4040D |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Counters, Dividers | |
| Manufacturer | - |
| Series | 74HC |
| Packaging | Tube |
| Part Status | Obsolete |
| Logic Type | Binary Counter |
| Direction | Up |
| Number of Elements | 1 |
| Number of Bits per Element | 12 |
| Reset | Asynchronous |
| Timing | Asynchronous |
| Count Rate | 33 MHz |
| Trigger Type | Negative Edge |
| Voltage - Supply | 2 V ~ 6 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package | 16-SO |
| Base Product Number | 74HC4040 |
Product Photos
For more product information, please download the PDF
