Hot-selling and scarce MACH231-15JC/1 High-Performance EE CMOS Programmable Logic PLCC spot stock

​Product Features

◆ High-performance electrically-erasable CMOS PLD families

◆ 32 to 128 macrocells

◆ 44 to 100 pins in cost-effective PLCC, PQFP and TQFP packages

◆ SpeedLocking™ – guaranteed fixed timing up to 16 product terms

◆ Commercial 5/5.5/6/7.5/10/12/15-ns tPD and Industrial 7.5/10/12/14/18-ns tPD

◆ Configurable macrocells

— Programmable polarity

— Registered or combinatorial outputs

— Internal and I/O feedback paths

— D-type or T-type flip-flops

— Output Enables

— Choice of clocks for each flip-flop

— Input registers for MACH 2 family

◆ JTAG (IEEE 1149.1)-compatible, 5-V in-system programming available

◆ Peripheral component interconnect (PCI) compliant at 5/5.5/6/7.5/10/12 ns

◆ Safe for mixed supply voltage system designs

◆ Bus-Friendly™ inputs and I/Os reduce risk of unwanted oscillatory outputs

◆ Programmable power-down mode results in power savings of up to 75%

◆ Supported by Vantis DesignDirect™ software for rapid logic development

— Supports HDL design methodologies with results optimized for Vantis

— Flexibility to adapt to user requirements

— Software partnerships that ensure customer success

◆ Lattice/Vantis and third-party hardware programming support

— Lattice/VantisPRO™ (formerly known as MACHPRO®) software for in-system programmability support on PCs and Automated Test Equipment

— Programming support on all major programmers including Data I/O, BP Microsystems, Advin, and System General

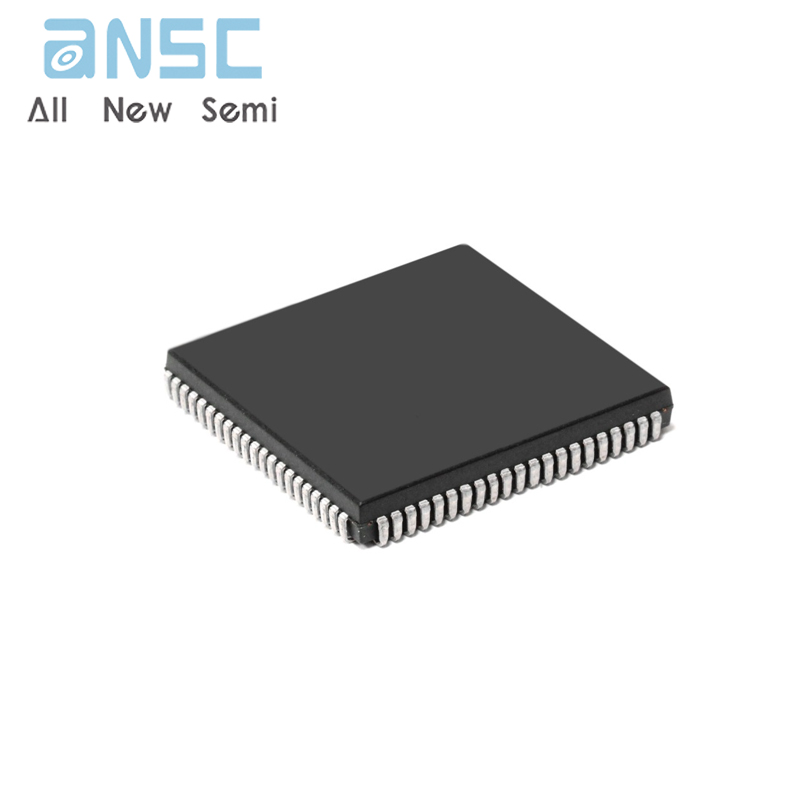

Product Photos

For more product information, please download the PDF
