Hot-selling and scarce 74F10PC Triple 3-Input NAND Gate DIP14 spot stock
Manufacturer Product Number
74F10PC
Description
74F10PC Triple 3-Input NAND Gate DIP14 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
This device contains three independent gates, each of which performs the logic NAND function.
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-74F10PC |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 74F |
| Packaging | Tube |
| Part Status | Obsolete |
| Logic Type | NAND Gate |
| Number of Circuits | 3 |
| Number of Inputs | 3 |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Output High, Low | 1mA, 20mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 5ns @ 5V, 50pF |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-DIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Base Product Number | 74F10 |

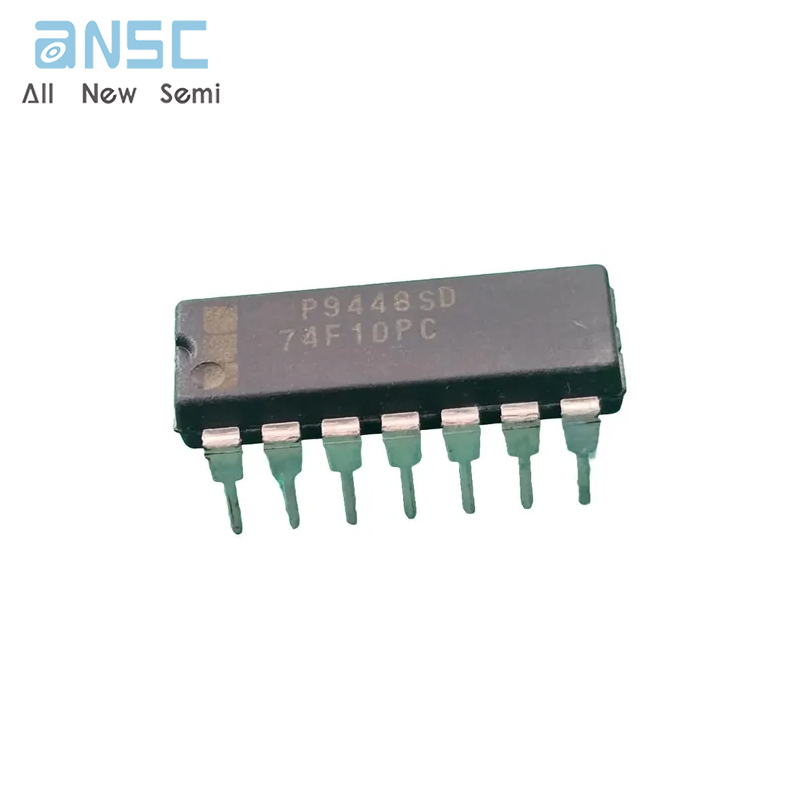

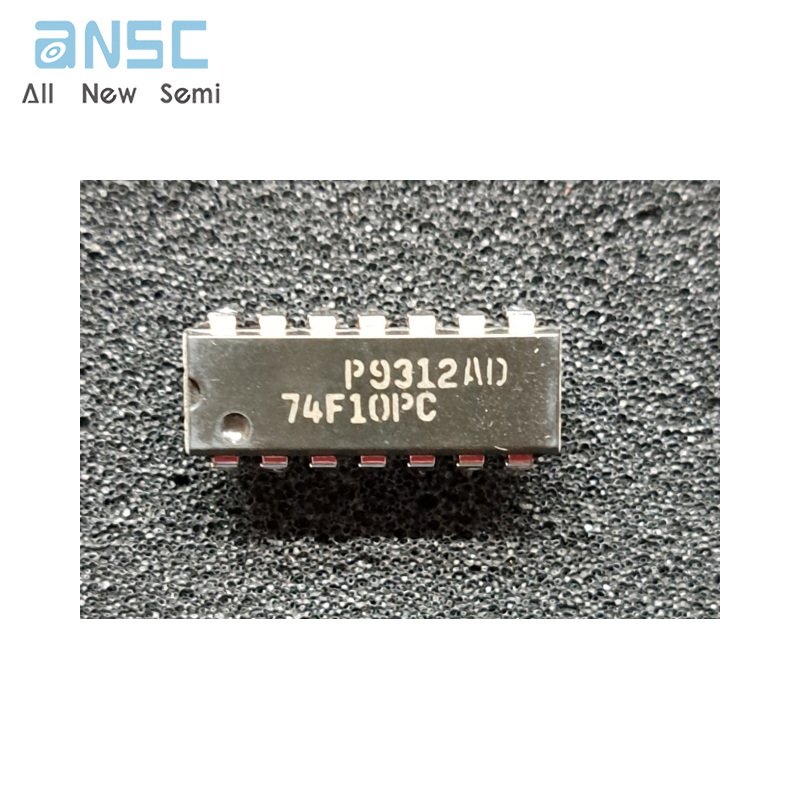

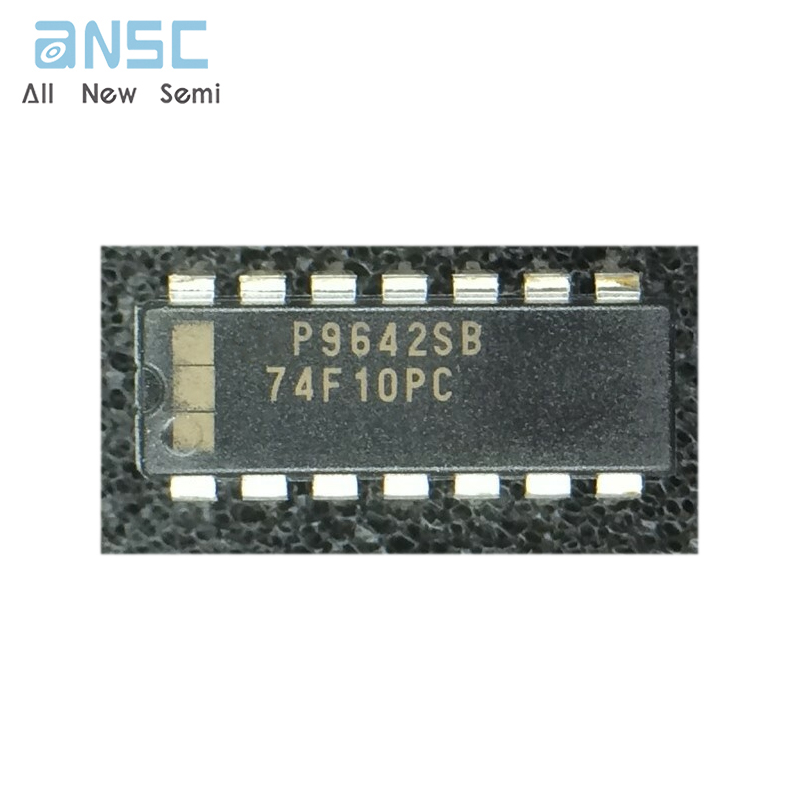

Product Photos
For more product information, please download the PDF
