Hot-selling and scarce MM74HC244N Octal 3-STATE Buffer DIP20 spot stock

Product Descriptions

The MM74HC244 is a non−inverting buffer and has two active low enables (1G and 2G); each enable independently controls 4 buffers. This device does not have Schmitt trigger inputs.

These 3−STATE buffers utilize advanced silicon−gate CMOS technology and are general purpose high speed non−inverting buffers. They possess high drive current outputs which enable high speed operation even when driving large bus capacitances. These circuits achieve speeds comparable to low power Schottky devices, while retaining the advantage of CMOS circuitry, i.e., high noise immunity, and low power consumption. All three devices have a fanout of 15 LS−TTL equivalent inputs.

All inputs are protected from damage due to static discharge by diodes to VCC and ground.

Product Features

 Typical Propagation Delay: 14 ns

 3−STATE Outputs for Connection to System Buses

 Wide Power Supply Range: 2–6 V

 Low Quiescent Supply Current: 160  A

 Output Current: 6 mA

 These are Pb−Free Devices

Product Specification

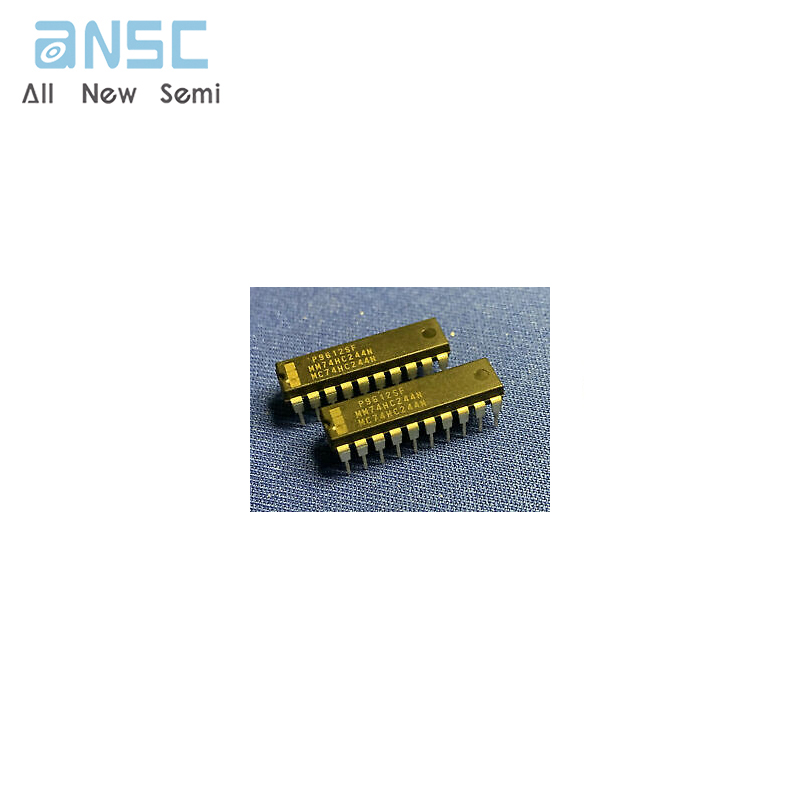

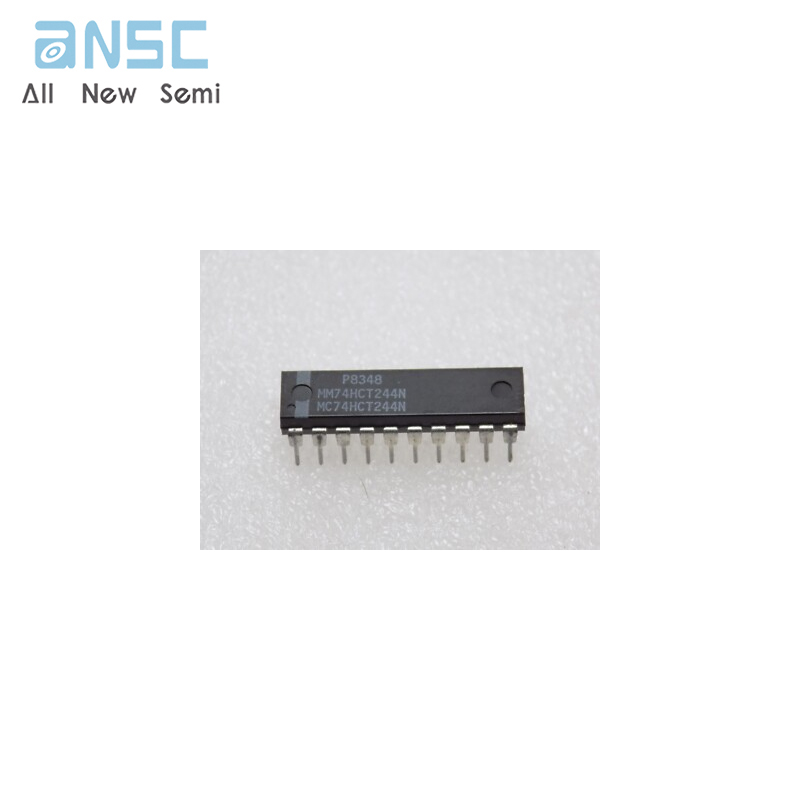

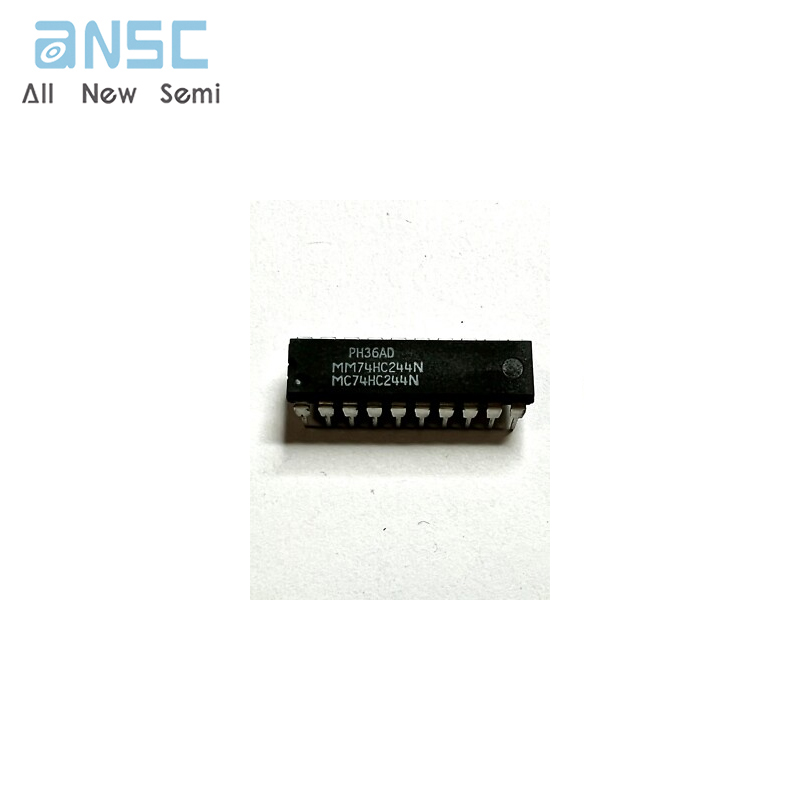

Product Photos

For more product information, please download the PDF
