74LCX16373MTDX Low Voltage 16-Bit Transparent Latch with 5V Tolerant Inputs and Outputs TSSOP48 spot stock

Product Descriptions

The LCX16373 contains sixteen non-inverting latches with3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. The flip-flops appear transparent  to  the  data when  the  Latch  Enable  (LE)  is HIGH.When LE is LOW,the data that meets the setup time is  latched.  Data  appears  on  the  bus  when  the  Output Enable (OE) is LOW. When OE is HIGH , the outputs are in a high impedance state.

The LCX16373 is designed for low voltage (2 .5V or 3.3V) V CC applications with capability of interfacing to a 5V signal environment.

The LCX16373

The LCX16373 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.

Product Features

■ 5V tolerant inputs and outputs

■ 2 .3V–3.6V V CC specifications provided

■ 5.4 ns tPD max (V CC     3.3V), 20 PA ICC max

■ Power down high impedance inputs and outputs

■ Supports live insertion/withdrawal (Note 1)

■ r24 mA output drive (V CC     3.0V)

■ Uses proprietary noise/EMI reduction circuitry

■ Latch-up performance exceeds 500 mA

■ ESD performance:

Human body model !2000V

Machine model !200V

■ Also  packaged  in  plastic  Fine-Pitch  Ball  Grid  Array (FBGA)

Product Specification

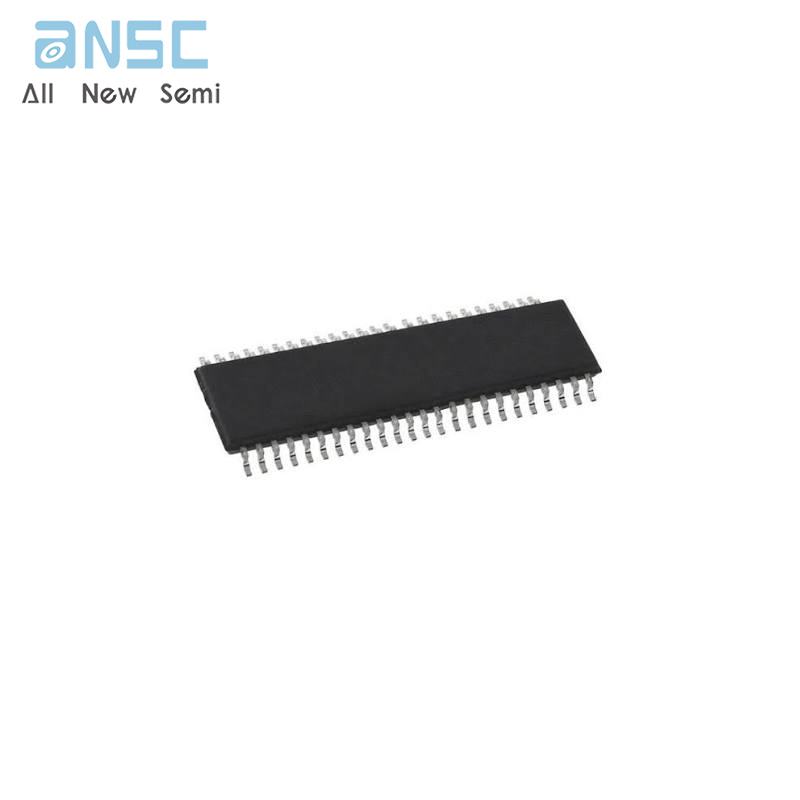

Product Photos

For more product information, please download the PDF
