Hot-selling and scarce DM74ALS32M Quad 2-Input OR Gate SOP14 spot stock
Manufacturer Product Number
DM74ALS32M
Description
DM74ALS32M Quad 2-Input OR Gate SOP14 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
This device contains four independent gates, each of which performs the logic OR function.
Product Features
■ Switching specifications at 50 pF
■ Switching specifications guaranteed over full tempera ture and VCC range
■ Advanced oxide-isolated, ion-implanted Schottky TTL process
■ Functionally and pin for pin compatible with Schottky and low power Schottky TTL counterpart
■ Improved AC performance over Schottky and low power Schottky counterparts
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-DM74ALS32M |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 74ALS |
| Packaging | Tube |
| Part Status | Obsolete |
| Logic Type | OR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Output High, Low | 400uA, 8mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 14ns @ 5V, 50pF |
| Operating Temperature | 0℃ ~ 70℃ (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Base Product Number | 74ALS32 |

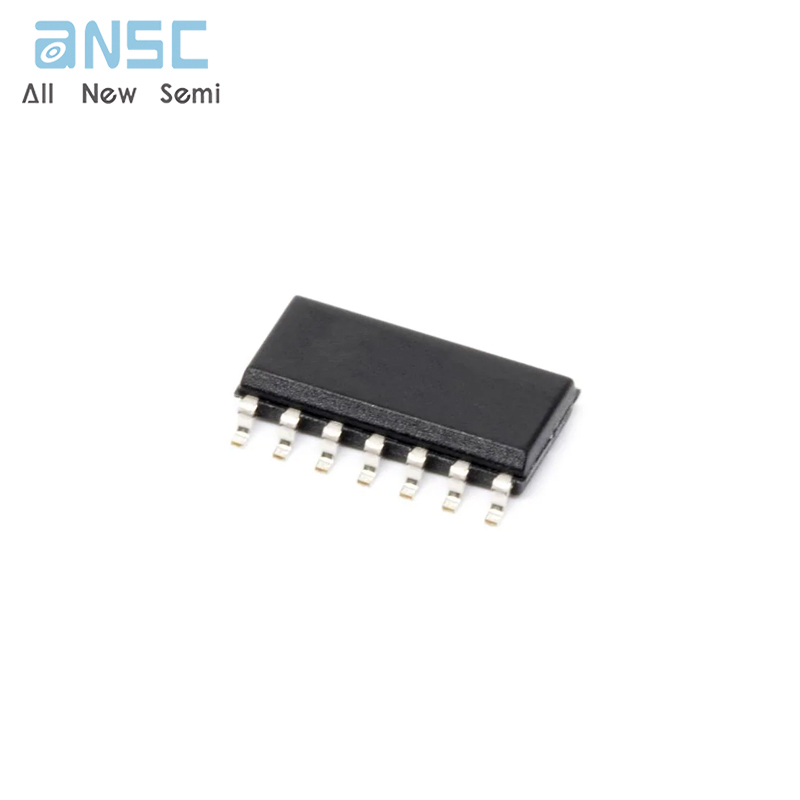

Product Photos
For more product information, please download the PDF
