Hot sale Original SN54ALS874BJT Logic IC OCTAL 4-BIT D-TYPE EDG Flip Flop 2 Element D-Type 4 Bit Positive Edge 24-CDIP
Manufacturer Product Number
SN54ALS874BJT
Description
SN54ALS874BJT Logic IC OCTAL 4-BIT D-TYPE EDG Flip Flop 2 Element D-Type 4 Bit Positive Edge 24-CDIP (0.300", 7.62mm)
Package Condition
Bulk
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| SN54ALS874BJT Overview Package Rail/Tubeembeds it. As configured, the output uses TTL. FPGAs belonging to the *series contain this type of chip. In total,there are 2 elements. A part of the electronic system is mounted in the way of Through Hole. This board is designed with 24pins on it.This device has Positive Edgeas its clock edge trigger type.An electronic part designed with 8bits is used in this application. If high efficiency is desired, the supply voltage should be kept at 5 V. -1 mA is set as the high level output current. In the low level output current setting, 12 mAis used. It is recommended that the operating temperature be below 125 °C. Ideally, the operating temperature should be higher than -55 °C. A minimum supply voltage of 4.5 V is required for these RS flip flops to operate. In this case, it supports a maximum supply voltage of 5.5 V. It is possible to achieve 25 MHz frequencies. SN54ALS874BJT Features Rail/Tube package * series 24 pins 8 Bits SN54ALS874BJT Applications SN54ALS874BJT Flip Flops applications. Bounce elimination switch Data storage Data transfer Latch Registers Memory Frequency division Memory Event Detectors Data Synchronizers |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC - SN54ALS874BJT |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Flip Flops | |
| Manufacturer | / |
| Series | 54ALS |
| Packaging | Bulk |
| Part Status | Active |
| Function | Master Reset |
| Type | D-Type |
| Output Type | Tri-State, Non-Inverted |
| Number of Elements | 2 |
| Number of Bits per Element | 4 |
| Clock Frequency | 25 MHz |
| Max Propagation Delay @ V, Max CL | 18ns @ 5V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 1mA, 12mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 32 mA |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Supplier Device Package | 24-CDIP |
| Package / Case | 24-CDIP (0.300", 7.62mm) |
| Base Product Number | 54ALS874 |

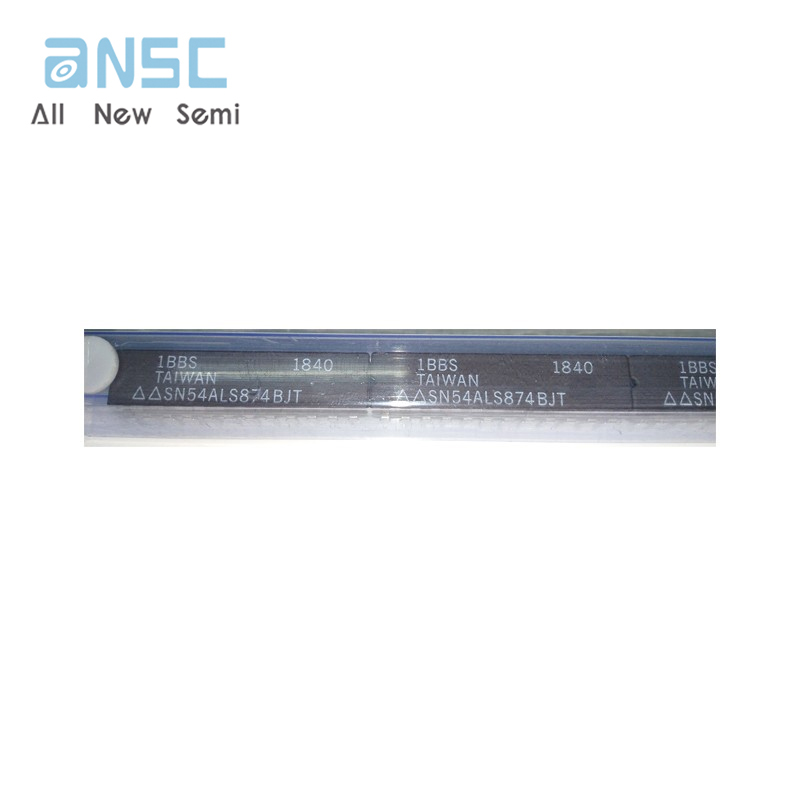

Actual image of the product

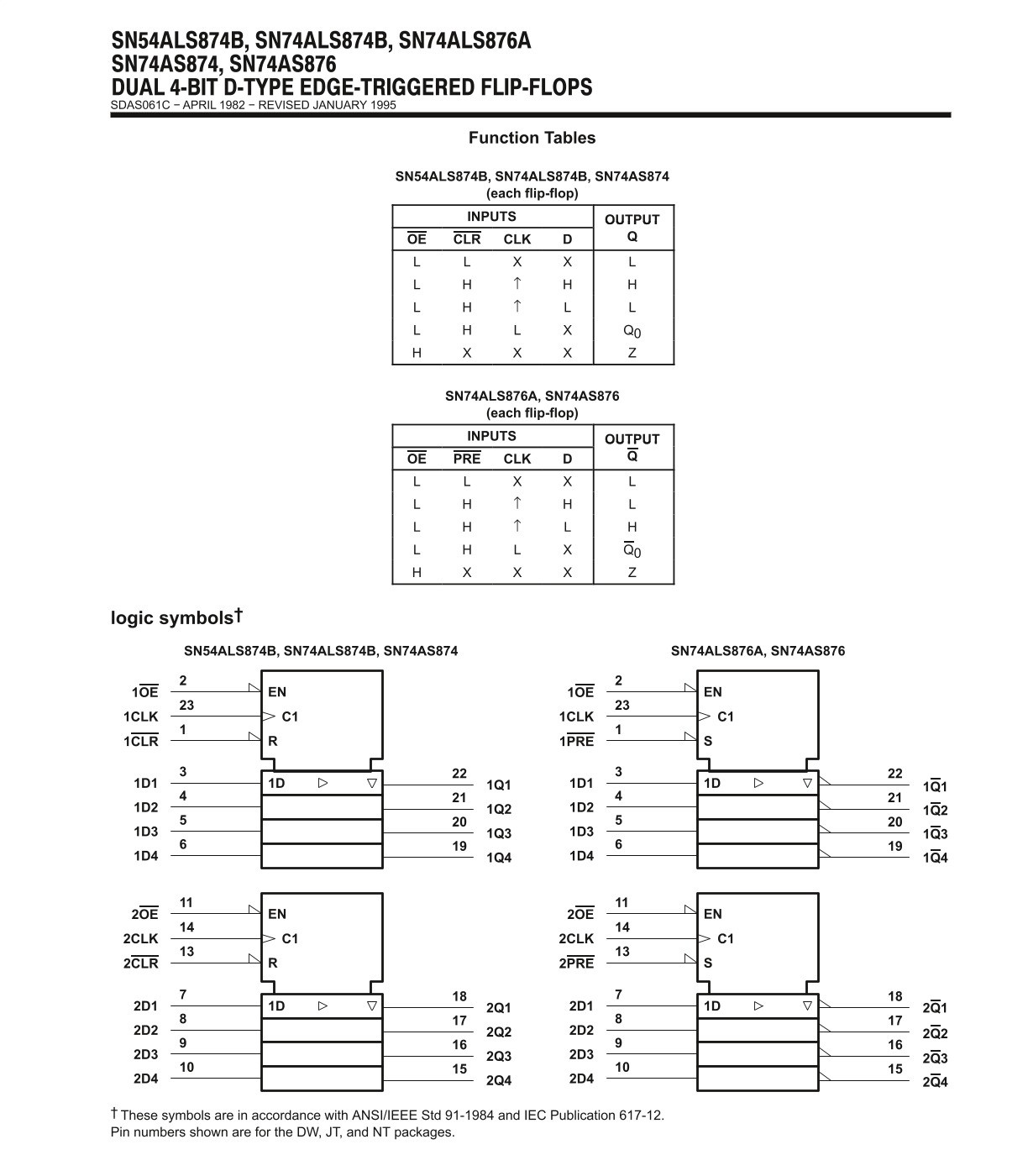

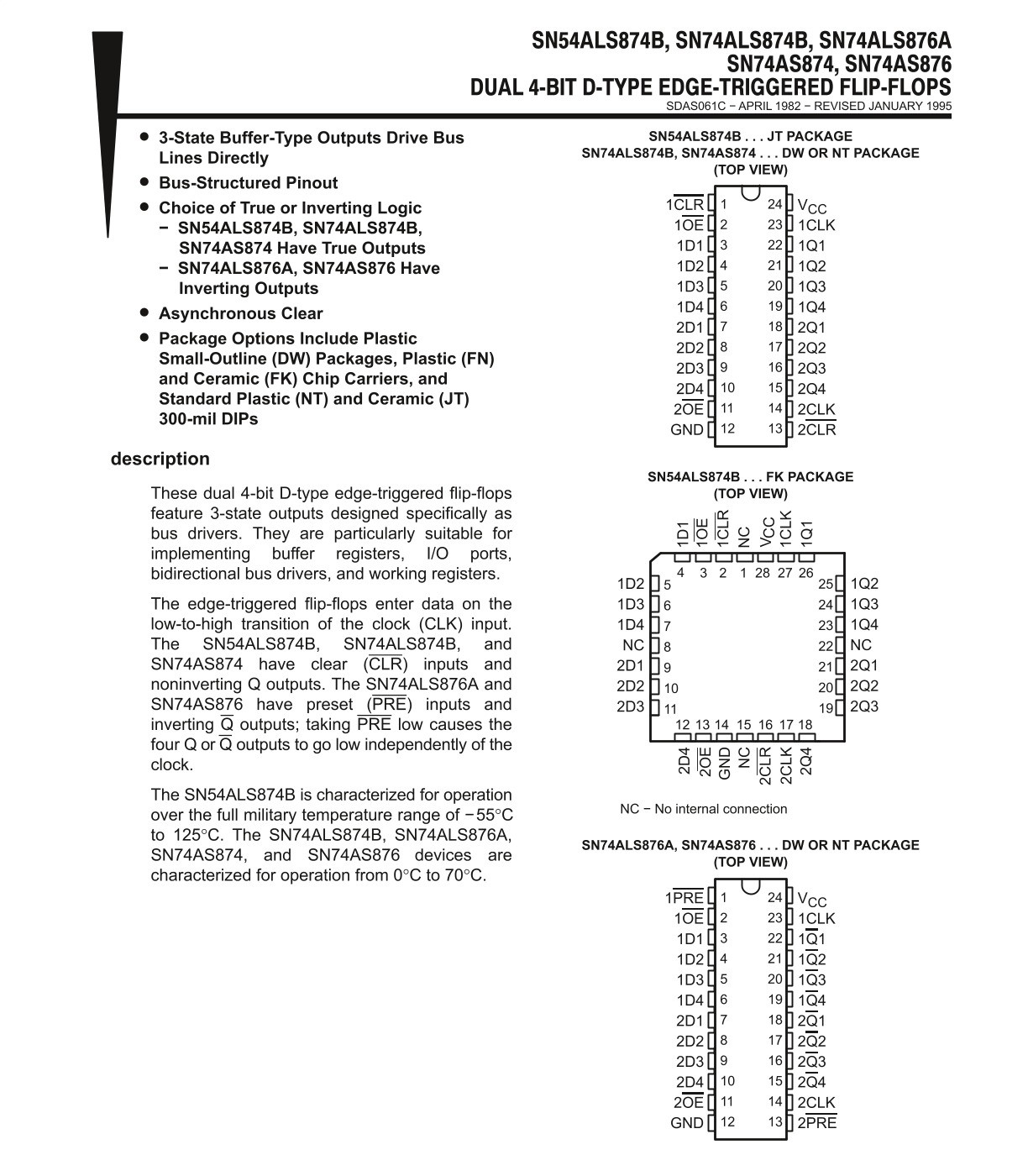

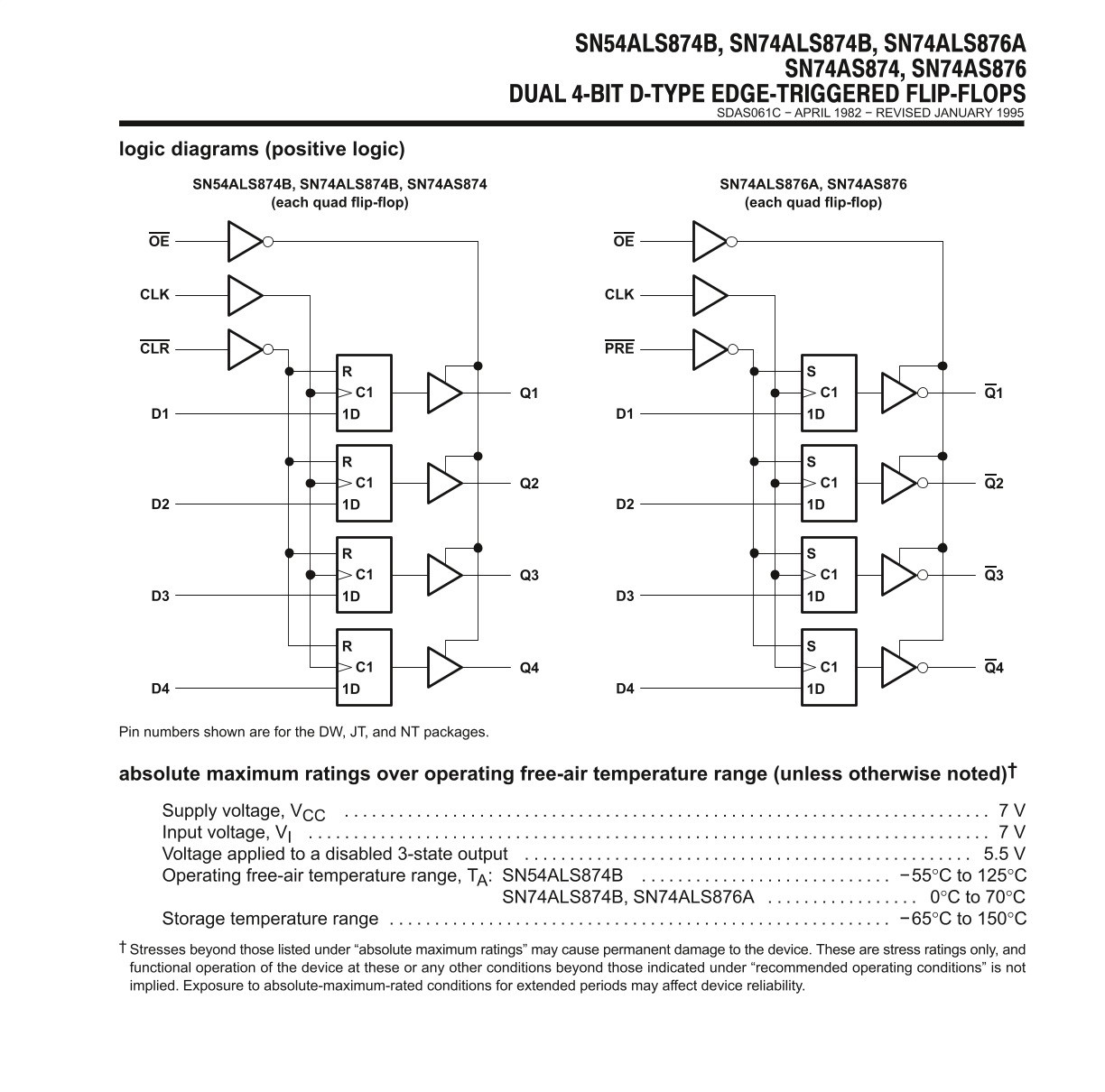

Product datasheet
For more information, please download
