Hot-selling and scarce CD74ACT08E QUADRUPLE 2-INPUT POSITIVE-AND GATES DIP14 spot stock
Manufacturer Product Number
CD74ACT08E
Description
CD74ACT08E QUADRUPLE 2-INPUT POSITIVE-AND GATES DIP14 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The ’ACT08 devices are quadruple 2-input positive-AND gates. These devices perform the Boolean function Y A • B or Y A
Product Features
Inputs Are TTL-Voltage Compatible
Speed of Bipolar F, AS, and S, With Significantly Reduced Power Consumption
Balanced Propagation Delays
Buffered Inputs
±24-mA Output Drive Current
– Fanout to 15 F Devices
SCR-Latchup-Resistant CMOS Process and Circuit Design
Exceeds 2-kV ESD Protection Per MIL-STD-883, Method 3015
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-CD74ACT08E |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 74ACT |
| Packaging | Tube |
| Part Status | Obsolete |
| Logic Type | AND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 4 uA |
| Current - Output High, Low | 24mA, 24mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 12.9ns @ 5V, 50pF |
| Operating Temperature | -55℃ ~ 125℃ |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Base Product Number | 74ACT08 |

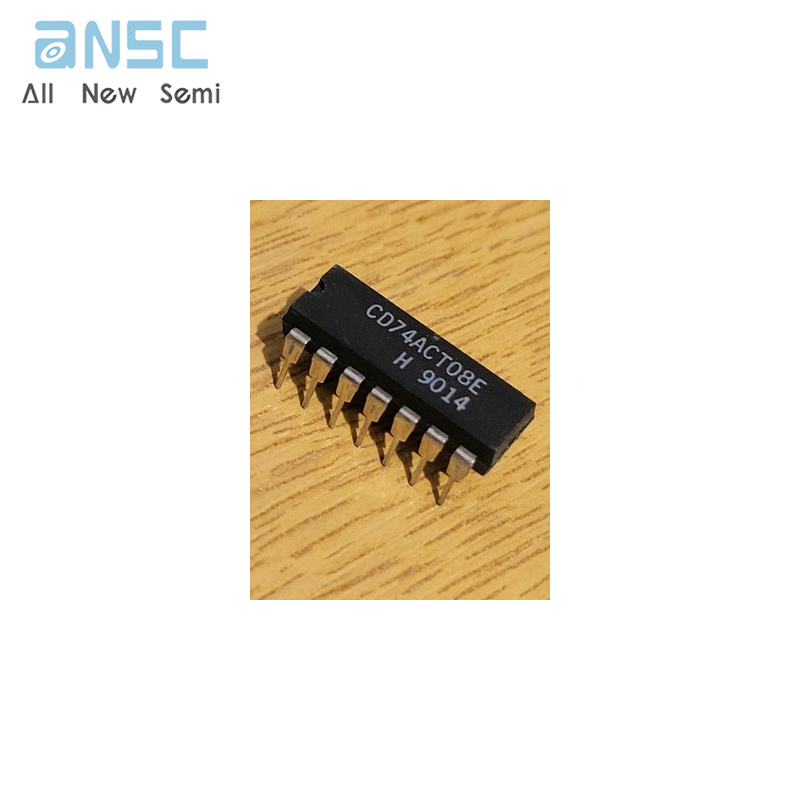

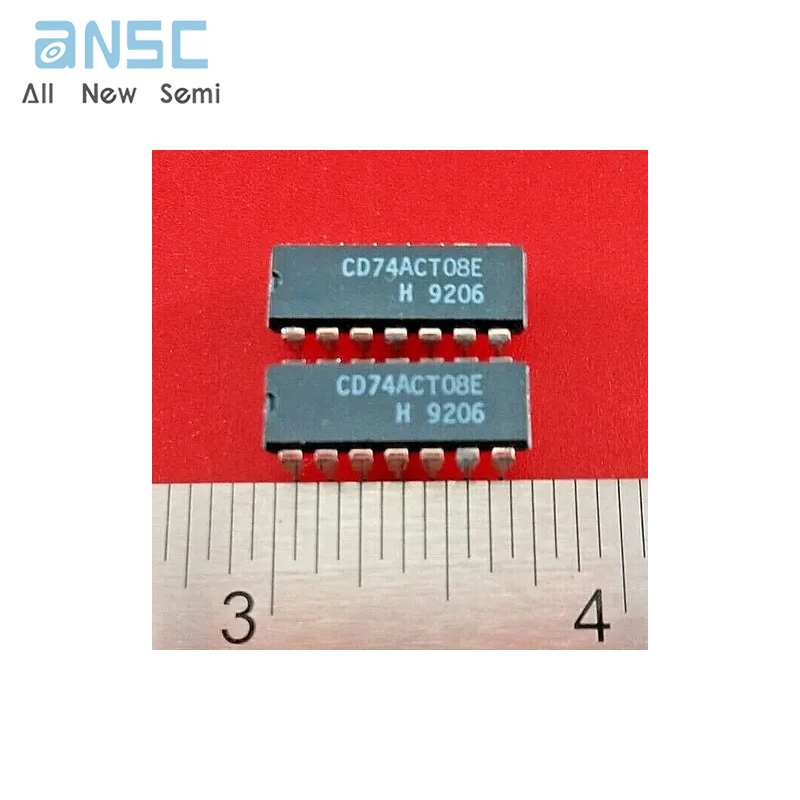

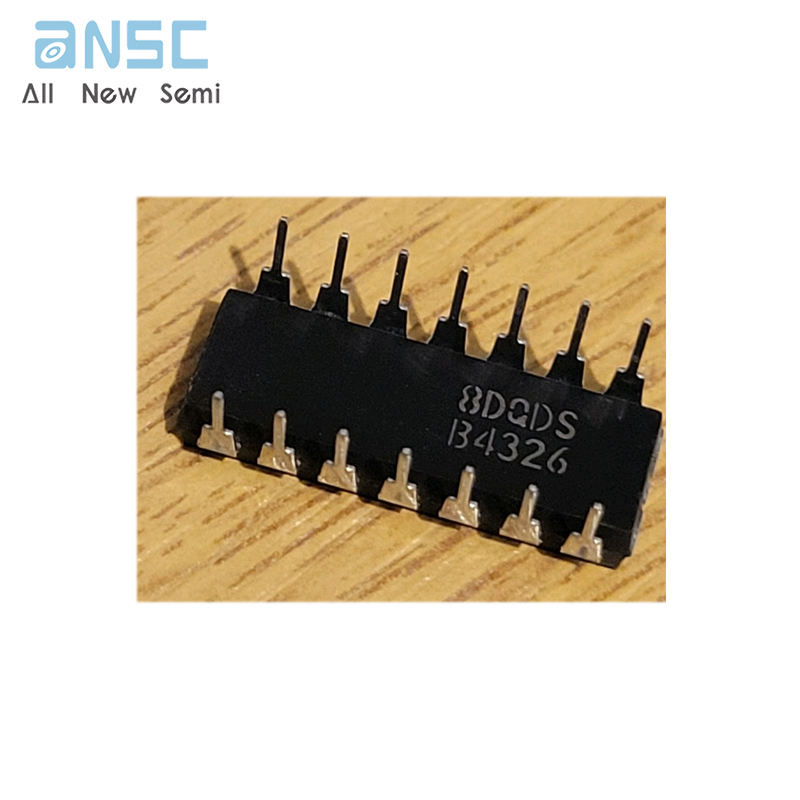

Product Photos
