Hot sale Original MM74C923WM Logic IC 20-KEY ENCODER 1X9:4 20-SOIC 20-Key Encoder 1 x 9:4 20-SOIC
Manufacturer
Manufacturer Product Number
MM74C923WM
Description
MM74C923WM Logic IC 20-KEY ENCODER 1X9:4 20-SOIC 20-Key Encoder 1 x 9:4 20-SOIC
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| General Description The MM74C922 and MM74C923 CMOS key encoders provide all the necessary logic to fully encode an array of SPST switches. The keyboard scan can be implemented by either an external clock or external capacitor. These encoders also have on-chip pull-up devices which permit switches with up to 50 kΩon resistance to be used. Features ■ 50 kΩmaximum switch on resistance ■ On or off chip clock ■ On-chip row pull-up devices ■ 2 key roll-over ■ Keybounce elimination with single capacitor ■ Last key register at outputs ■ 3-STATE output LPTTL compatible ■ Wide supply range: 3V to 15V ■ Low power consumption |
Product Description
| Type | Description |
| ANSC PART# | ANSC- MM74C923WM |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Signal Switches, Multiplexers, Decoders | |
| Manufacturer | Original |
| Series | 74C |
| Packaging | Tube |
| Part Status | Obsolete |
| Type | 20-Key Encoder |
| Circuit | 1 x 9:4 |
| Independent Circuits | 1 |
| Current - Output High, Low | 15mA, 16mA |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 3V ~ 15V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| Base Product Number | 74C923 |

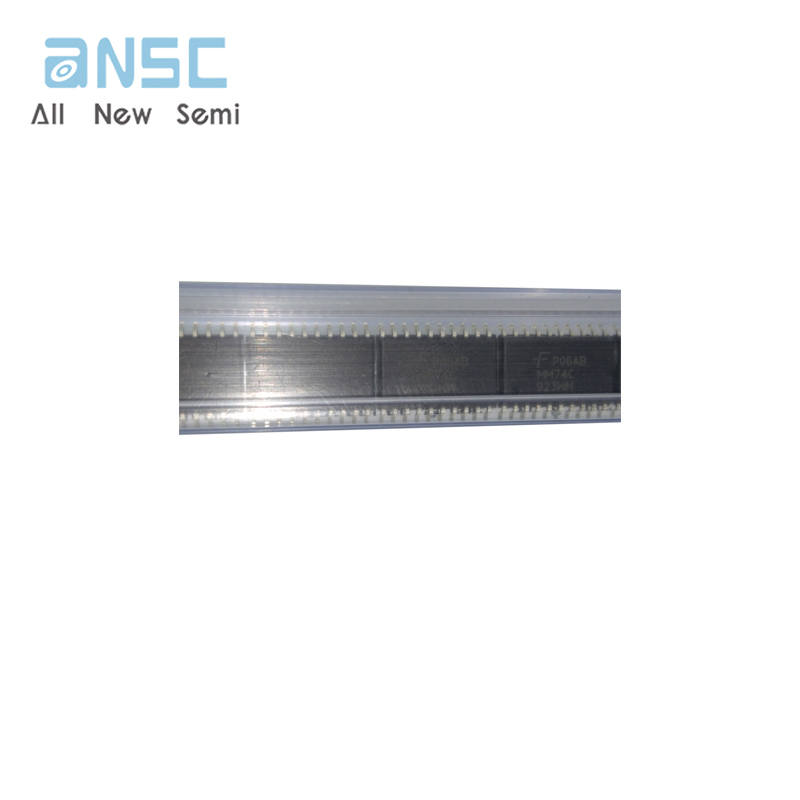

Actual image of the product

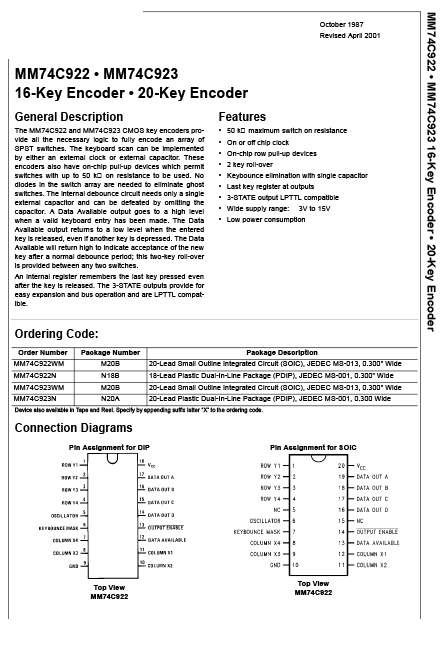

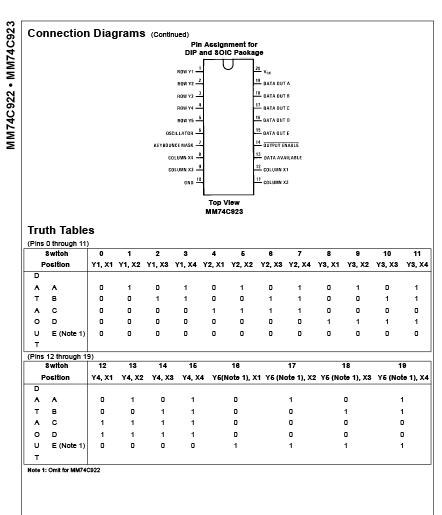

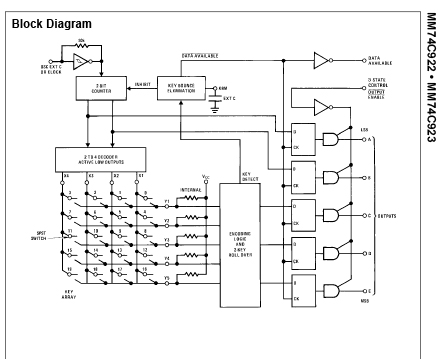

Product datasheet
