Hot sale Original SNJ54LS32J IC Logic Gate 4-ch 2-input 4.5V-5.5V low-power bipolar OR gate with TTL-compatible inputs 14-CDIP
Manufacturer Product Number
SNJ54LS32J
Description
Original SNJ54LS32J IC Logic Gate 4-ch 2-input 4.5V-5.5V low-power bipolar OR gate with TTL-compatible inputs 14-CDIP
Package Condition
tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| description The SN54ACT16244 and 74ACT16244 are 16-bit buffers/line drivers designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. They can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. The devices provide true outputs and symmetrical OE (active-low) output-enable inputs. The 74ACT16244 is packaged in shrink small-outline package, which provides twice the I/O pin count and functionality of standard small-outline packages in the same printed-circuit-board area. The SN54ACT16244 is characterized for operation over the full military temperature range of –55°C to 125°C. The 74ACT16244 is characterized for operation from –40°C to 85°C. ● Members of the Widebus™ Family ● Inputs Are TTL-Voltage Compatible ● 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers ● Flow-Through Architecture Optimizes PCB Layout ● Distributed VCC and GND Pin Configurations Minimize High-Speed Switching Noise ● EPIC™ (Enhanced-Performance Implanted CMOS) 1-μm Process ● 500-mA Typical Latch-Up Immunity at 125°C ● Package Options Include Plastic Shrink Small-Outline (DL) and Thin Shrink Small-Outline (DGG) Packages, and 380-mil Fine-Pitch Ceramic Flat (WD) Packages Using 25-mil Center-to-Center Pin Spacings |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- SNJ54LS32J |
| Ihs Manufacturer | Original |
| Part Package Code | DIP |
| Package Description | DIP, DIP14,.3 |
| Pin Count | 14 |
| Samacsys Manufacturer | / |
| Family | LS |
| JESD-30 Code | R-GDIP-T14 |
| JESD-609 Code | e0 |
| Length | 19.56 mm |
| Load Capacitance (CL) | 15 pF |
| Logic IC Type | OR GATE |
| Max I(ol) | 0.0008 A |
| Number of Functions | 4 |
| Number of Inputs | 2 |
| Number of Terminals | 14 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Equivalence Code | DIP14,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Packing Method | TUBE |
| Power Supply Current-Max (ICC) | 9.8 mA |
| Prop. Delay@Nom-Sup | 22 ns |
| Propagation Delay (tpd) | 22 ns |
| Qualification Status | Not Qualified |
| Schmitt Trigger | NO |
| Screening Level | MIL-PRF-38535 |
| Seated Height-Max | 5.08 mm |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | MILITARY |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |

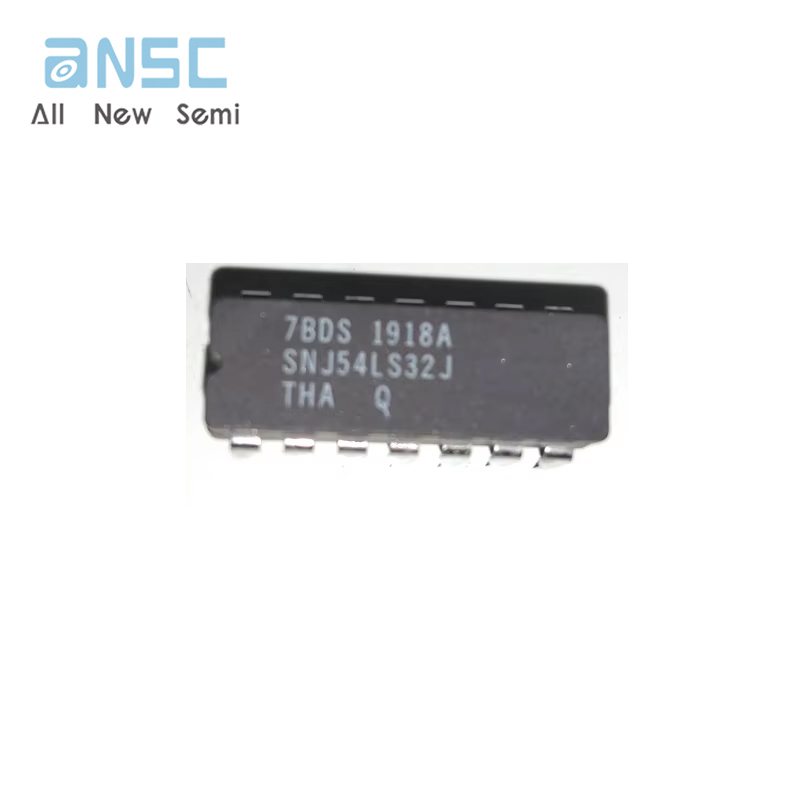

Actual image of the product
