Hot-selling and scarce SN74ALS245ADW OCTAL BUS TRANSCEIVERS WITH 3-STATE OUTPUTS SOP20 spot stock
Manufacturer Product Number
SN74ALS245ADW
Description
SN74ALS245ADW OCTAL BUS TRANSCEIVERS WITH 3-STATE OUTPUTS SOP20 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
4.5-V to 5.5-V VCC Operation
Max tpd of 5.5 ns at 5 V
3-State Outputs Drive Bus Lines Directly
pnp Inputs Reduce dc Loading
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN74ALS245ADW |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers | |
| Transceivers | |
| Manufacturer | - |
| Series | 74ALS |
| Packaging | Tube |
| Part Status | Obsolete |
| Logic Type | Transceiver, Non-Inverting |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Output Type | 3-State |
| Current - Output High, Low | 15mA, 24mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| Base Product Number | 74ALS245 |

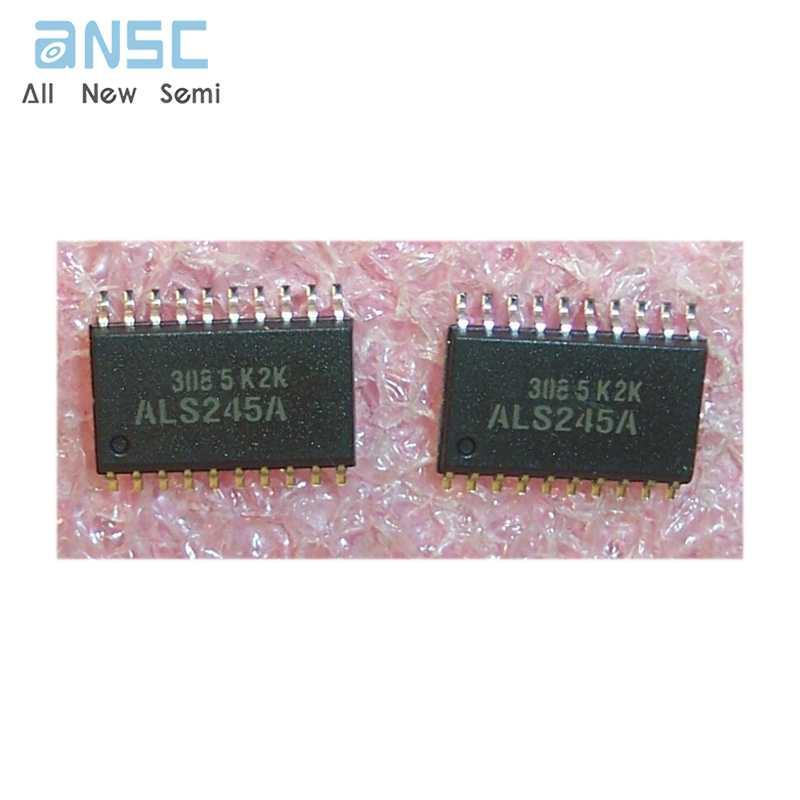

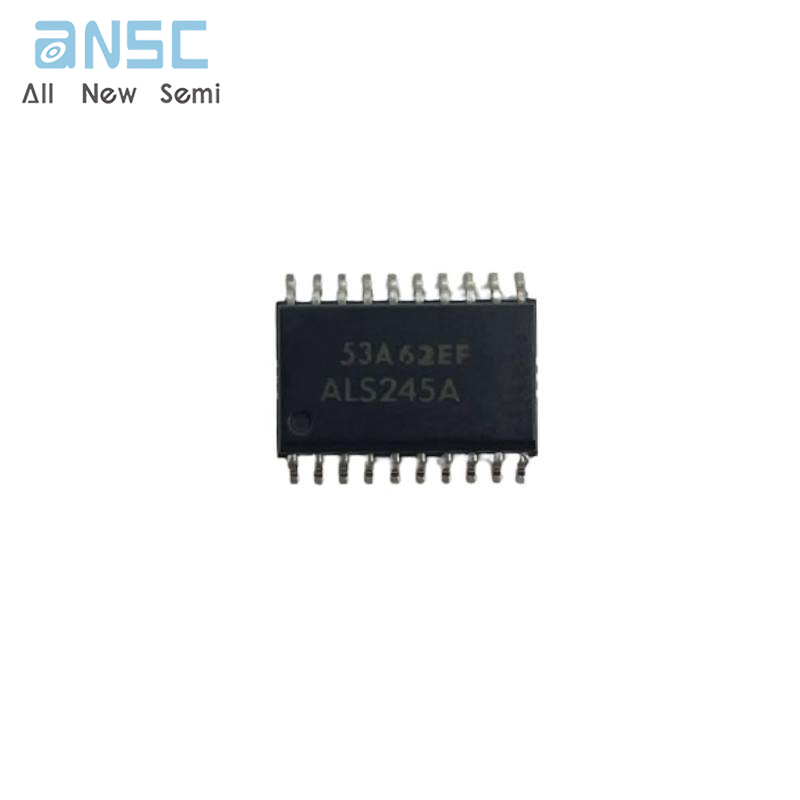

Product Photos
For more product information, please download the PDF
