Hot-selling and scarce SN74HCT240DW Octal Buffers and Line Drivers With 3-State Outputs SOP20 spot stock
Manufacturer Product Number
SN74HCT240DW
Description
SN74HCT240DW Octal Buffers and Line Drivers With 3-State Outputs SOP20 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
These octal buffers and line drivers are designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The ’HCT240 devices are organized as two 4-bit buffers/drivers with separate output-enable (OE) inputs. When OE is low, the device passes inverted data from the A inputs to the Y outputs. When OE is high, the outputs are in the high-impedance state.
Product Features
• Operating voltage range of 4.5V to 5.5V
• High-current outputs drive up to 15 LSTTL loads
• Low power consumption, 80μA max ICC
• Typical tpd = 12 ns
• ±6mA output drive at 5V
• Low input current of 1μA max
• Inputs are TTL-voltage compatible
• 3-state outputs drive bus lines or buffer memory address registers
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN74HCT240DW |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Buffers, Drivers, Receivers | |
| Transceivers | |
| Manufacturer | - |
| Series | 74HCT |
| Packaging | Tube |
| Part Status | Obsolete |
| Logic Type | Buffer, Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 4 |
| Output Type | 3-State |
| Current - Output High, Low | 6mA, 6mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| Base Product Number | 74HCT240 |

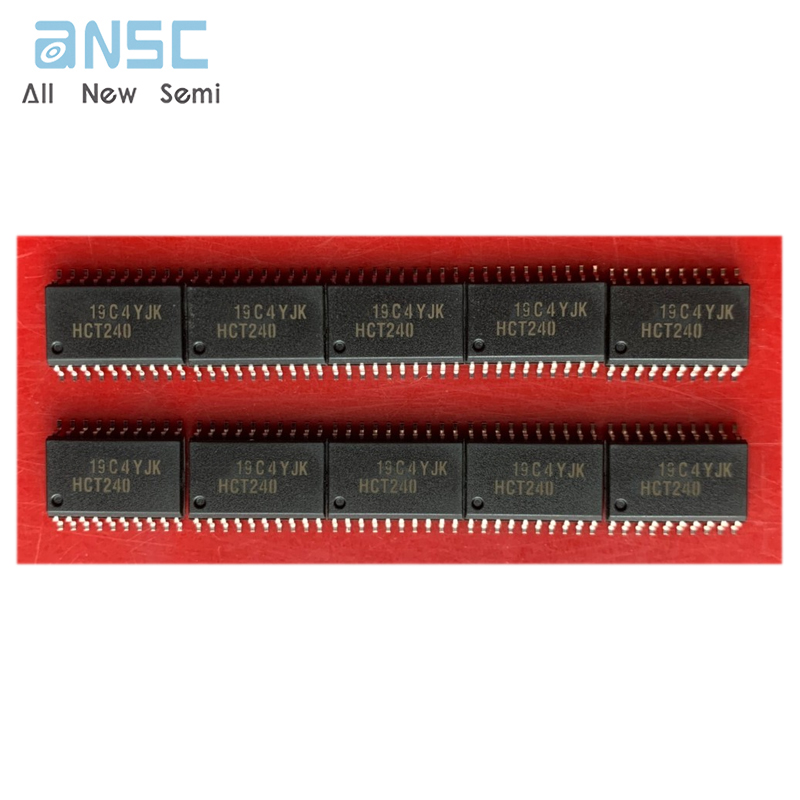

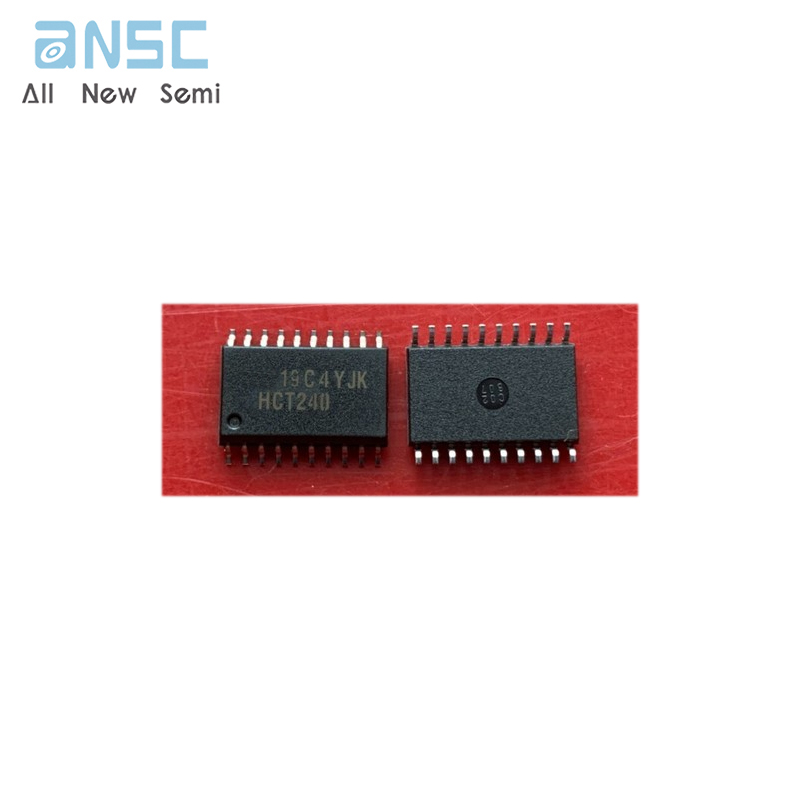

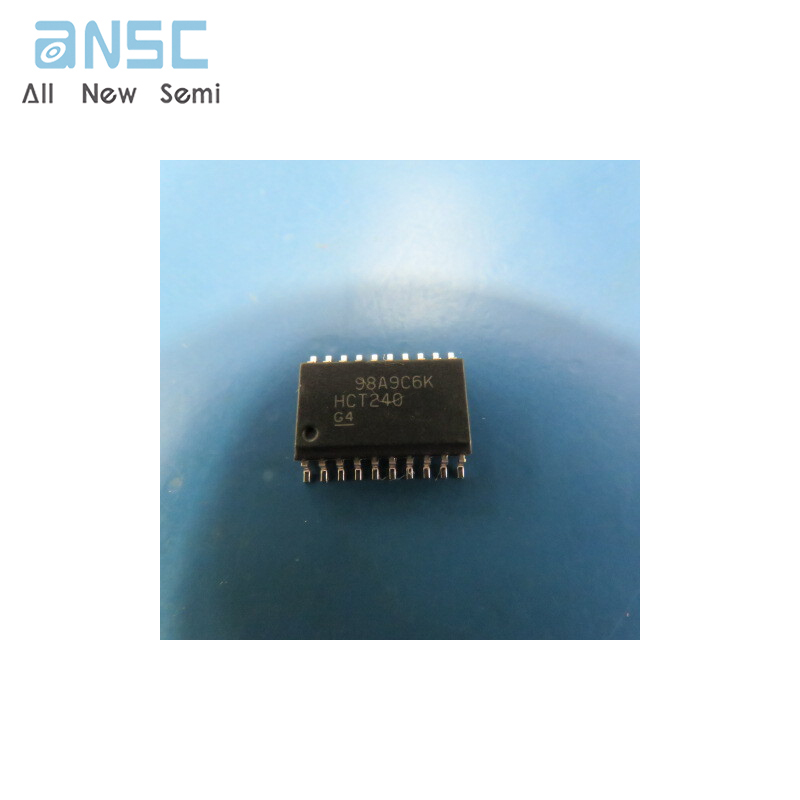

Product Photos
For more product information, please download the PDF
