Hot-selling and scarce 74HC74D,652 Dual D-type flip-flop with set and reset 14-SOIC spot stock

Product Descriptions

The 74HC74 and 74HCT74 are dual positive edge triggered D-type flip-flop . They have individualdata (nD), clock (nCP), set (nSD) and reset (nRD) inputs, and complementary nQ and nQ outputs .Data at the nD-input, that meets the set-up and hold time requirements on the LOW-to-HIGH clocktransition, is stored in the flip-flop and appears at the nQ output . Schmitt-trigger action in the clockinput, makes the circuit highly tolerant to slower clock rise and fall times . Inputs include clampdiodes that enable the use of current limiting resistors to interface inputs to voltages in excess ofV CC .

Product Features

•    Wide supply voltage range from 2.0 to 6.0 V

•    CMOS low power dissipation

•    High noise immunity

•    Input levels:

•    For 74HC74: CMOS level

•    For 74HCT74: TTL level

•    Symmetrical output impedance

•    High noise immunity

•    Balanced propagation delays

•    Latch-up performance exceeds 100 mA per JESD 78 Class II Level B

•    Complies with JEDEC standards:

•    JESD8C (2 .7 V to 3.6 V)

•    JESD7A (2 .0 V to 6.0 V)

•    ESD protection:

•    HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V

•    CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V

•    Multiple package options

•    Specified from -40 °C to +85 °C and from -40 °C to +125 °C

Product Specifications

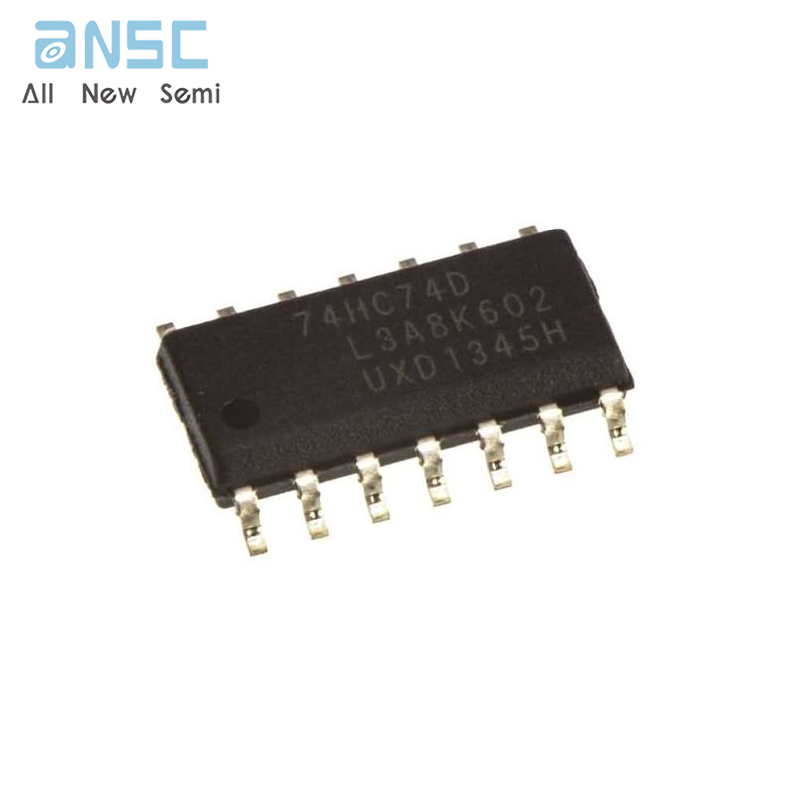

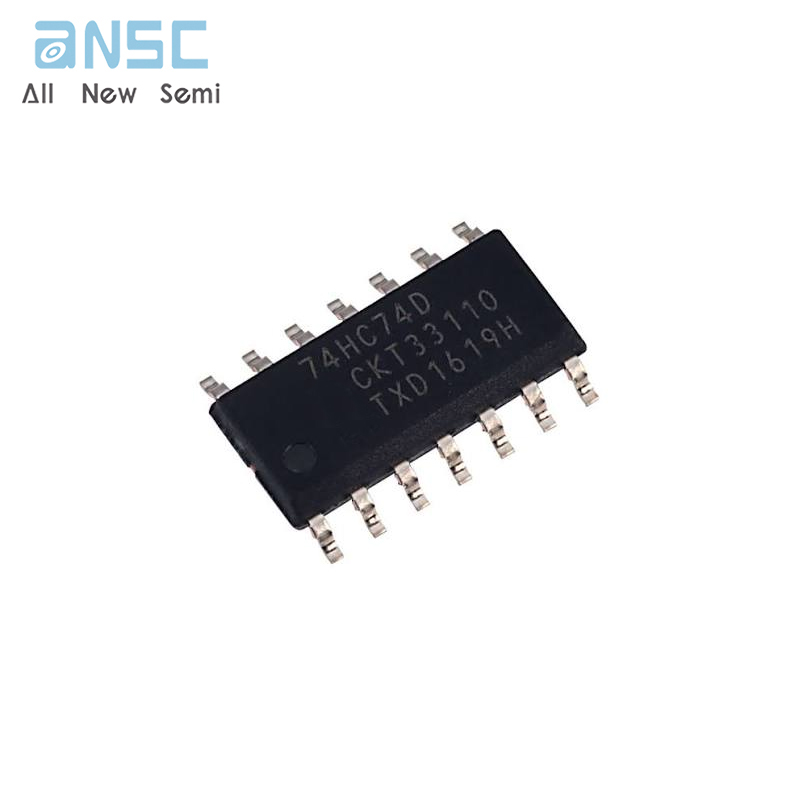

Product Photos

For more product information, please download the PDF
