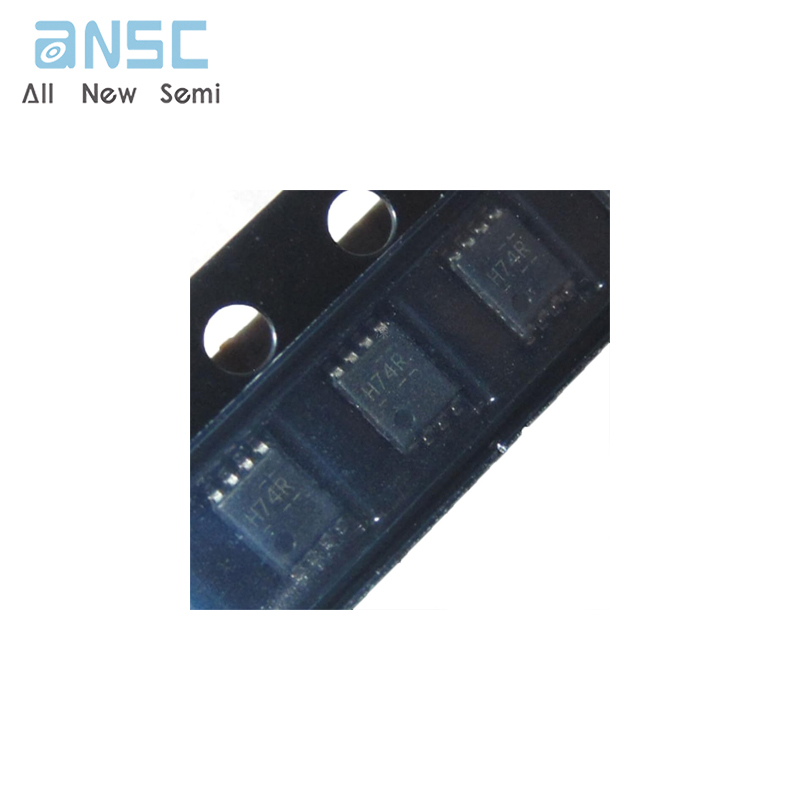

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
SN74AUP1G74DCUR LOW-POWER SINGLE POSITIVE-EDGE-TRIGGERED D-TYPE FLIP-FLOP WITH CLEAR AND PRESET VSSOP8 spot stock
Manufacturer Product Number
SN74AUP1G74DCUR
Description
SN74AUP1G74DCUR LOW-POWER SINGLE POSITIVE-EDGE-TRIGGERED D-TYPE FLIP-FLOP
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• Available in the Texas Instruments NanoStar™ and NanoFree™ Packages
• Low Static-Power Consumption: ICC = 0.9 µA Max
• Low Dynamic-Power Consumption:Cpd = 4.3 pF Typ at 3.3 V
• Low Input Capacitance: Ci= 1.5 pF Typ
• Low Noise – Overshoot and Undershoot <10% of VCC
• Ioff Supports Partial-Power-Down Mode Operation
• Schmitt-Trigger Action Allows Slow Input Transition and Better Switching Noise Immunity at the Input (Vhys = 250 mV Typ at 3.3 V)
• Wide Operating VCC Range of 0.8 V to 3.6 V
• Optimized for 3.3-V Operation
• 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
• tpd = 4.3 ns Max at 3.3 V
• Suitable for Point-to-Point Applications
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Performance Tested Per JESD 22
– 2000-V Human-Body Model (A114-B, Class II)
– 200-V Machine Model (A115-A)
– 1000-V Charged-Device Model (C101)
• ESD Protection Exceeds ±5000 V With Human-Body Model
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN74AUP1G74DCUR |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Flip Flops | |
| Manufacturer | - |
| Series | 74AUP |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Function | Set(Preset) and Reset |
| Type | D-Type |
| Output Type | Complementary |
| Number of Elements | 1 |
| Number of Bits per Element | 1 |
| Clock Frequency | 100 MHz |
| Max Propagation Delay @ V, Max CL | 7ns @ 3.3V, 30pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 4mA, 4mA |
| Voltage - Supply | 0.8V ~ 3.6V |
| Current - Quiescent (Iq) | 500 nA |
| Input Capacitance | 1.5 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-VSSOP |
| Package / Case | 8-VFSOP (0.091", 2.30mm Width) |
| Base Product Number | 74AUP1G74 |
