Hot-selling and scarce 74LCX74MTCX Low Voltage Dual D‐Type Positive Edge‐Triggered Flip‐Flop SOP14 spot stock

Product Descriptions

The LCX74 is a dual D-type flip-flop with Asynchronous Clear and Set inputs and complementary (Q, Q) outputs. Information at the input is transferred to the outputs on the positive edge of the clock pulse. After the Clock Pulse input threshold voltage has been passed, the Data input is locked out and information present will not be transferred to the outputs until the next rising edge of the Clock Pulse input.

Asynchronous Inputs:

• LOW input to S_D (Set) sets Q to HIGH level

• LOW input to C_D (Clear) sets Q to LOW level

• Clear and Set are independent of clock

• Simultaneous LOW on C_D and S_D makes both Q and Q HIGH

Product Features

• 5 V Tolerant Inputs

•  1.65 V − 5.5 V V CC Specifications Provided

• 7.0 ns tPD Max. (VCC = 3.3 V)

•  10 A ICC Max.

• Power Down High Impedance Inputs and Outputs

• ±24 mA Output Drive (VCC = 3.0 V)

• Implements Proprietary Noise/EMI Reduction Circuitry

• Latch-up Performance Exceeds JEDEC 78 Conditions

• ESD Performance:

♦  Human Body Model > 2000 V

• These Devices are Pb-Free, Halide Free and are RoHS Compliant

Product Specification

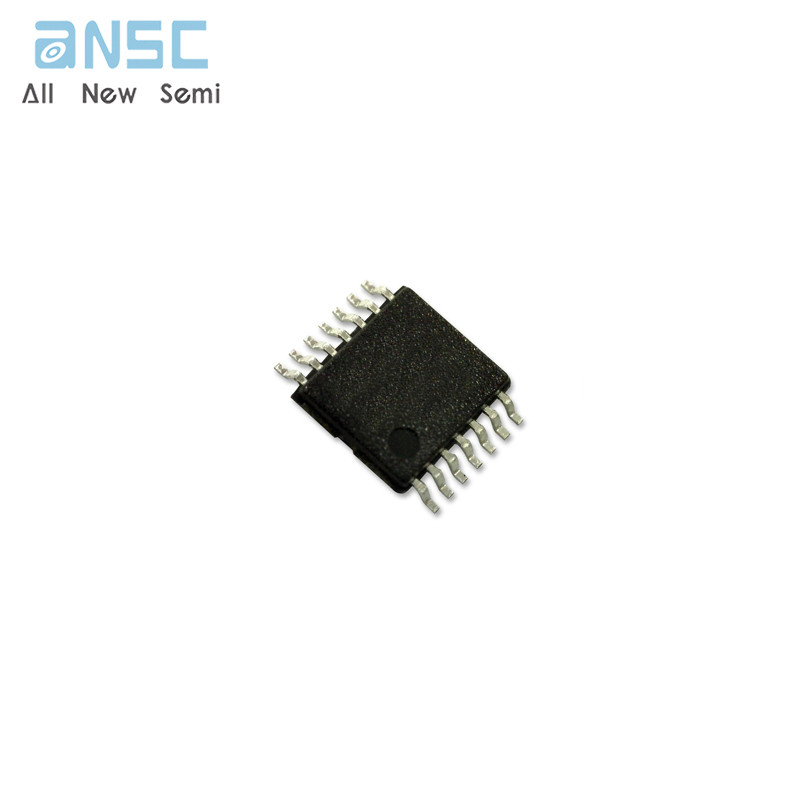

Product Photos

For more product information, please download the PDF
