Spot sales of 74LS164N Low Power Schottky Logic IC DIP-14

Product Descriptions

The 74LS164 is fabricated on a 2µm 40V Bipolar process. The device consists of x2 serial data inputs, A and B, provided so that one input can be used as a data enable. Data is entered on each rising edge of the clock. A LOW on the master reset input (CLR) clears the register, forcing all outputs LOW, independent of other inputs. All inputs are equipped with Schottky clamp diodes to limit termination effects & achieve high speed. These input circuits also protect against static discharge & transient excess voltage.

Product Features

Aysnchronous Master Reset

Gated Serial Data Input

Fully Synchronous Data Transfers

Direct drop-in replacement for obsolete components in long term programs.

Industrial temperature range.

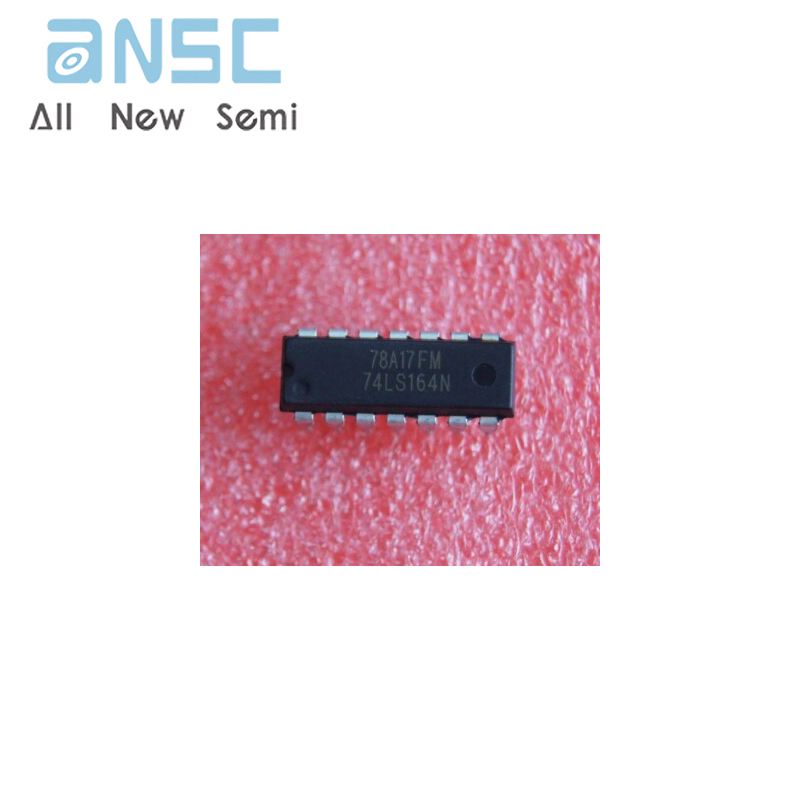

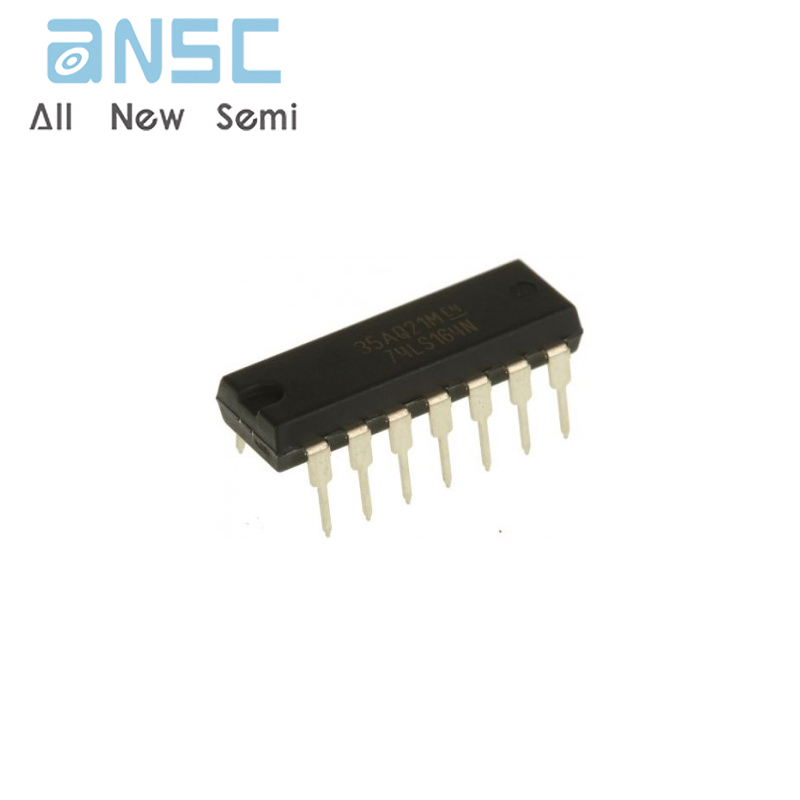

Product Photos

For more product information, please download the PDF
