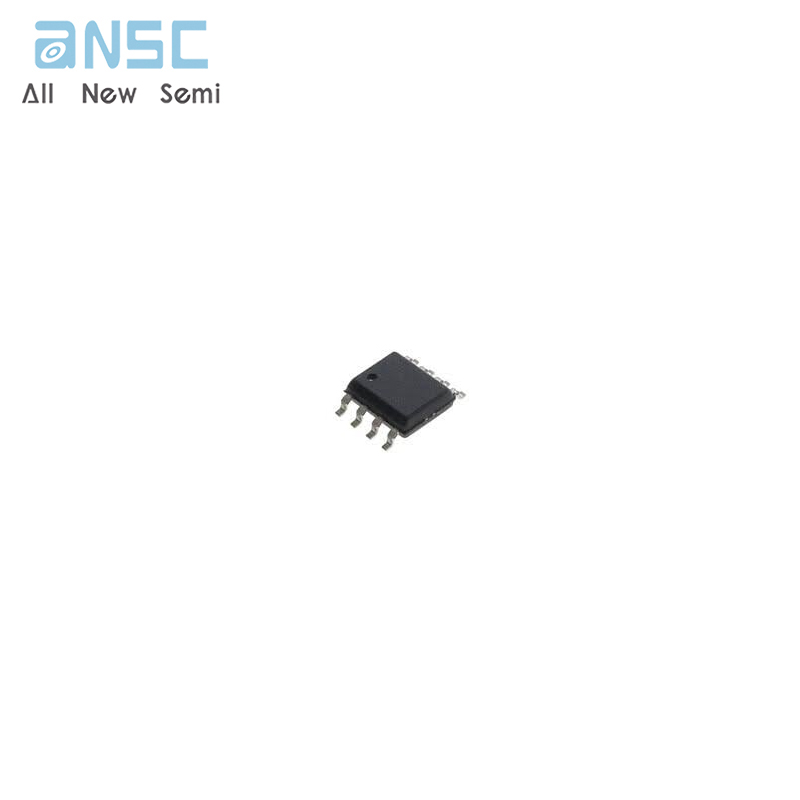

Hot-selling and scarce MC100EL52DR2 5V ECL Differential Data and Clock D Flip-Flop SOP8 spot stock

Product Descriptions

The MC10EL/100EL52 is a differential data, differential clock D flip-flop with reset. The device is functionally equivalent to the E452 device with higher performance capabilities. With propagation delays and output transition times significantly faster than the E452, the EL52 is ideally suited for those applications which require the ultimate in AC performance.

Data enters the master portion of the flip-flop when the clock is LOW and is transferred to the slave, and thus the outputs, upon a positive transition of the clock. The differential clock inputs of the EL52 allow the device to also be used as a negative edge triggered device.

The EL52 employs input clamping circuitry so that under open input conditions (pulled down to VEE) the outputs of the device will remain stable.

The 100 Series contains temperature compensation.

Product Features

• 365 ps Propagation Delay

• 2.0 GHz Toggle Frequency

• ESD Protection:

♦ > 1 kV Human Body Model

♦ > 100 V Machine Model

• PECL Mode Operating Range: VCC = 4.2 V to 5.7 V with VEE = 0 V

• NECL Mode Operating Range: VCC = 0 V with VEE = −4.2 V to −5.7 V

• Internal Input Pulldown Resistors on D and CLK

• Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test

• Moisture Sensitivity:

♦ Level 1 for SOIC−8 NB

♦ Level 3 for TSSOP−8

♦ For Additional Information, see Application Note AND8003/D

• Flammability Rating: UL 94 V−0 @ 0.125 in, Oxygen: Index 28 to 34

• Transistor Count = 48 Devices

• These Devices are Pb-Free, Halogen Free and are RoHS Compliant
