You can contact me for the best price MC14490DW IC Hex Contact Bounce Eliminator Hot sale Original
Manufacturer Product Number
MC14490DW
Description
MC14490DW IC Hex Contact Bounce Eliminator Hot sale Original
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
The MC14490 is constructed with complementary MOS enhancement mode devices, and is used for the elimination of extraneous level changes that result when interfacing with mechanical contacts. The digital contact bounce eliminator circuit takes an input signal from a bouncing contact and generates a clean digital signal four clock periods after the input has stabilized. The bounce eliminator circuit will remove bounce on both the “make” and the “break” of a contact closure. The clock for operation of the MC14490 is derived from an internal R–C oscillator which requires only an external capacitor to adjust for the desired operating frequency (bounce delay). The clock may also be driven from an external clock source or the oscillator of another MC14490 (see Figure 5). • Diode Protection on All Inputs • Six Debouncers Per Package • Internal Pullups on All Data Inputs • Can Be Used as a Digital Integrator, System Synchronizer, or Delay Line • Internal Oscillator (R–C), or External Clock Source • TTL Compatible Data Inputs/Outputs • Single Line Input, Debounces Both “Make” and “Break” Contacts • Does Not Require “Form C” (Single Pole Double Throw) Input Signal • Cascadable for Longer Time Delays • Schmitt Trigger on Clock Input (Pin 7) • Supply Voltage Range = 3.0 V to 18 V • Chip Complexity: 546 FETs or 136.5 Equivalent Gates |

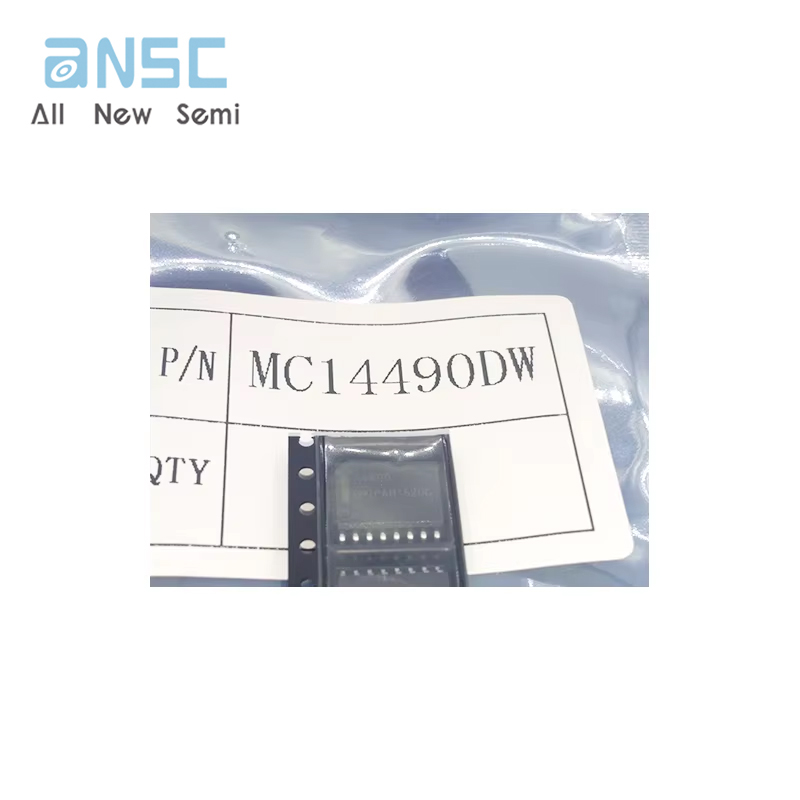

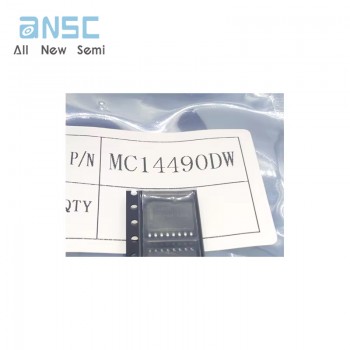

Actual image of the product

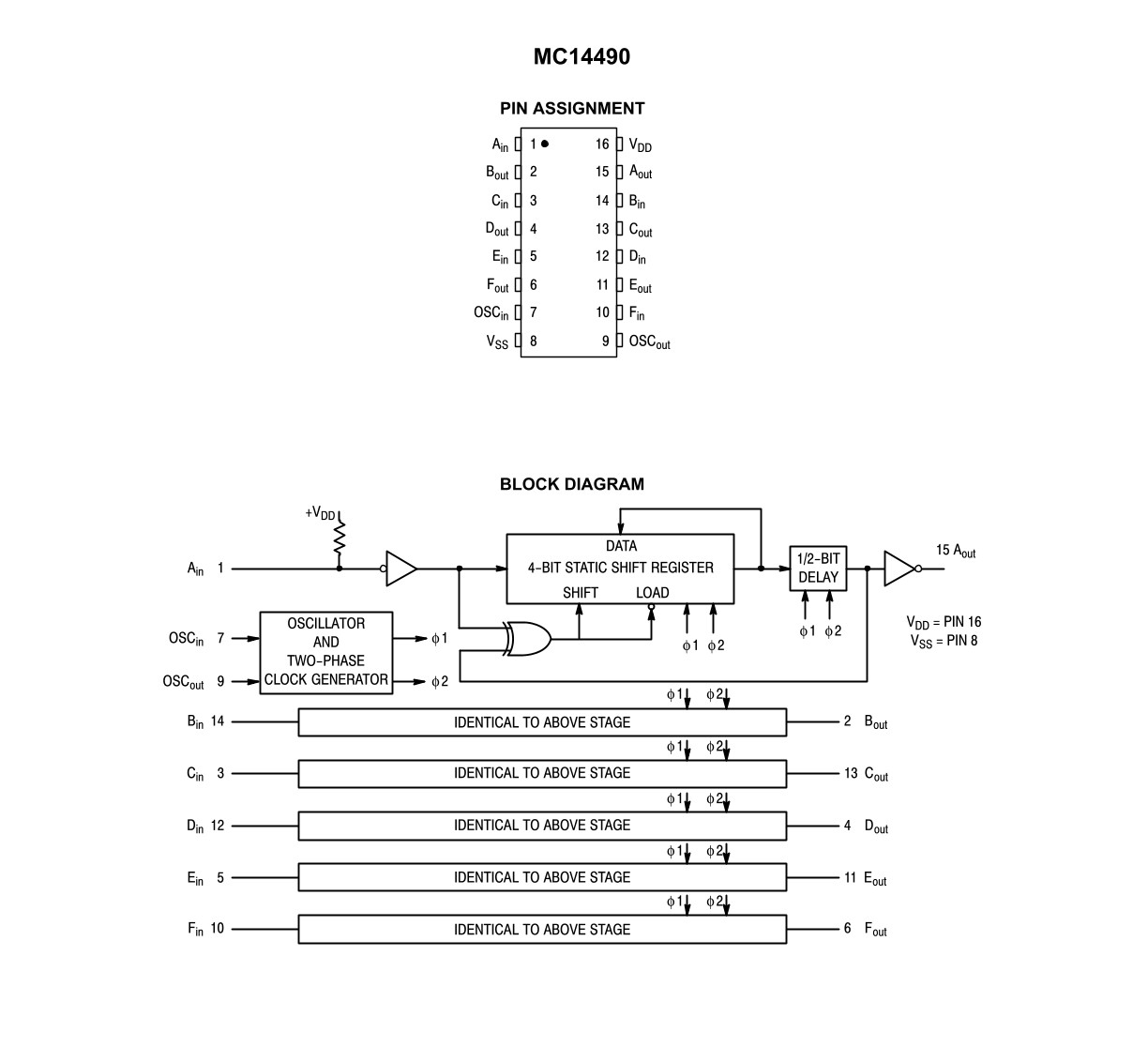

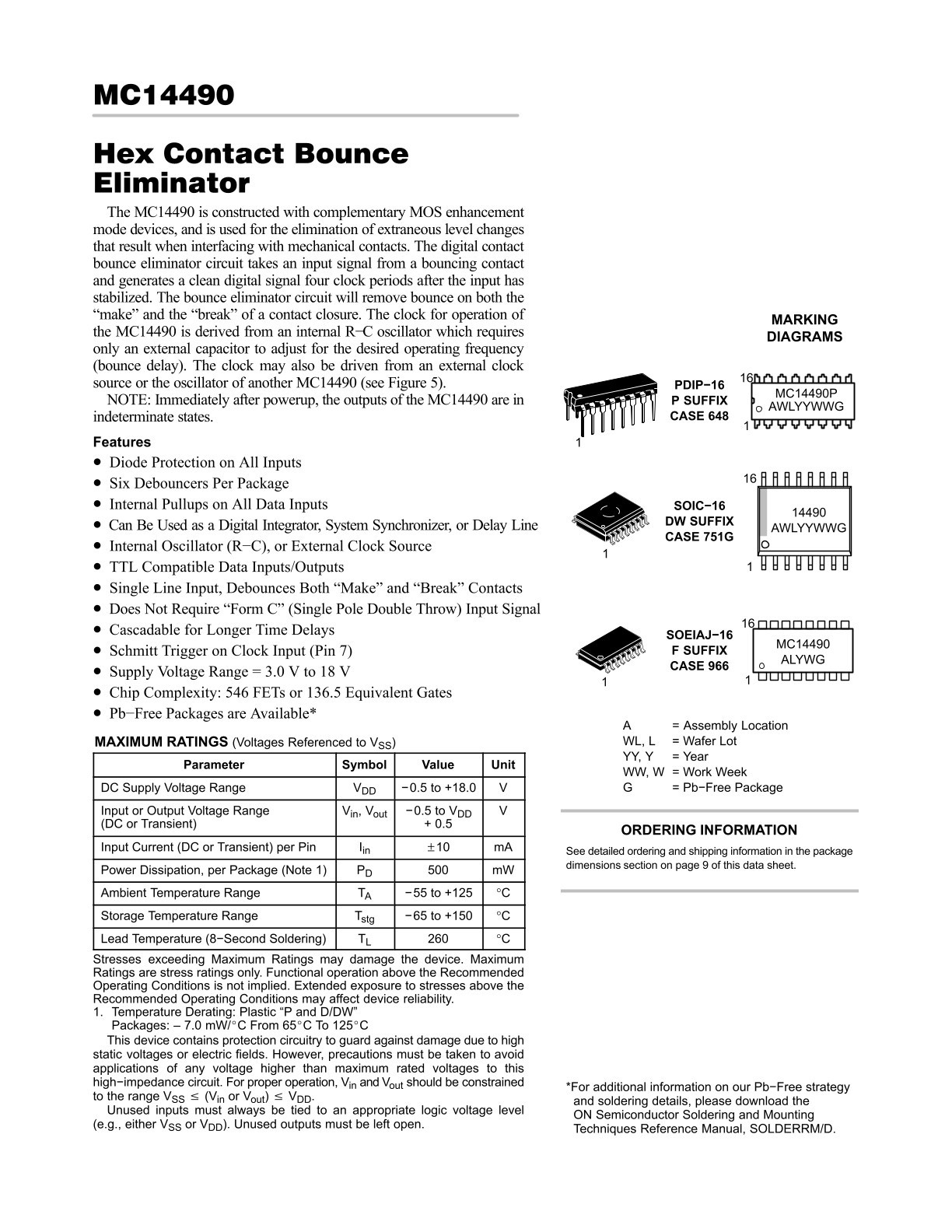

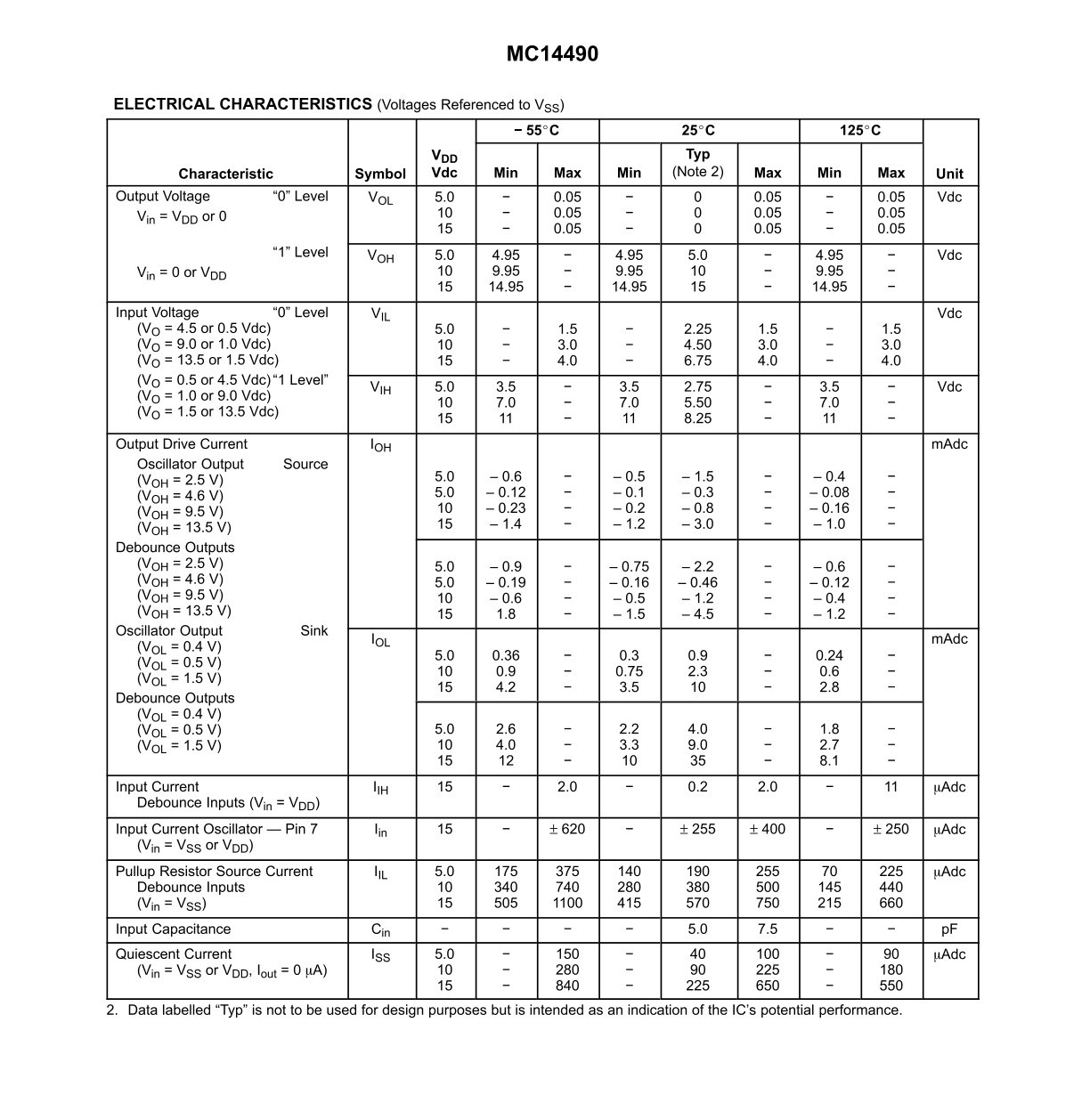

Product datasheet
For more information, please download
