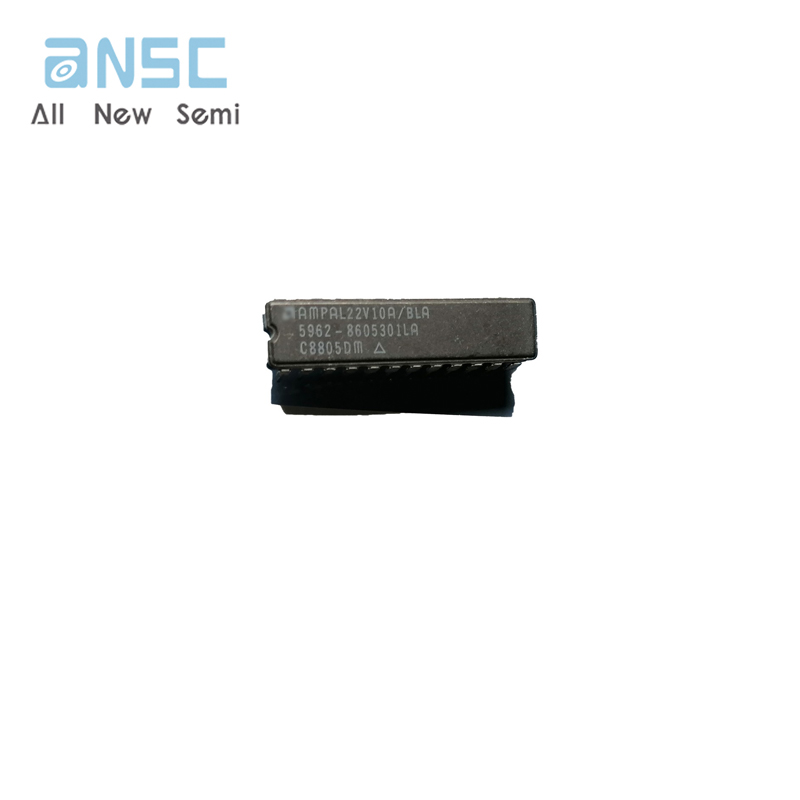

Hot sale Original 5962-8605301LA Programmable Logic OT PLD 30ns PAL-Type TTL CDIP24 0.250 X 1.250 INCH
Manufacturer Product Number
5962-8605301LA
Description
5962-8605301LA Programmable Logic OT PLD 30ns PAL-Type TTL CDIP24 0.250 X 1.250 INCH SKINNY CERAMIC DIP-24
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Overview
The PLD has dedicated inputs for 11.Product terms are counted by 132.A number of 10 outputs are available.On the board, there are 24 pins used for specific purposes.In addition to VARIABLE PRODUCT TERMS; 10 MACROCELLS; REGISTER PRELOAD; POWER-UP RESET, there are other features as well.
Product Applications
5962-8605301LA PLDs (Programmable Logic Device) applications.
-
Industrial
-
Various types of power-limited applications
-
Power-limited applications
-
High-speed Devices
-
Electrically Devices
-
Programmable Logic Devices
-
High performance applications
-
Low power applications
-
Battery operated devices
-
High-end communication equipment
Product Description
| Type# | Description |
| ANSC PART# | ANSC- 5962-8605301LA |
| Part Package Code | DIP |
| Package Description | 0.250 X 1.250 Inch, Skinny, Ceramic, Dip-24 |
| Pin Count | 24 |
| Additional Feature | Variable Product Terms; 10 Macrocells; Register Preload; Power-Up Reset |
| Architecture | Pal-Type |
| Clock Frequency-Max | 22 Mhz |
| JESD-30 Code | R-GDIP-T24 |
| JESD-609 Code | e0 |
| Length | 31.9405 Mm |
| Number of Dedicated Inputs | 11 |
| Number of I/O Lines | 10 |
| Number of Inputs | 22 |
| Number of Outputs | 10 |
| Number of Product Terms | 132 |
| Number of Terminals | 24 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Organization | 11 Dedicated Inputs, 10 I/O |
| Output Function | Macrocell |
| Package Body Material | Ceramic, Glass-Sealed |
| Package Code | DIP |
| Package Equivalence Code | DIP24,.3 |
| Package Shape | Rectangular |
| Package Style | In-Line |
| Programmable Logic Type | Ot Pld |
| Propagation Delay | 30 Ns |
| Qualification Status | Not Qualified |
| Screening Level | 38535q/M;38534h;883b |
| Seated Height-Max | 5.08 Mm |
| Supply Voltage-Max | 5.5 V |
| Supply Voltage-Min | 4.5 V |
| Supply Voltage-Nom | 5 V |
| Surface Mount | No |
| Technology | Ttl |
| Temperature Grade | Military |
| Terminal Finish | Tin/Lead (Sn/Pb) - Hot Dipped |
| Terminal Form | Through-Hole |
| Terminal Pitch | 2.54 Mm |
| Terminal Position | Dual |
| Width | 7.62 Mm |
