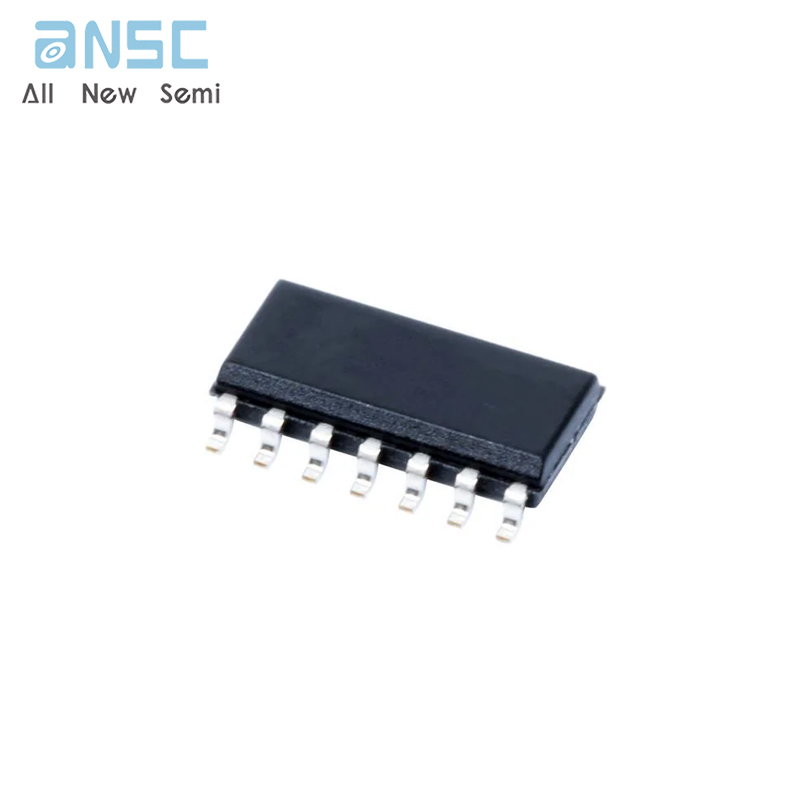

CD74AC74M DUAL POSITIVE-EDGE TRIGGERED D-TYPE FLIP-FLOPS WITH CLEAR AND PRESET SOP14 spot stock

Product Descriptions

The ’AC74 dual positive-edge-triggered devices are D-type flip-flops.

A low level at the preset (PRE) or clear (CLR) inputs sets or resets the outputs, regardless of the levels of the other inputs. When PRE and CLR are inactive (high), data at the data (D) input meeting the setup time requirements is transferred to the outputs on the positive-going edge of the clock pulse. Clock triggering occurs at a voltage level and is not related directly to the rise time of the clock pulse. Following the hold-time interval, data at the D input can be changed without affecting the levels at the outputs.

Product Features

AC Types Feature 1.5-V to 5.5-V Operation and Balanced Noise Immunity at 30% of the

Supply

Speed of Bipolar F, AS, and S, With Significantly Reduced Power Consumption

Balanced Propagation Delays

±24-mA Output Drive Current

– Fanout to 15 F Devices

SCR-Latchup-Resistant CMOS Process and Circuit Design

Exceeds 2-kV ESD Protection Per MIL-STD-883, Method 3015

​

Product Specification

Product Photos

For more product information, please download the PDF
