Hot-selling and scarce 5M570ZT100I5N Complex Programmable Logic Devices IC QFP1000C spot stock

​Product Features

■ Low-cost, low-power, and non-volatile CPLD architecture

■ Instant-on (0.5 ms or less) configuration time

■ Standby current as low as 25 µA and fast power-down/reset operation

■ Fast propagation delay and clock-to-output times

■ Internal oscillator

■ Emulated RSDS output support with a data rate of up to 200 Mbps

■ Emulated LVDS output support with a data rate of up to 304 Mbps

■ Four global clocks with two clocks available per logic array block (LAB)

■ User flash memory block up to 8 Kbits for non-volatile storage with up to 1000 read/write cycles

■ Single 1.8-V external supply for device core

■ MultiVolt I/O interface supporting 3.3-V, 2.5-V, 1.8-V, 1.5-V, and 1.2-V logic levels

■ Bus-friendly architecture including programmable slew rate, drive strength, bus-hold, and programmable pull-up resistors

■ Schmitt triggers enabling noise tolerant inputs (programmable per pin)

Product Specification

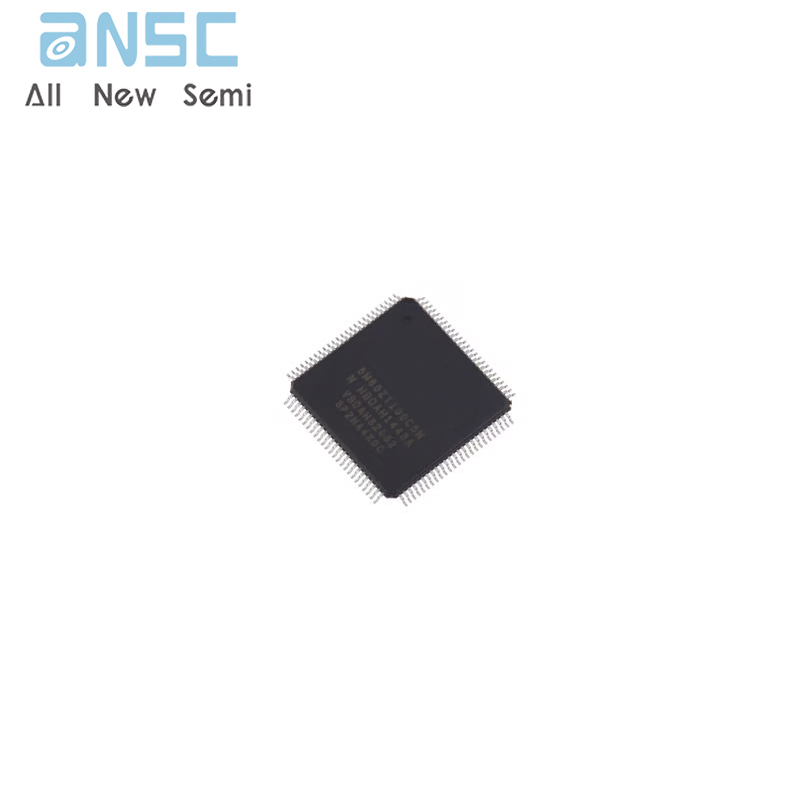

Product Photos

For more product information, please download the PDF
