Hot-selling and scarce MC74AC02N QUAD 2-INPUT NOR GATE DIP14 spot stock
Manufacturer Product Number
MC74AC02N
Description
MC74AC02N QUAD 2-INPUT NOR GATE DIP14 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
• Outputs Source/Sink 24 mA
• ′ACT02 Has TTL Compatible Inputs
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-MC74AC02N |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 74AC |
| Packaging | Tube |
| Part Status | Obsolete |
| Logic Type | NOR Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 4 µA |
| Current - Output High, Low | 24mA, 24mA |
| Input Logic Level - Low | 0.9V ~ 1.65V |
| Input Logic Level - High | 2.1V ~ 3.85V |
| Max Propagation Delay @ V, Max CL | 6.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-PDIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Base Product Number | 74AC02 |

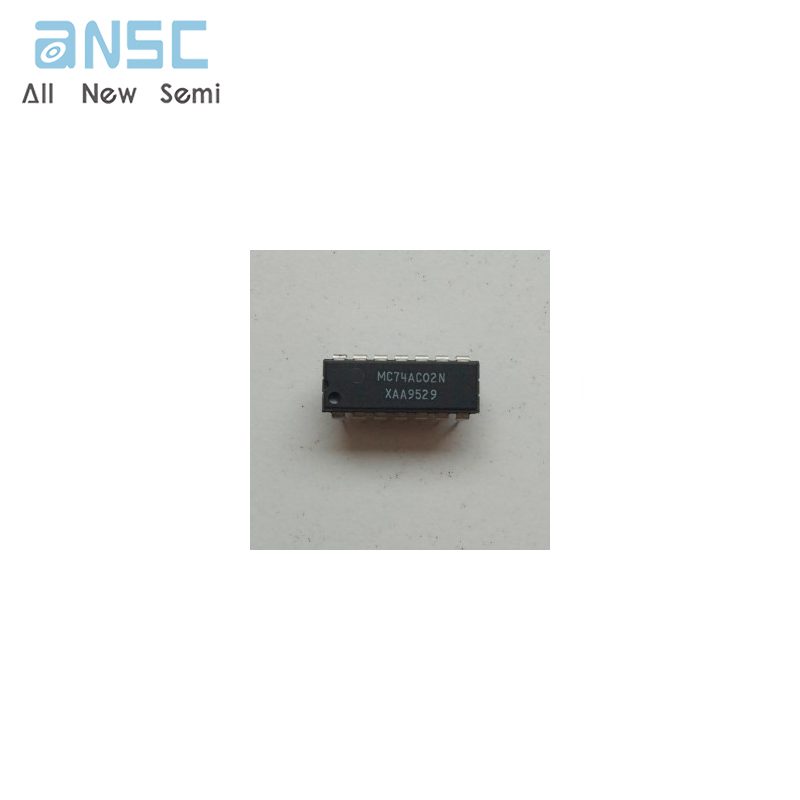

Product Photos
For more product information, please download the PDF
