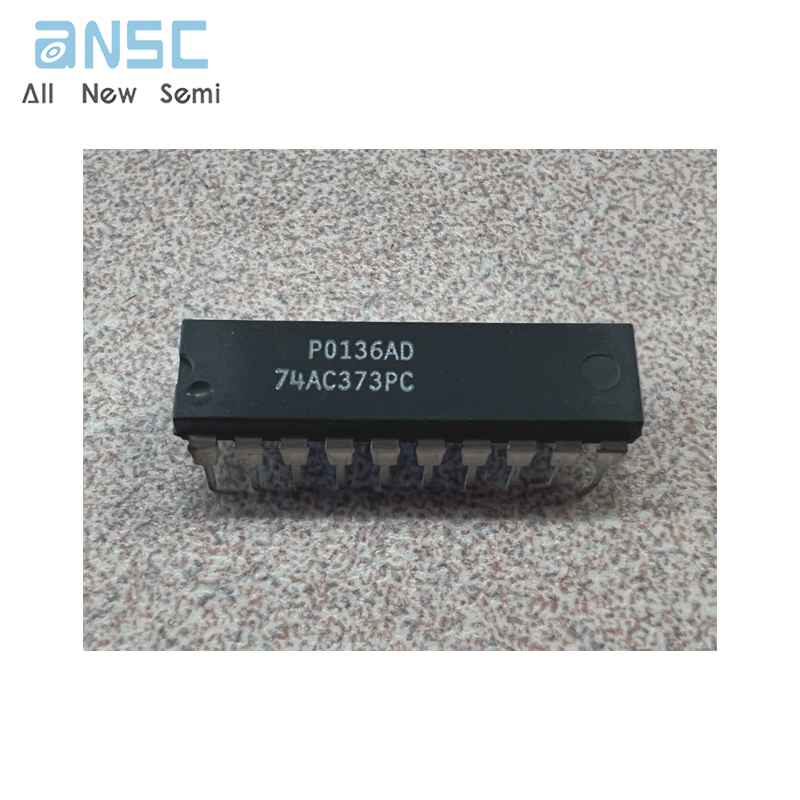

Hot-selling and scarce 74AC373PC Octal Transparent Latch with 3-STATE Outputs DIP20 spot stock
Manufacturer Product Number
74AC373PC
Description
74AC373PC Octal Transparent Latch with 3-STATE Outputs DIP20 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The AC/ACT373 consists of eight latches with 3-STATE outputs for bus organized system applications. The flipflops appear transparent to the data when Latch Enable (LE) is HIGH. When LE is LOW, the data that meets the setup time is latched. Data appears on the bus when the Output Enable (OE) is LOW. When OE is HIGH, the bus output is in the high impedance state.
Product Features
■ ICC and IOZ reduced by 50%
■ Eight latches in a single package
■ 3-STATE outputs for bus interfacing
■ Outputs source/sink 24mA
■ ACT373 has TTL-compatible inputs
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-74AC373PC |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Latches | |
| Mfr | - |
| Series | 74AC |
| Packaging | Tube |
| Part Status | Obsolete |
| Logic Type | D-Type Transparent Latch |
| Circuit | 0.338888889 |
| Output Type | Tri-State |
| Voltage - Supply | 2V ~ 6V |
| Independent Circuits | 1 |
| Delay Time - Propagation | 7ns |
| Current - Output High, Low | 24mA, 24mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP |
| Base Product Number | 74AC373 |
Product Photos
For more product information, please download the PDF
