Professional supply Integrated circuit SN5402J NOR Gate 4-Element 2-IN Bipolar 14-Pin CDIP Tube

Manufacturer Product Number

SN5402J

Description

Logic Circuit, Quad 2-Input NOR, STD-TTL, 14 Pin, Ceramic, DIP

Package Condition

TUBE

Datasheet

SN5402J

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Descriptions

These devices contain four independent 2-input-NOR gates.
The SN5402, SN54LS02, and SN54S02 are characterized for operation over the full military temperature range of -55°C to 125°C. The SN7402, SN74LS02, and SN74S02 are characterized for operation from 0°C to 70°C.

Product Features

Package Options Include Plastic “Small Outline" Packages, Ceramic Chip Carriers and Flat Packages, and Plastic and Ceramic DIPs
Dependable Texas Instruments Quality and Reliability

Specifications

Attribute	Attribute value
ANSM-Part#	ANSM-SN5402J
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Logic Family	TTL
Logic Function	NOR
Number of Elements per Chip	4
Number of Element Inputs	2-IN
Number of Output Enables per Element	0
Number of Selection Inputs per Element	0
Number of Element Outputs	1
Maximum Propagation Delay Time @ Maximum CL (ns)	22@5V
Absolute Propagation Delay Time (ns)	22
Process Technology	Bipolar
Output Type	Push-Pull
Maximum Low Level Output Current (mA)	16
Maximum High Level Output Current (mA)	-0.4
Minimum Operating Supply Voltage (V)	4.5
Typical Operating Supply Voltage (V)	5
Maximum Operating Supply Voltage (V)	5.5
Propagation Delay Test Condition (pF)	15
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	125
Supplier Temperature Grade	Military
Packaging	Tube
Mounting	Through Hole
Package Height	3.56(Max)
Package Width	7.19(Max)
Package Length	19.94(Max)
PCB changed	14
Standard Package Name	DIP
Supplier Package	CDIP
Pin Count	14
Lead Shape	Through Hole

Actual product photos

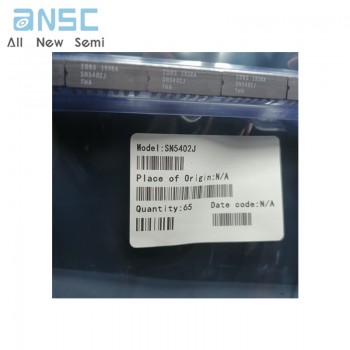

SN5402J
