Spot sales of XC9536XL-5VQG44C Complex Programmable Logic Devices IC 44VQFP

Product Descriptions

The XC9536XL is a 3.3V CPLD targeted for high-performance, low-voltage applications in leading-edge communications and computing systems. It is comprised of two 54V18 Function Blocks, providing 800 usable gates with propagation delays of 5 ns.

Product Features

• 5 ns pin-to-pin logic delays

• System frequency up to 178 MHz

• 36 macrocells with 800 usable gates

• Available in small footprint packages

- 44-pin PLCC (34 user I/O pins)

- 44-pin VQFP (34 user I/O pins)

- 48-pin CSP (36 user I/O pins)

- 64-pin VQFP (36 user I/O pins)

- Pb-free available for all packages

• Optimized for high-performance 3.3V systems

- Low power operation

- 5V tolerant I/O pins accept 5 V, 3.3V, and 2.5V signals

- 3.3V or 2.5V output capability

- Advanced 0.35 micron feature size CMOS Fast FLASH™ technology

• Advanced system features

- In-system programmable

- Superior pin-locking and routability with Fast CONNECT™ II switch matrix

- Extra wide 54-input Function Blocks

- Up to 90 product-terms per macrocell with individual product-term allocation

- Local clock inversion with three global and one product-term clocks

- Individual output enable per output pin

- Input hysteresis on all user and boundary-scan pin inputs

- Bus-hold circuitry on all user pin inputs

- Full IEEE Standard 1149.1 boundary-scan (JTAG)

• Fast concurrent programming

• Slew rate control on individual outputs

• Enhanced data security features

• Excellent quality and reliability

- Endurance exceeding 10,000 program/erase cycles

- 20 year data retention

- ESD protection exceeding 2,000V

• Pin-compatible with 5V-core XC9536 device in the 44-pin PLCC package and the 48-pin CSP package

WARNING: Programming temperature range of TA = 0° C to +70° C

Product Specifications

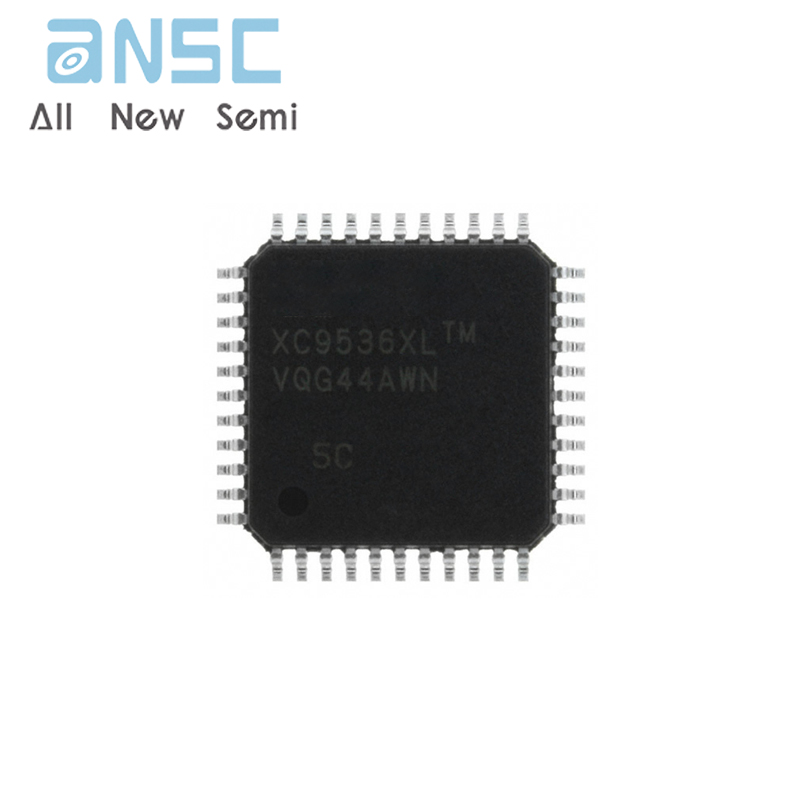

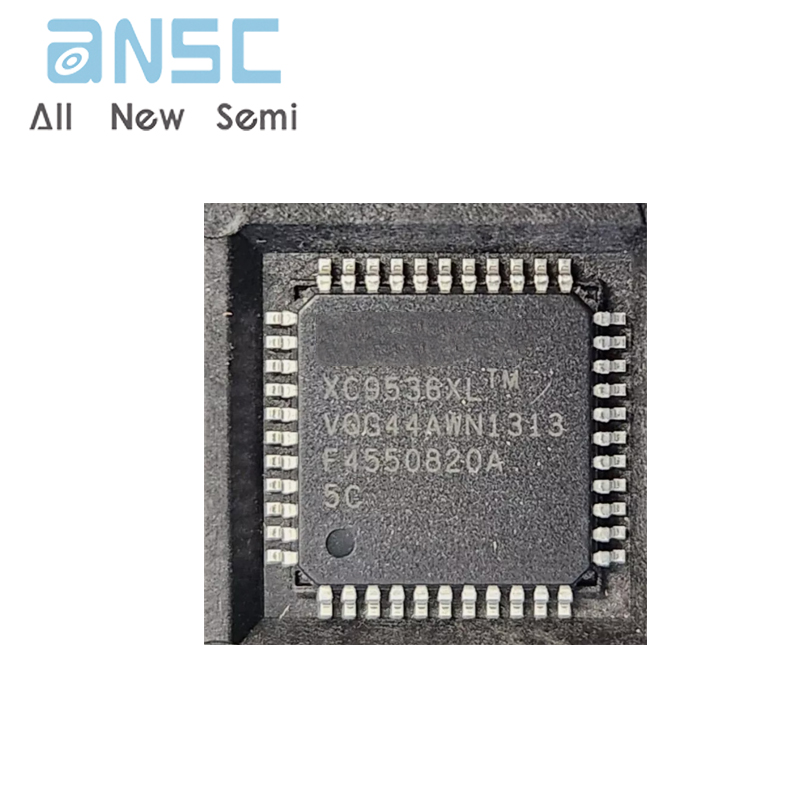

Product Photos

For more product information, please download the PDF
