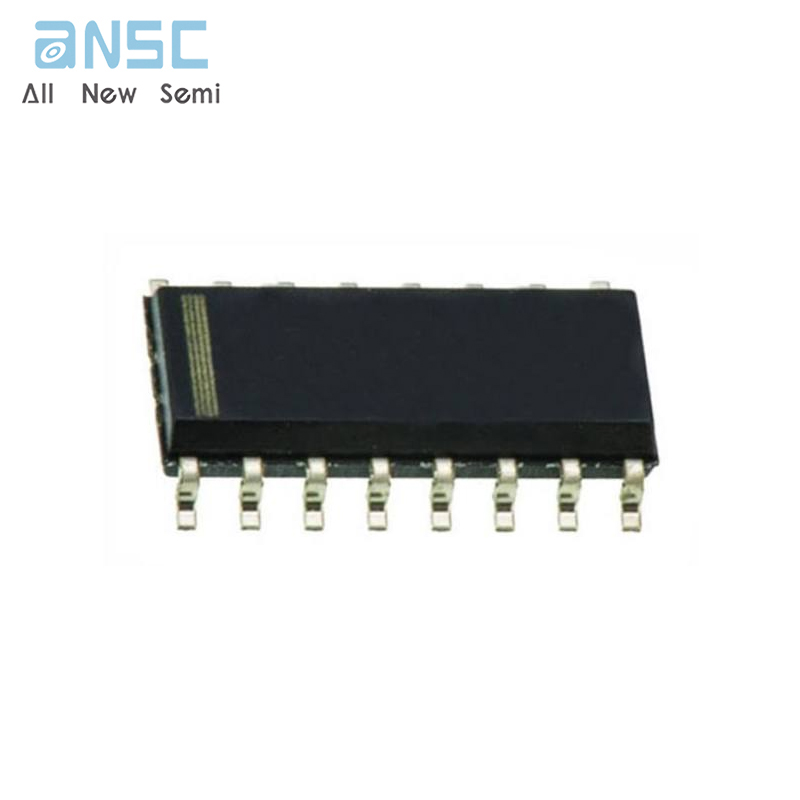

Hot-selling and scarce CD74HC4040M High-Speed CMOS Logic 12-Stage Binary Counter SOP16 spot stock
Manufacturer Product Number
CD74HC4040M
Description
CD74HC4040M High-Speed CMOS Logic 12-Stage Binary Counter SOP16 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The ’HC4040 and ’HCT4040 are 14-stage ripple-carry binary counters. All counter stages are master-slave flip- flops. The state of the stage advances one count on the negative clock transition of each input pulse; a high voltage level on the MR line resets all counters to their zero state. All inputs and outputs are buffered.
Product Features
• Fully Static Operation
• Buffered Inputs
• Common Reset
• Negative Edge Pulsing
• Fanout (Over Temperature Range)
- Standard Outputs . . . . . . . . . . . . . . . 10 LSTTL Loads
- Bus Driver Outputs . . . . . . . . . . . . . 15 LSTTL Loads
• Wide Operating Temperature Range . . . -55oC to 125oC
• Balanced Propagation Delay and Transition Times
• Significant Power Reduction Compared to LSTTL Logic ICs
• HC Types
- 2V to 6V Operation
- High Noise Immunity: NIL = 30%, NIH = 30% of VCC at VCC = 5V
• HCT Types
- 4.5V to 5.5V Operation
- Direct LSTTL Input Logic Compatibility, VIL= 0.8V (Max), VIH = 2V (Min)
- CMOS Input Compatibility, Il ≤ 1µA at VOL, VOH
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-CD74HC4040M |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Counters, Dividers | |
| Manufacturer | - |
| Series | 74HC |
| Packaging | Tube |
| Part Status | Obsolete |
| Logic Type | Binary Counter |
| Direction | Up |
| Number of Elements | 1 |
| Number of Bits per Element | 12 |
| Reset | Asynchronous |
| Count Rate | 35 MHz |
| Trigger Type | Negative Edge |
| Voltage - Supply | 2 V ~ 6 V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | 74HC4040 |
Product Photos
For more product information, please download the PDF
Other Products In The same category:
CD74HC4040M High-Speed CMOS Logic 12-Stage Binary Counter SOP16 spot stock
35In stock:
Can ship immediately
