Hot-selling and scarce MACH130-15JC-18JI High-Density EE CMOS Programmable Logic PLCC spot stock

Product Descriptions

The MACH130 is a member of the high-performance EE CMOS MACH 1 family. This device has approximately six times the logic macrocell capability of the popular PAL22V10 without loss of speed.

The MACH130 consists of four PAL blocks interconnected by a programmable switch matrix. The switch matrix connects the PAL blocks to each other and to all input pins, providing a high degree of connectivity between the fully-connected PAL blocks. This allows designs to be placed and routed efficiently.

The MACH130 macrocell provides either registered or combinatorial outputs with programmable polarity. If a registered configuration is chosen, the register can be configured as D-type or T-type to help reduce the number of product terms. The register type decision can be made by the designer or by the software. All macrocells can be connected to an I/O cell. If a buried macrocell is desired, the internal feedback path from the macrocell can be used, which frees up the I/O pin for use as an input.

Product Features

84 Pins

64 Macrocells

15 ns tPD Commercial

18 ns tPD Industrial

66.6 MHz fCNT

70 Inputs

64 Outputs

64 Flip-flops; 4 clock choices

4 “PAL26V16” Blocks

Pin-compatible with MACH131, MACH230,MACH231, MACH435

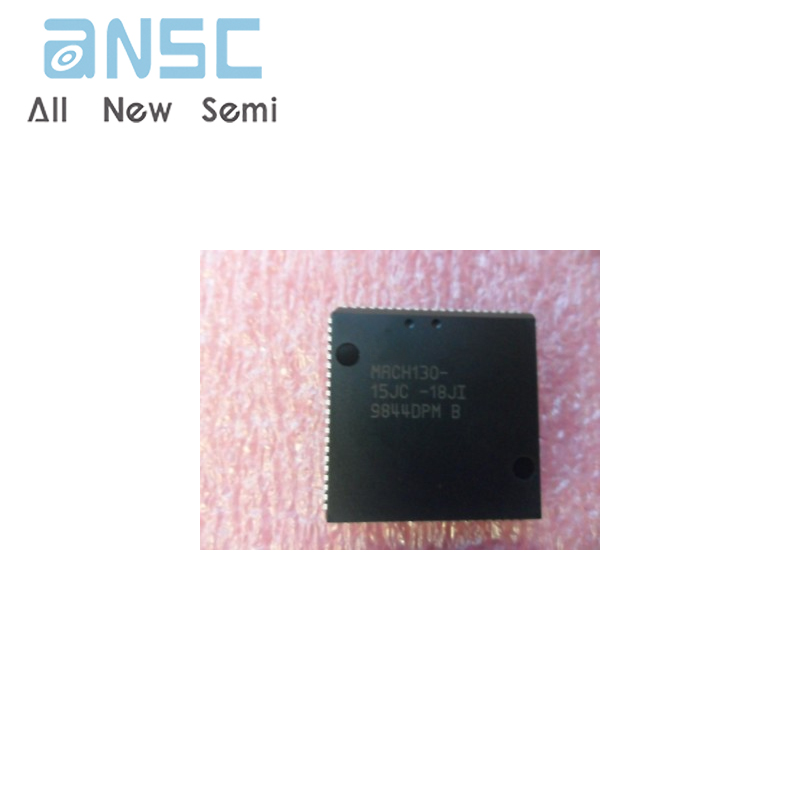

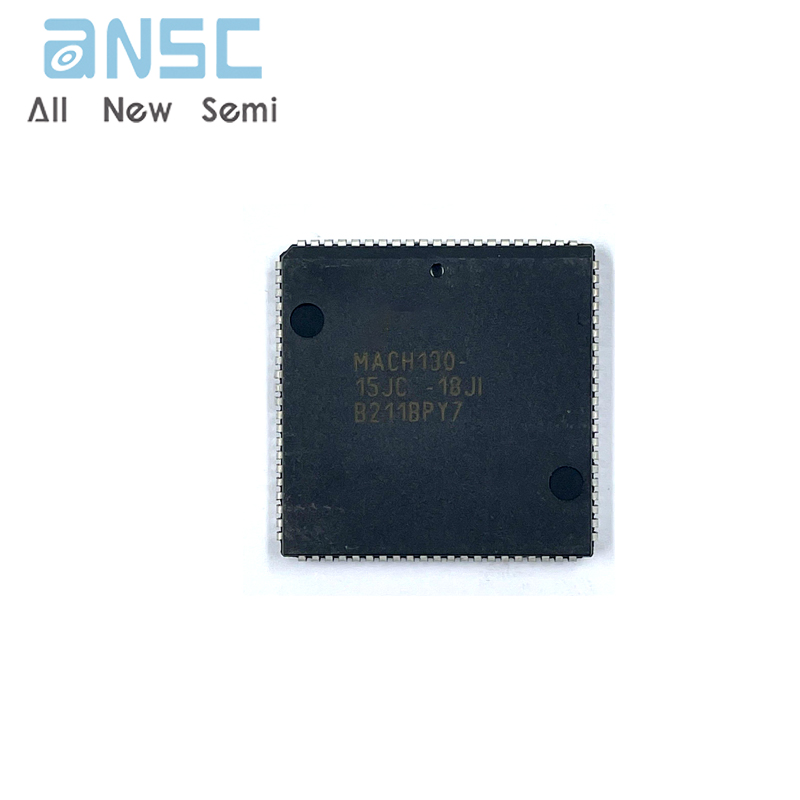

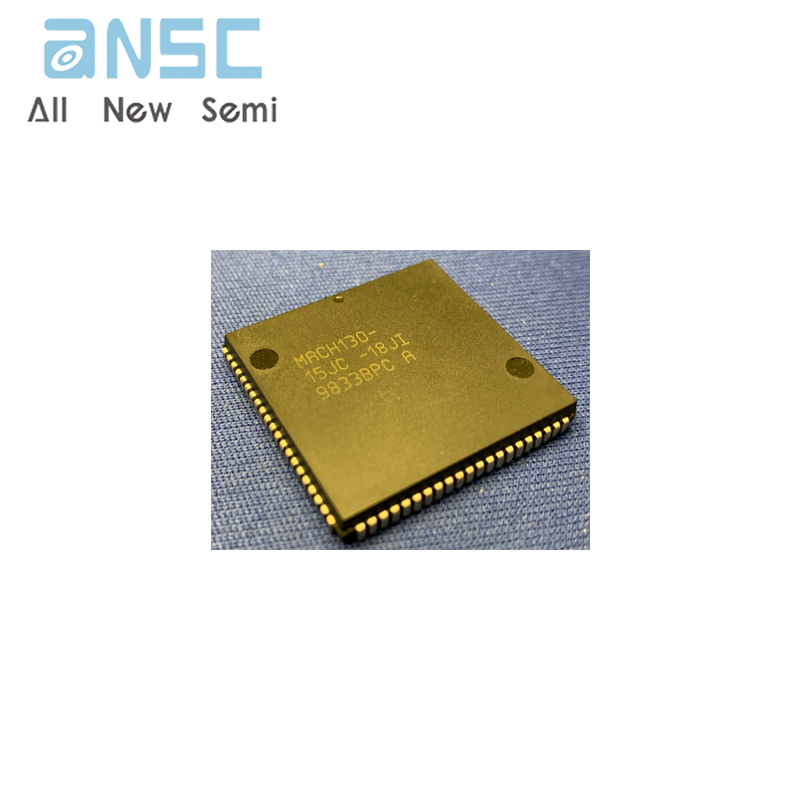

Product Photos

For more product information, please download the PDF
