Hot-selling and scarce SN74F38D QUADRUPLE 2-INPUT POSITIVE-NAND BUFFERS SOP14 spot stock
Manufacturer Product Number
SN74F38D
Description
SN74F38D QUADRUPLE 2-INPUT POSITIVE-NAND BUFFERS SOP14 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
These devices contain four independent 2-input NAND buffer gates with open-collector outputs. They perform the Boolean functions Y = A • B or Y = A + B in positive logic.
The open-collector outputs require pullup resistors to perform correctly. They may be connected to other open-collector outputs to implement active-low wired-OR or active-high wired-AND functions. Open-collector devices are often used to generate higher VOH levels.
The SN54F38 is characterized for operation over the full military temperature range of −55°C to 125°C. The SN74F38 is characterized for operation from 0°C to 70°C.
Product Features
• Package Options Include Plastic Small-Outline Packages, Ceramic Chip Carriers, and Standard Plastic and Ceramic 300-mil DIPs
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN74F38D |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 74F |
| Packaging | Tube |
| Part Status | Obsolete |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | Open Collector |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 7 mA |
| Current - Output High, Low | -, 64mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 12.5ns @ 5V, 50pF |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Base Product Number | 74F38 |

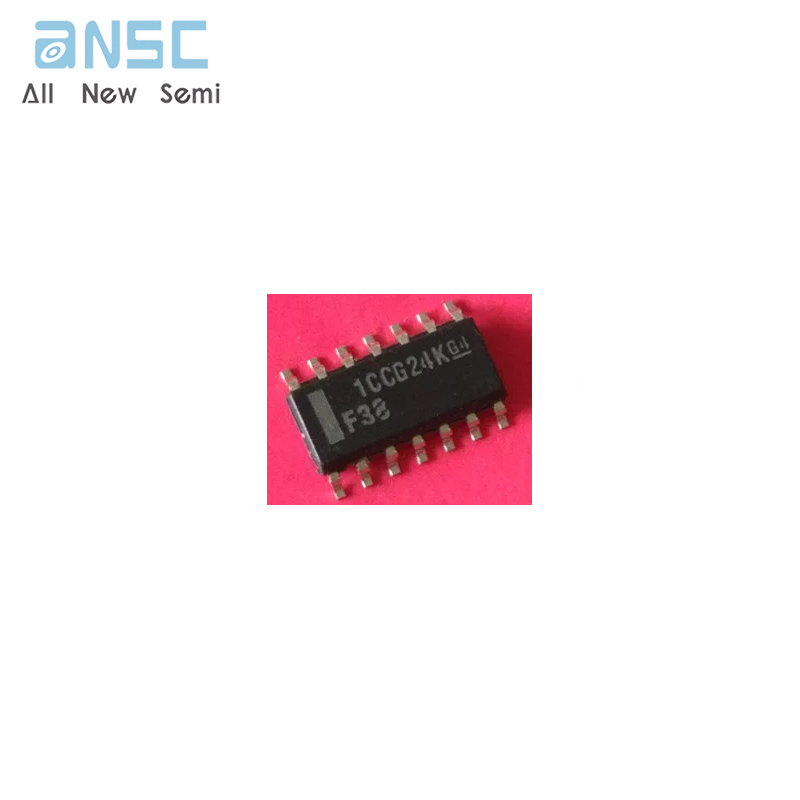

Product Photos
