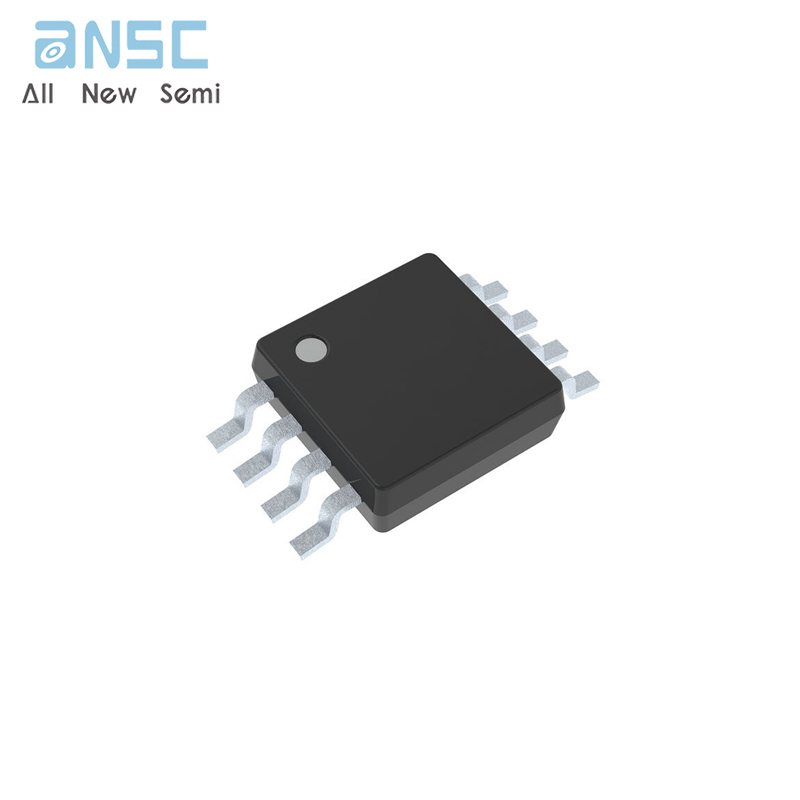

Hot-selling and scarce SN74TVC3306DCUR Dual Voltage Clamp SOP8 spot stock

Product Descriptions

The  SN74TVC3306  device  provides  three  parallel NMOS  pass  transistors  with  a  common  unbuffered gate. The low on-state resistance of the switch allows connections  to  be  made  with  minimal  propagation delay.

The device can be used as a dual switch, with the gates cascaded together to a reference transistor. The low-voltage side of each pass transistor is limited to a voltage set by the reference transistor. This is done to protect components with inputs that are sensitive to high-state voltage-level overshoots.

Product Features

•    Designed to be used in voltage-limiting applications

•   3.5-ω on-state connection between ports A and B

•    Flow-through pinout for ease of printed circuit board trace routing

•    Direct interface with GTL+ levels

•    Latch-up performance exceeds 100 mA per JESD 78, class II

•    ESD protection exceeds JESD 22:

–   2000-V Human-Body Model

–   200-V Machine Model

–   1000-V Charged-Device Model

Product Applications

•   Voltage level translation

•   Signal switching

•    Bus isolation

Product Specification

Product Photos

For more product information, please download the PDF
