Hot sale Original SN74LS05N IC INVERTER 6CH 1-INP 14DIP Inverter IC 6 Channel Open Collector 14-PDIP
Manufacturer Product Number
SN74LS05N
Description
SN74LS05N IC INVERTER 6CH 1-INP 14DIP Inverter IC 6 Channel Open Collector 14-PDIP
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Description: The SN74LS05N is a 14-pin DIP inverter IC, part of the 74LS family. This open-collector inverter is designed to operate with a supply voltage of 5V, making it suitable for a wide range of applications. The device features six inverting logic gates, each with a maximum output current of 8mA. Features: Open-collector output stage for easy interfacing with other logic circuits Six inverting logic gates with a maximum output current of 8mA Operating supply voltage of 5V Operating temperature range of 0°C to 70°C Propagation delay of 32ns Schmitt trigger input is not available RoHS3 compliant and lead-free Applications: Primary applications: Digital logic circuits, data processing systems, and computer peripherals Secondary applications: Automotive electronics, industrial control systems, and medical devices |
Product Description
|
Type |
Description |
|---|---|
| ANSC PART# | ANSC - SN74LS05N |
|
Category |
Integrated Circuits (ICs) Logic Gates and Inverters |
|
Mfr |
/ |
|
Series |
74LS |
|
Packaging |
Tube |
|
Part Status |
Active |
|
Logic Type |
Inverter |
|
Number of Circuits |
6 |
|
Number of Inputs |
1 |
|
Features |
Open Collector |
|
Voltage - Supply |
4.75V ~ 5.25V |
|
Current - Output High, Low |
-, 8mA |
|
Input Logic Level - Low |
0.8V |
|
Input Logic Level - High |
2V |
|
Max Propagation Delay @ V, Max CL |
32ns @ 5V, 15pF |
|
Operating Temperature |
0°C ~ 70°C |
|
Mounting Type |
Through Hole |
|
Supplier Device Package |
14-PDIP |
|
Package / Case |
14-DIP (0.300", 7.62mm) |
|
Base Product Number |
74LS05 |

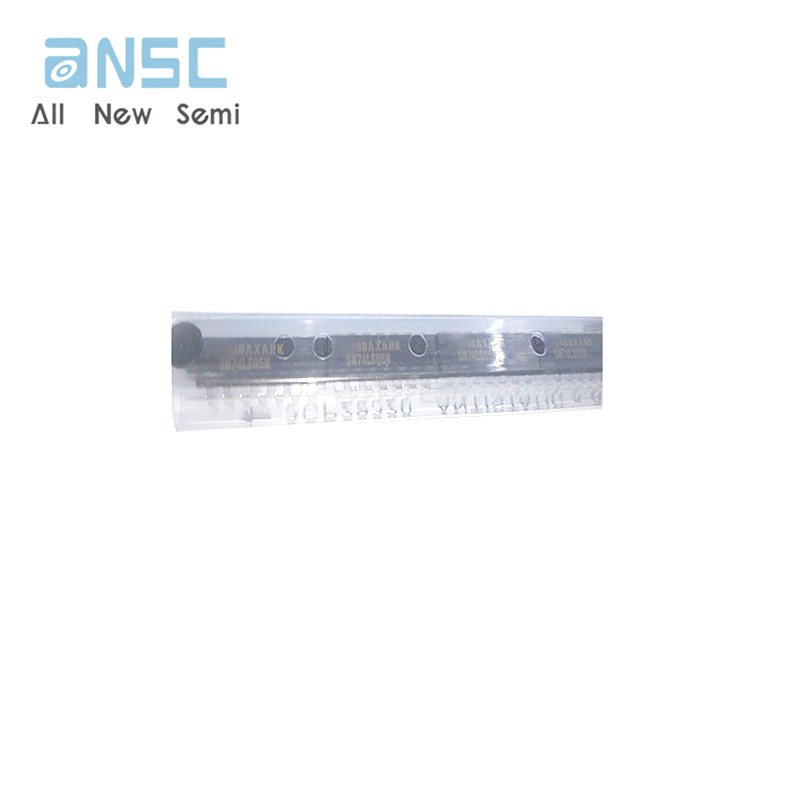

Actual image of the product

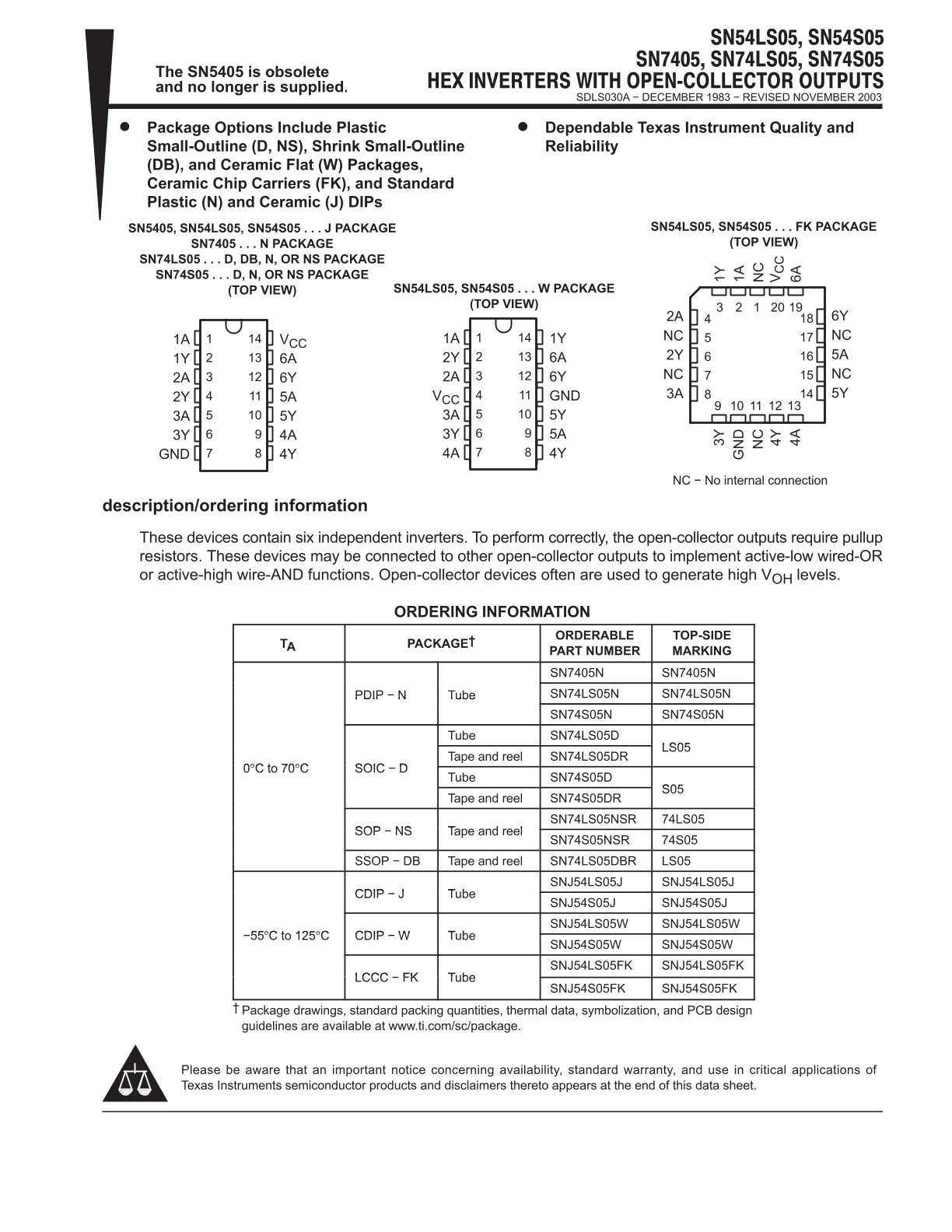

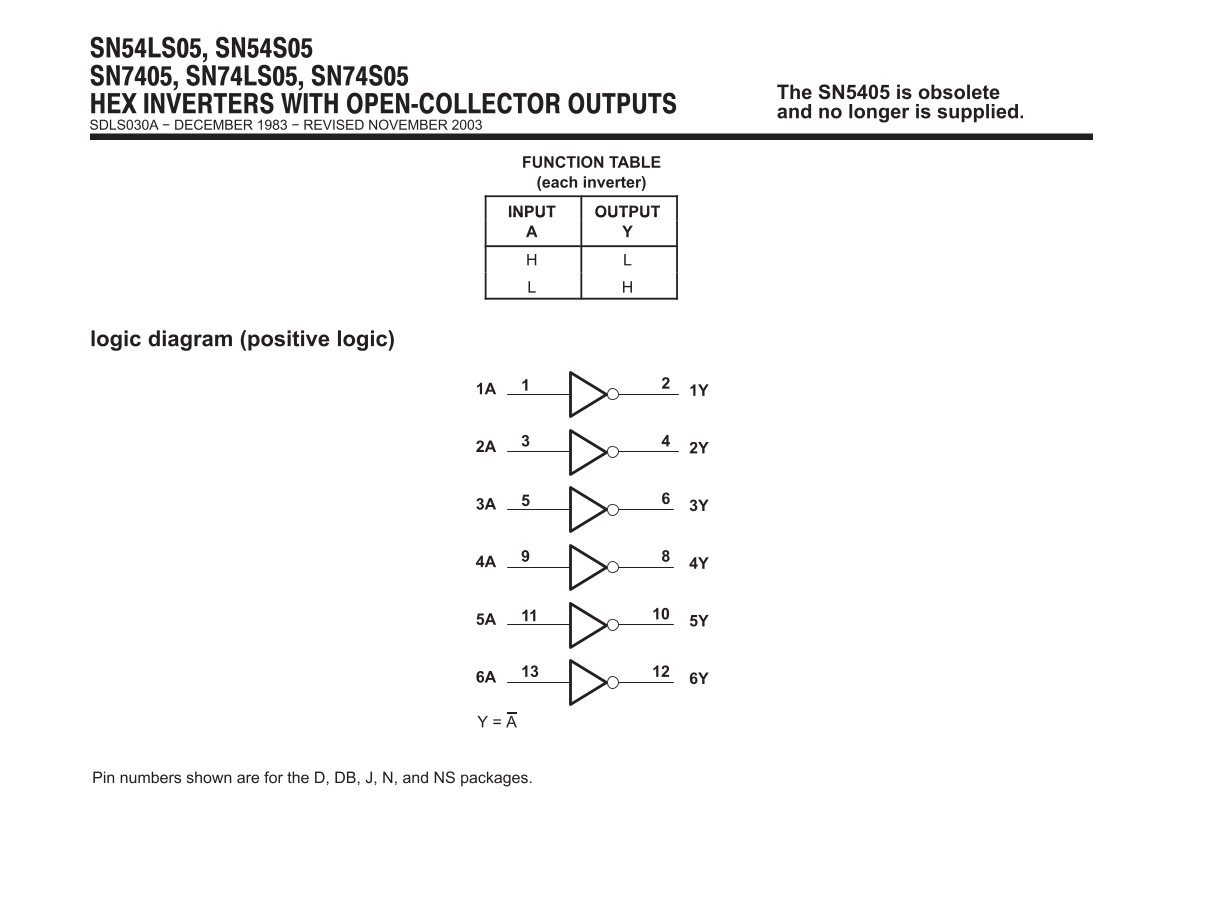

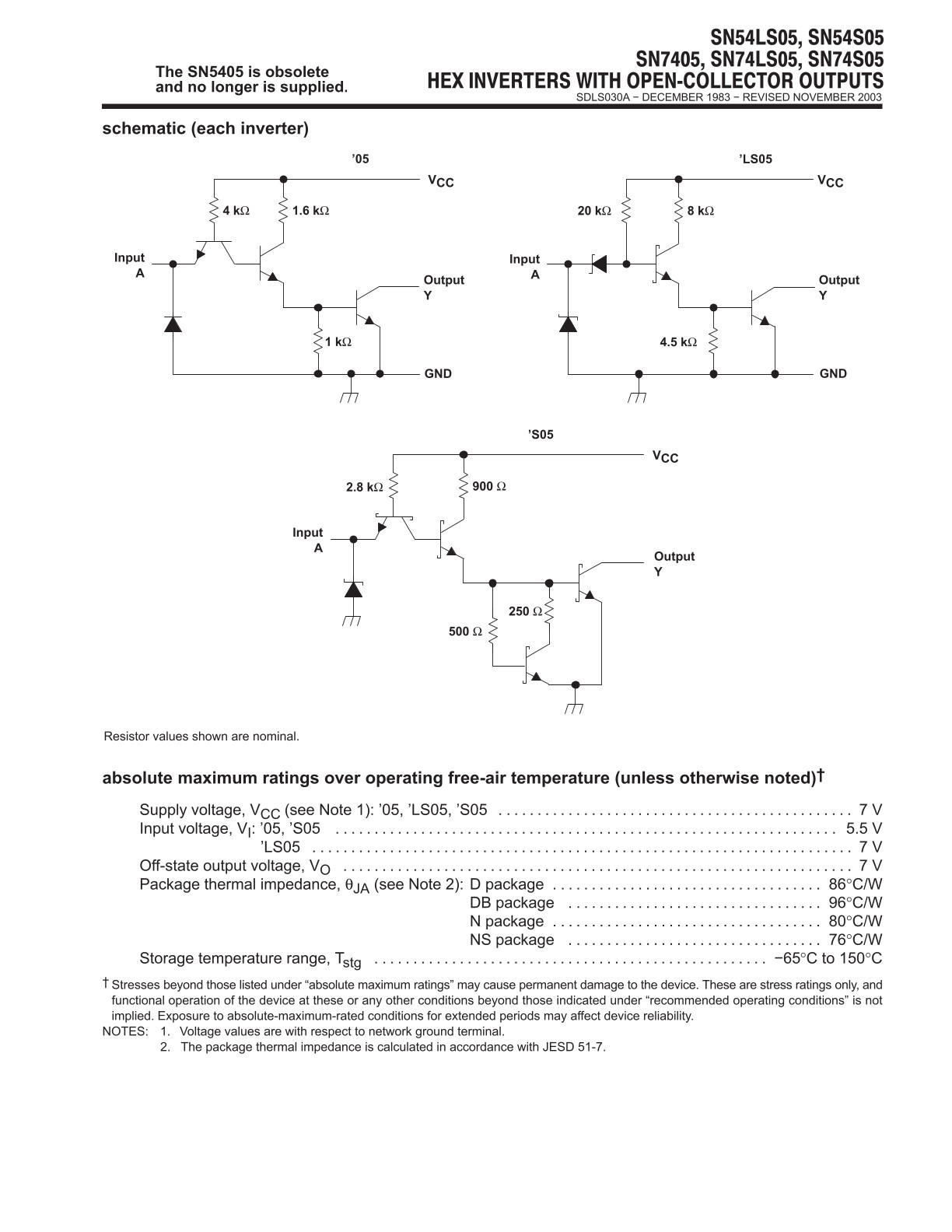

Product datasheet
