Hot-selling and scarce 74F11PC Triple 3-Input AND Gate DIP14 spot stock
Manufacturer Product Number
74F11PC
Description
74F11PC Triple 3-Input AND Gate DIP14 spot stock
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
This device contains three independent gates, each of which performs the logic AND function.
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-74F11PC |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | - |
| Series | 74F |
| Packaging | Tube |
| Part Status | Obsolete |
| Logic Type | AND Gate |
| Number of Circuits | 3 |
| Number of Inputs | 3 |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Output High, Low | 1mA, 20mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 5.6ns @ 5V, 50pF |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-DIP |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Base Product Number | 74F11 |

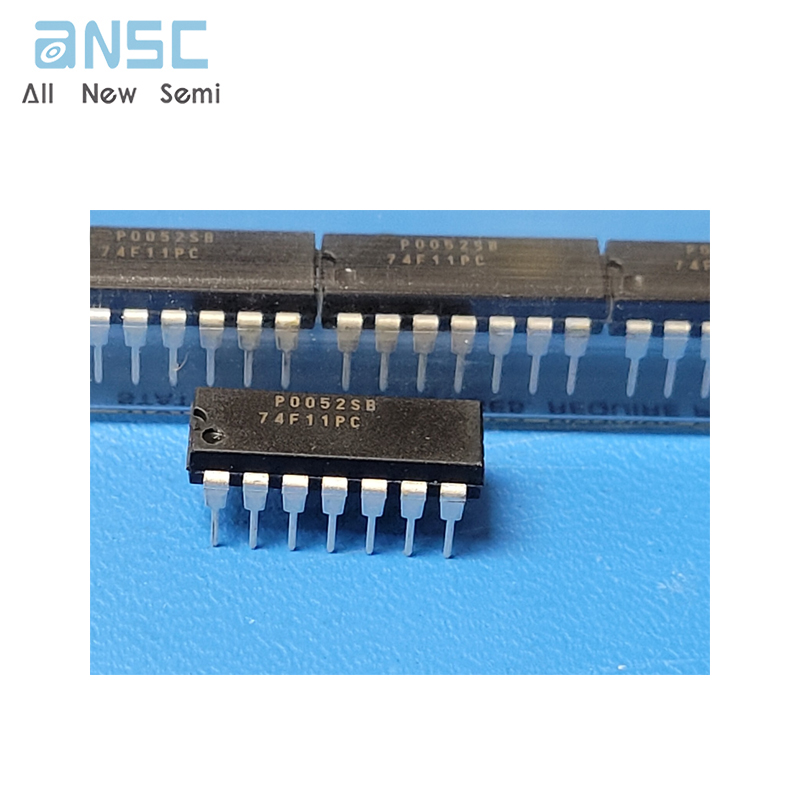

Product Photos
For more product information, please download the PDF
