Spot sales of EPF10K10QC208-3 Embedded Programmable Logic Device Family IC QFP208

Product Features

■ The industry’s first embedded programmable logic device (PLD) family, providing System-on-a-Programmable-Chip (SOPC) integration

– Embedded array for implementing megafunctions, such as efficient memory and specialized logic functions

– Logic array for general logic functions

■ High density

– 10,000 to 250,000 typical gates (see Tables 1 and 2)

– Up to 40,960 RAM bits; 2,048 bits per embedded array block (EAB), all of which can be used without reducing logic capacity

■ System-level features

– MultiVoltTM I/O interface support

– 5.0-V tolerant input pins in FLEX® 10KA devices

– Low power consumption (typical specification less than 0.5 mA in standby mode for most devices)

– FLEX 10K and FLEX 10KA devices support peripheral component interconnect Special Interest Group (PCI SIG) PCI Local Bus Specification, Revision 2.2

– FLEX 10KA devices include pull-up clamping diode, selectable

on a pin-by-pin basis for 3.3-V PCI compliance

– Select FLEX 10KA devices support 5.0-V PCI buses with eight or fewer loads

– Built-in Joint Test Action Group (JTAG) boundary-scan test (BST) circuitry compliant with IEEE Std. 1149.1-1990, available without consuming any device logic

Product Specifications

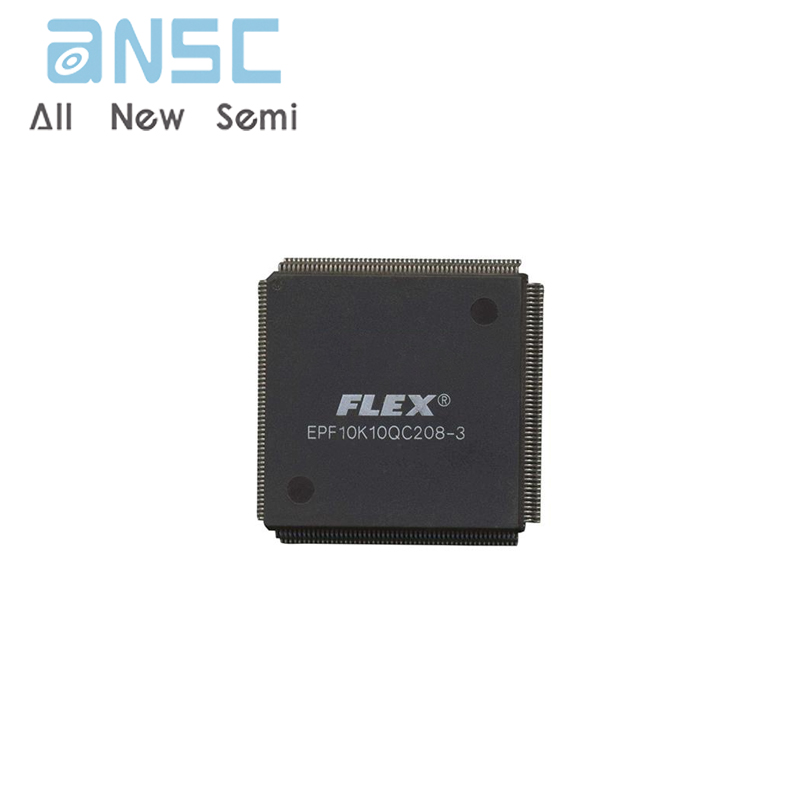

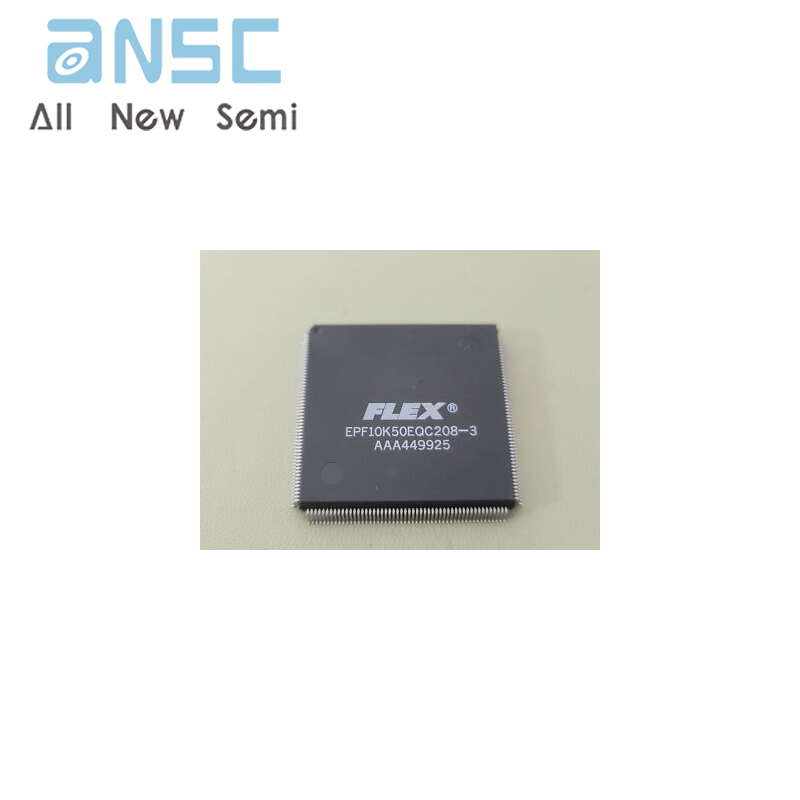

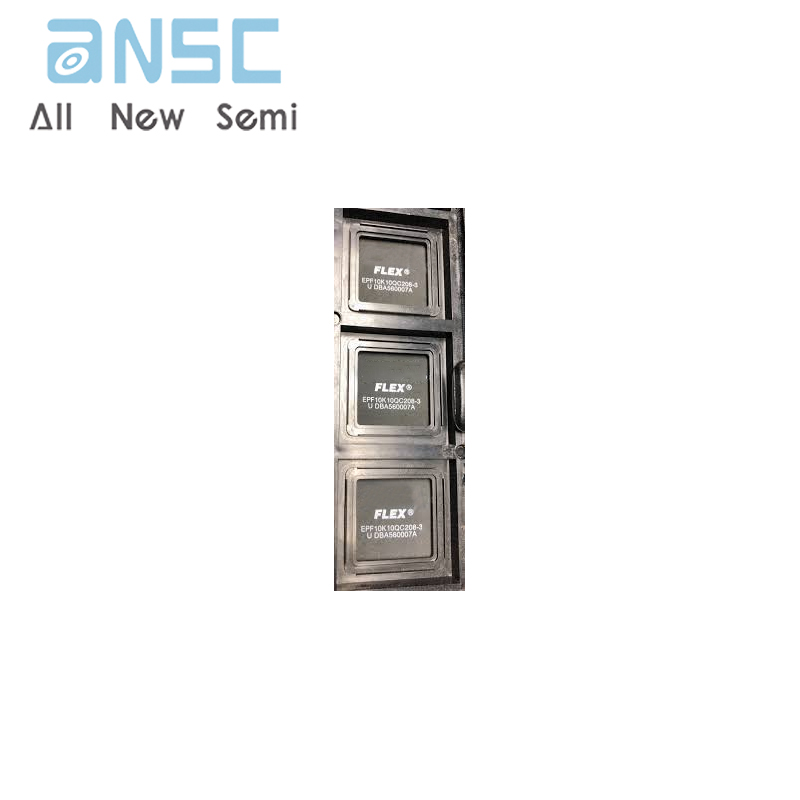

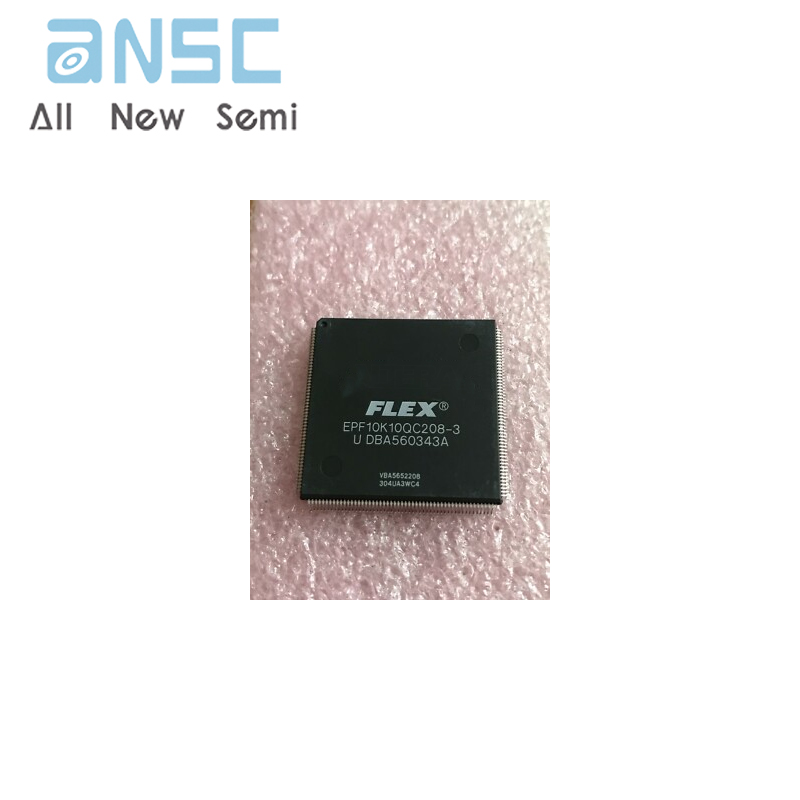

Product Photos

For more product information, please download the PDF
