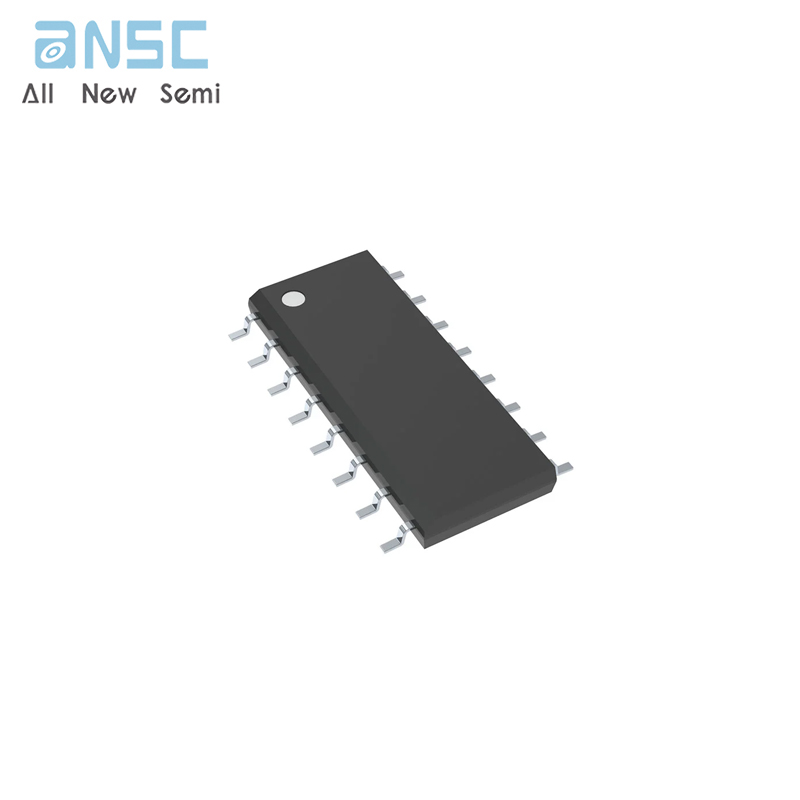

Hot-selling and scarce SN74ALS174D HEX/QUADRUPLE D-TYPE FLIP-FLOPS WITH CLEAR SOP16 spot stock
Manufacturer Product Number
SN74ALS174D
Description
SN74ALS174D HEX/QUADRUPLE D-TYPE FLIP-FLOPS WITH CLEAR SOP16 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
ALS174 and ’AS174 Contain Six Flip-Flops With Single-Rail Outputs
ALS175 and ’AS175B Contain Four Flip-Flops With Double-Rail Outputs
Buffered Clock and Direct-Clear Inputs
Applications Include:
– Buffer/Storage Registers
– Shift Registers
– Pattern Generators
Fully Buffered Outputs for Maximum Isolation From External Disturbances (’AS Only)
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-SN74ALS174D |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Flip Flops | |
| Manufacturer | - |
| Series | 74ALS |
| Packaging | Tube |
| Part Status | Obsolete |
| Function | Master Reset |
| Type | D-Type |
| Output Type | Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 6 |
| Max Propagation Delay @ V, Max CL | 17ns @ 5V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 400uA, 8mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 19 mA |
| Operating Temperature | 0℃ ~ 70℃ (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-SOIC |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Base Product Number | 74ALS174 |
Product Photos
For more product information, please download the PDF
Other Products In The same category:
SN74ALS174D HEX/QUADRUPLE D-TYPE FLIP-FLOPS WITH CLEAR SOP16 spot stock
63In stock:
Can ship immediately
