Hot sale Original SN74HC132N IC Logic Gates and Inverters NAND Gate IC 4 Channel Schmitt Trigger 14-PDIP 21ns @ 6V, 50pF 5.2mA

Product Description

The SN74HC132N is a 14-pin DIP (0.300, 7.62mm) through-hole packaged, 4-channel NAND gate logic IC . It belongs to the HC/UH family and features Schmitt Trigger inputs. This IC is designed to operate in a wide temperature range of -40°C to 85°C and is compatible with 5V supply voltage.

Product Features

· Schmitt Trigger inputs for improved noise immunity

· 4-channel NAND gate logic function

· Operating supply voltage range of 2V to 6V

· Maximum output current of 5.2mA

· Maximum propagation delay of 21ns at 6V and 50pF load capacitance

· Quiescent current of 2μA

· Radiation hardening not available

· RoHS3 compliant and lead-free

Product Applications

· Primary applications: Digital logic circuits, microprocessor interfaces,

and data transmission systems

· Secondary applications: Industrial control systems, automotive electronics,

and medical devices

Embedded Modules:

· This component is used in various embedded systems, including:

· Microcontroller-based systems

· Digital signal processing systems

· Embedded computer systems

Product Description

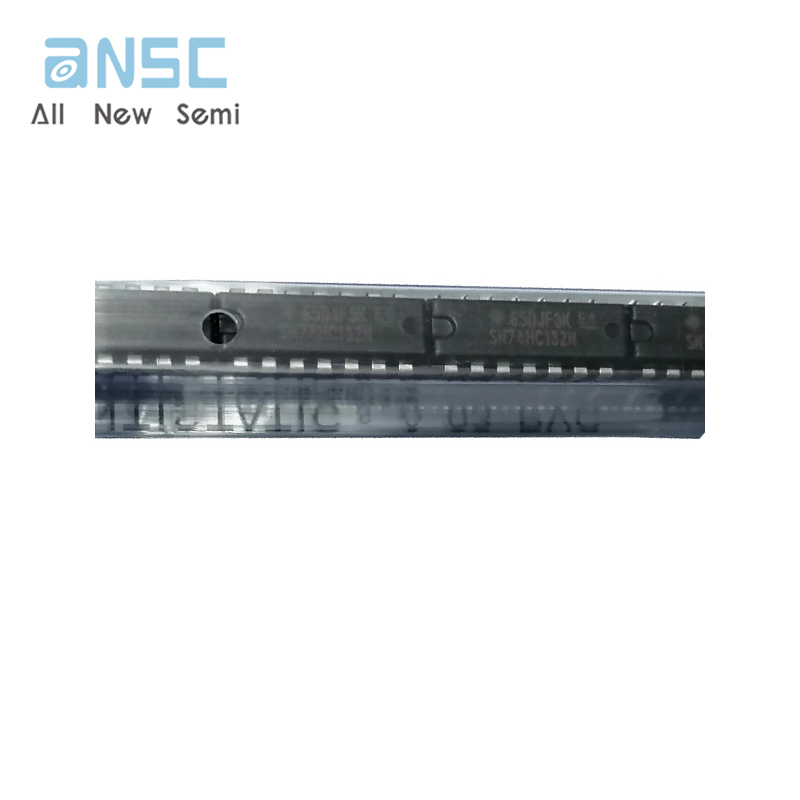

Actual image of the product

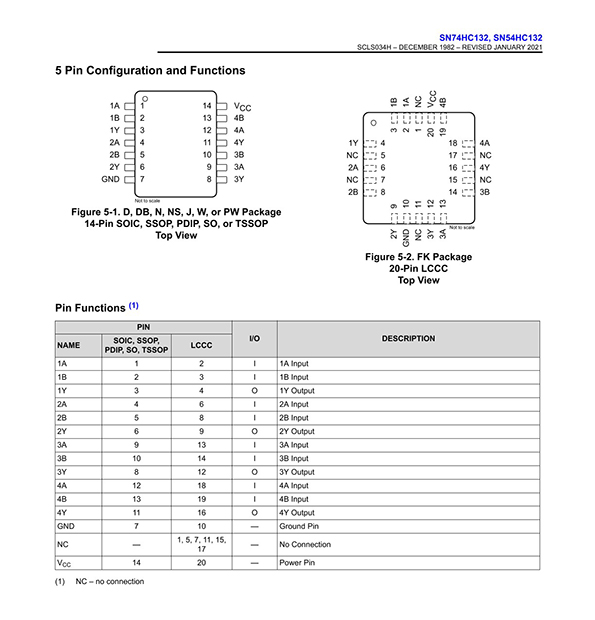

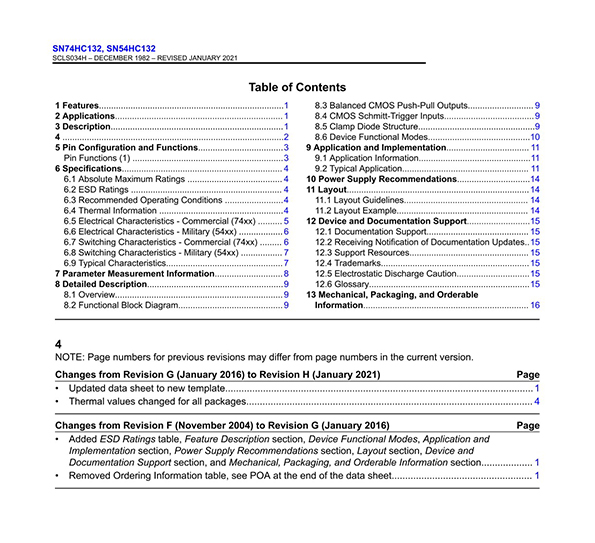

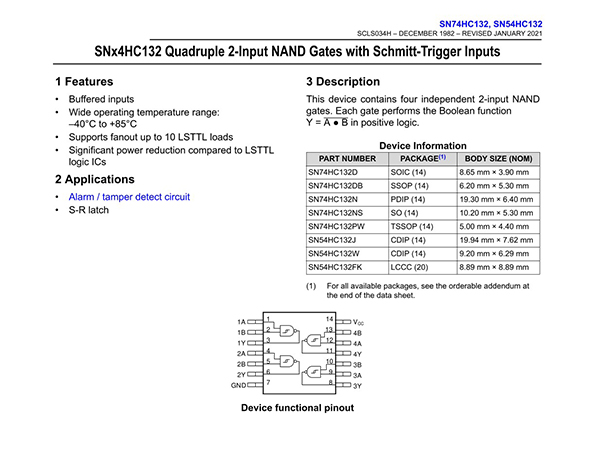

Product datasheet

For more information, please download

​
